The SCP-01 Series is a compact digital pressure controller designed for accurate pressure monitoring and intelligent control in industrial automation applications. Featuring a three-color dual-screen LED display, the controller provides clear real-time pressure readings and convenient parameter adjustment.
Product Series :
01: Universal Type Pressure ControllerSignal Output Type :

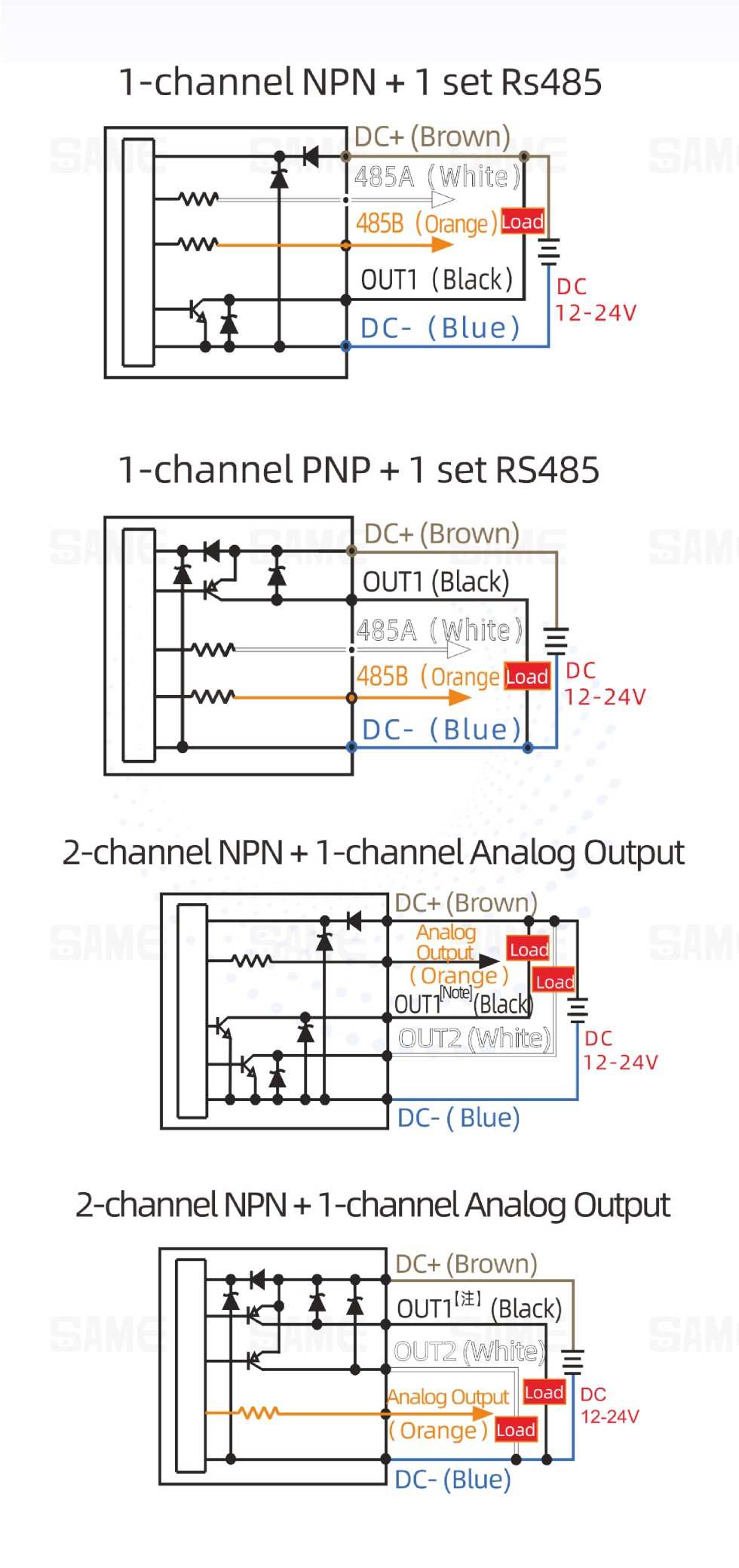

010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current output | 030: 1-channel NPN + 1 set of RS485 commSignal Input Mode :
1:Voltage input | 2:Current inputSignal Input Quantity :
1-channel signal inputDesigned to drive new productive forces in industrial automation, the SCP-01 Series Universal Type Pressure Controller is a highly advanced, ultra-compact digital display unit engineered to replace traditional mechanical pressure gauges. Adopting a versatile split design, this controller can be seamlessly integrated with various external pressure transmitters to precisely monitor pneumatic, hydraulic, and general fluid systems. Whether deployed in confined automated assembly lines or complex HVAC network systems, its space-saving 30x30mm front panel ensures effortless integration. By offering versatile input modes and advanced output configurations, the SCP-01 series empowers engineers to centralize equipment data collection, enabling smarter, safer, and more efficient factory operations.
Tips: This product utilizes a split design architecture and must be used in conjunction with a compatible pressure transmitter to function.

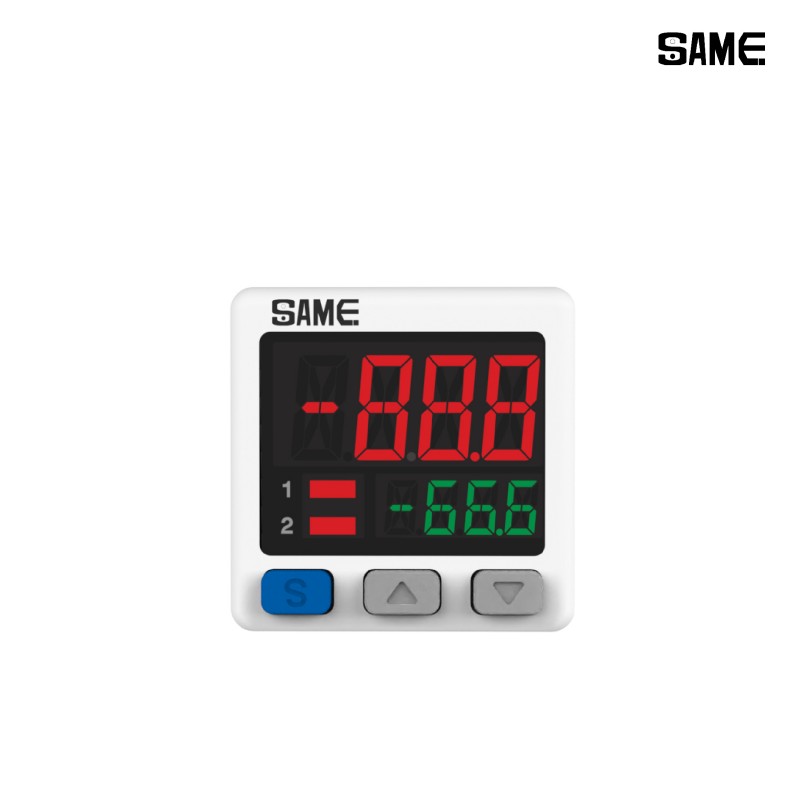

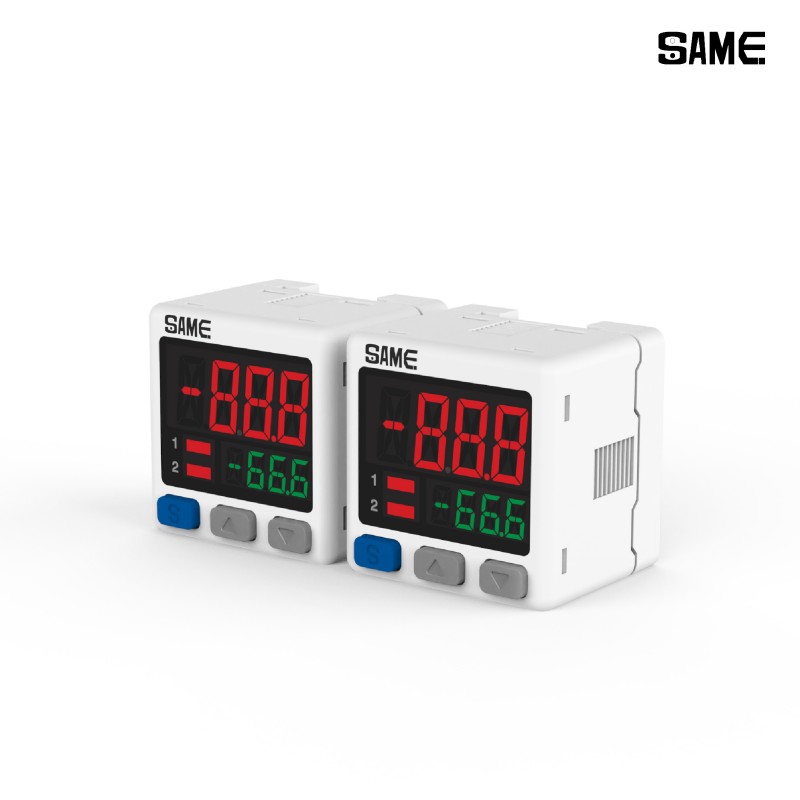

Equipped with high-brightness LEDs and a transparent visual window, allowing operators to verify real-time monitoring values (Red) and configuration setpoints (Green) simultaneously without manual toggling.
Features highly optimized logic control buttons with a dedicated keypad lock indicator to prevent misoperation. Distinct unit symbols (MPa, kPa, psi, bar, etc.) ensure faster and more accurate reading during commissioning.

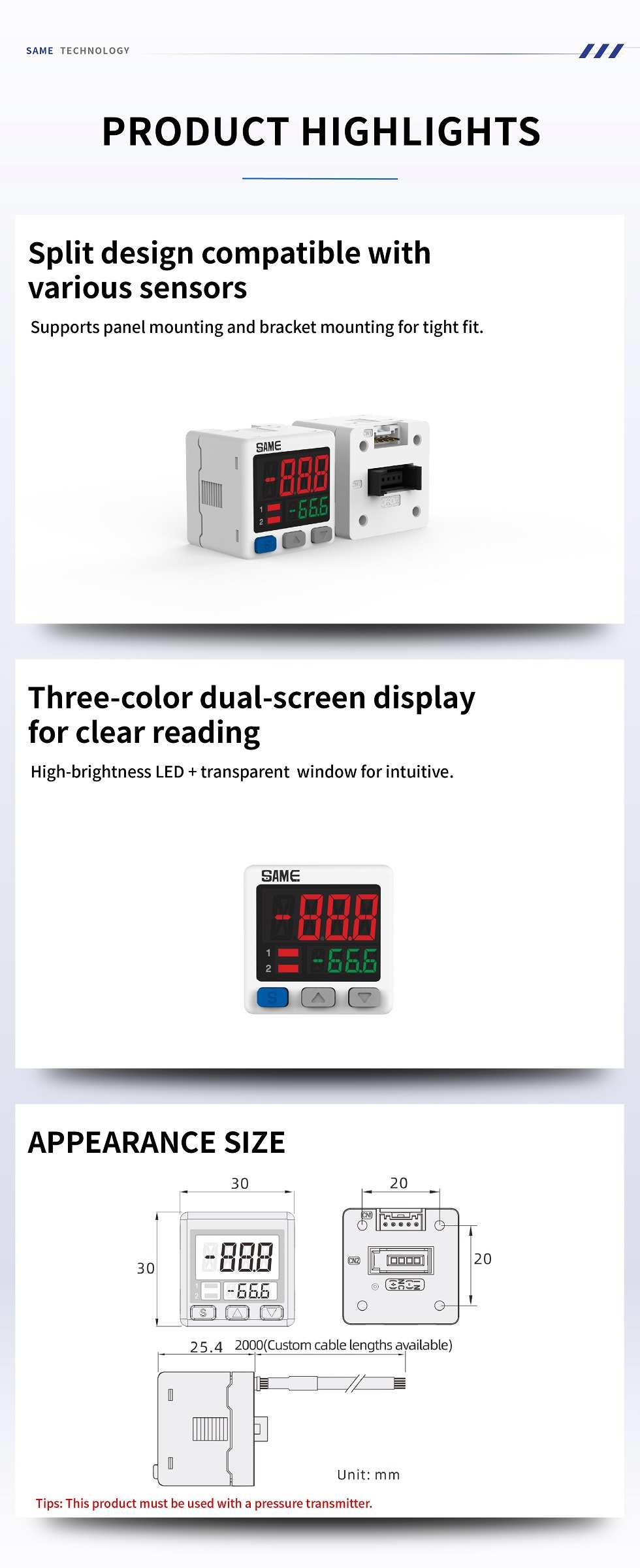

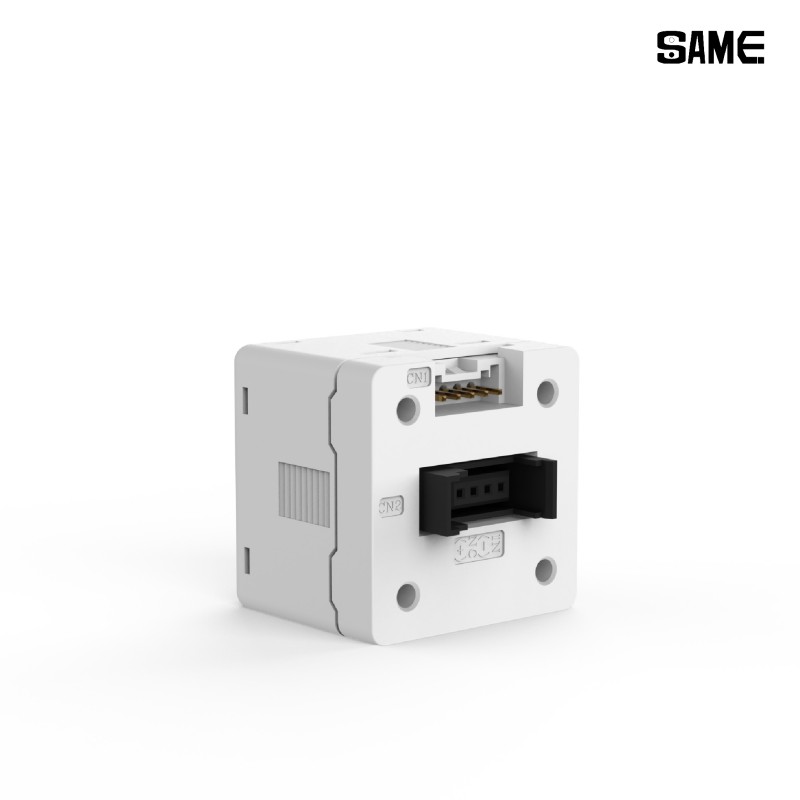

The standalone display unit is exquisitely compact. It supports flexible mounting methods and robust signal connectivity, saving vital installation space in tight industrial control cabinets.
The SCP-01 universal controller is engineered with high flexibility, featuring comprehensive input adaptability and multi-channel output configurations designed to fulfill diverse industrial control and smart factory system integration requirements.

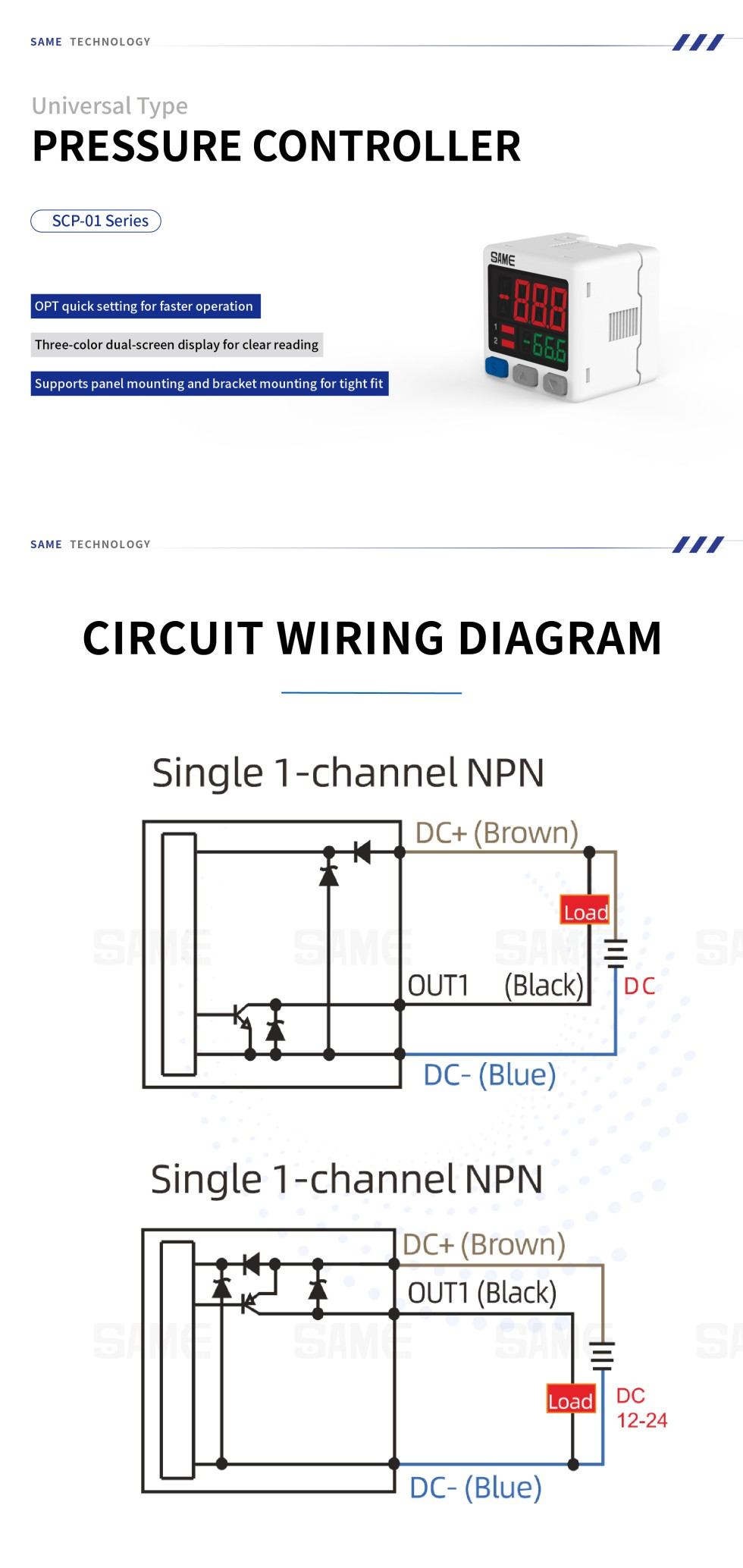

| MODEL | Split-type Pressure Controller | ||||||||||||||
| Power supply voltage | 12 to 24V DC ±10% | ||||||||||||||
| Current consumption | ≤40mA(With no load) | ||||||||||||||
| Sensor Signal Input | 1~5V or 4~20mA | ||||||||||||||
| Switch Output |
2NPN Open Collector Output
Max load current: 125mA Max supply voltage: 30V DC Internal voltage drop: 1.5V or less 2PNP Open Collector Output
Max load current: 125mA Max supply voltage: 24V DC Internal voltage drop: 1.5V or less |
||||||||||||||
| Hysteresis • Single-point Setting Mode • Hysteresis Mode • Window Comparison Mode |
Adjustable | ||||||||||||||
| Response time | 2.0ms, 50ms, 100ms, 250ms, 500ms, 2000ms selectable | ||||||||||||||
| Output Short-circuit Protection | Yes | ||||||||||||||
| Display | 4 Digital, 7 Segment LCD Display (Red/Green/Green) Sampling rate: 4 times/1 sec | ||||||||||||||
| Display Accuracy | ±2% F.S. ±1 digit | ||||||||||||||
| Repeatability | ±2% F.S. ±1 digits (Operating temperature 25±3°C) | ||||||||||||||
| Switch State Indicator | Red Indicator | ||||||||||||||
| Analog Output (Voltage Output) |
Output Voltage: 1~5V ±2%F.S. (Rated Pressure Range) Linearity: ±1%F.S. Output Impedance: Approx. 1kΩ |
||||||||||||||
| Analog Output (Current output) |
Output Current: 4~20mA ±2%F.S. (Rated Pressure Range) Linearity: ±1%F.S. Output Impedance: Max. Load impedance: 300Ω at 12V, 600Ω at 24V Min. Load impedance: 50Ω |
||||||||||||||
| Environmental Resistance |
|
||||||||||||||
| Temp. Characteristics | ±2% F.S. of detected pressure (25°C) at temperature range of 0 ~ 50°C | ||||||||||||||
| Cable spec. | 1 terminal power cable,1 user manual | ||||||||||||||
| Weight | Approx. 67g (With lead wire) |

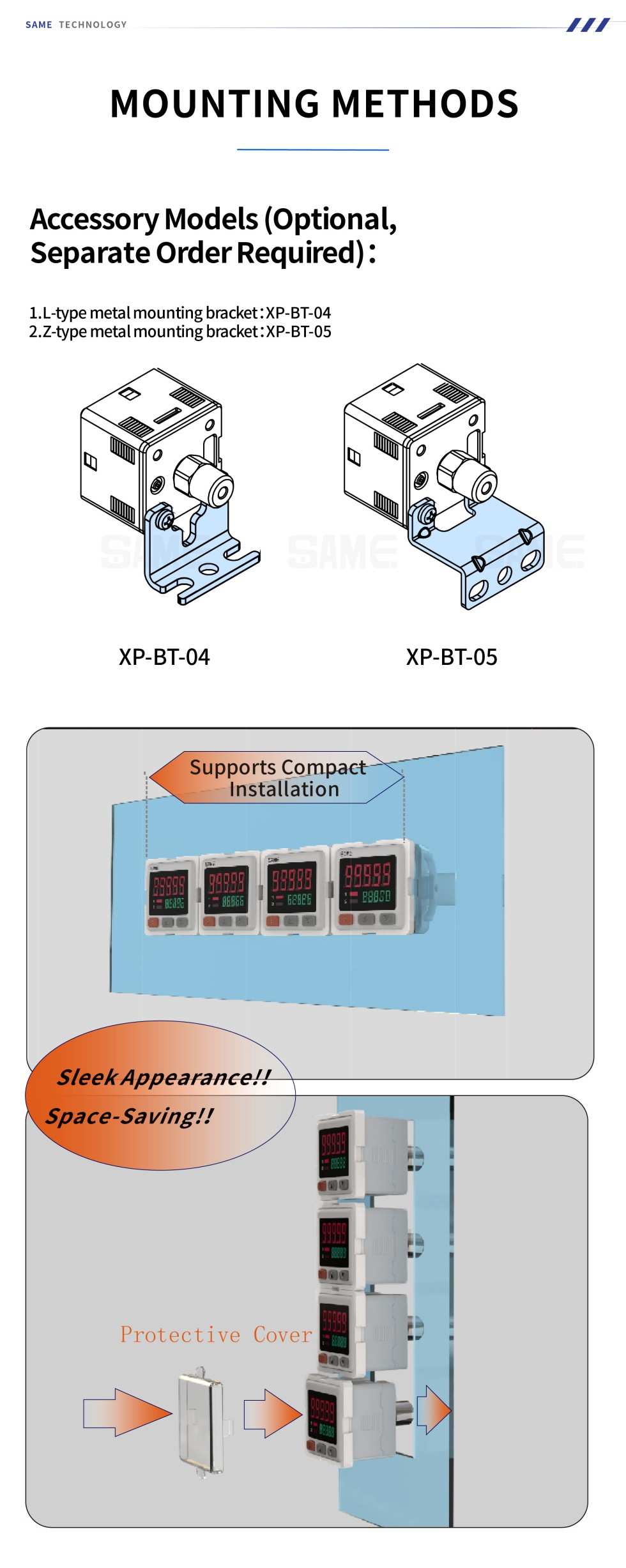

To ensure stability across different machine frames, the SCP-01 supports both embedded panel installation and external metal brackets (Accessory models require separate orders):
Acting as the digital brain for fluid and air monitoring, the SCP-01 excels in environments where precision and space are critical. It successfully upgrades outdated mechanical gauges in the following advanced equipment systems:
A: The split design allows the display and controller unit (SCP-01) to be mounted safely in a control cabinet or on a clean panel, while the separate pressure transmitter can be installed directly onto harsh, vibrating, or hard-to-reach pipeline sections. This greatly extends the lifespan of the electronics and improves operating convenience.
A: The upper large digits (typically Red) indicate the current real-time pressure detected in your system. The lower, slightly smaller digits (Green) show your programmed threshold or setpoint. This allows you to verify system status instantly without pressing any buttons.
A: It supports flexible signal input modes (voltage or current input) alongside extensive multi-channel output choices such as NPN, PNP, analog voltage/current, and RS485 communication interfaces to match your system requirements.
