Eliminate the hassle of complex electrical wiring with the SP-60 Series Battery Type Digital Pressure Gauge. Designed for ultimate portability and standalone operation, this innovative gauge is powered by a standard CR2032 lithium battery that lasts up to 3 years thanks to its highly efficient auto-sleep mode. Built tough with an IP65-rated enclosure, it effortlessly repels dust and water splashes, making it the perfect upgrade for mobile pneumatic equipment, isolated gas tanks, and harsh outdoor industrial environments. Simply mount it using the versatile bracket options, check the intuitive multi-unit display, and securely monitor your system's pressure without ever running a single power cable.
Product Series :
60: Battery TypeAir Pressure Input Range :
C: -101.3~101.3 kPa (Low-pressure Model) | P: -0.101~1.000 MPa (High-pressure Model)Backlight :
Blank: No backlight | L: With backlight (*not available for now)Air Pressure Fitting Type :
R: Internal M5 + external R1/8The SP-60 Series Battery Type Digital Pressure Gauge provides a highly versatile, standalone solution for pressure monitoring where running external power is impractical or impossible. Powered by a standard CR2032 lithium battery, it boasts an ultra-low power consumption design with an auto-sleep function that extends battery life up to 1 to 3 years. Coupled with a rugged IP65-rated enclosure, it easily withstands harsh, dusty, or wet industrial environments. Featuring switchable pressure units and a clear battery level display, the SP-60 is an exceptionally user-friendly tool for both permanent installations and portable field testing.
Powered by a CR2032 battery with an intelligent auto-sleep function after 60 seconds, delivering a 1-3 year battery life.
The highly durable enclosure protects against dust ingress and low-pressure water jets, making it suitable for harsh environments.

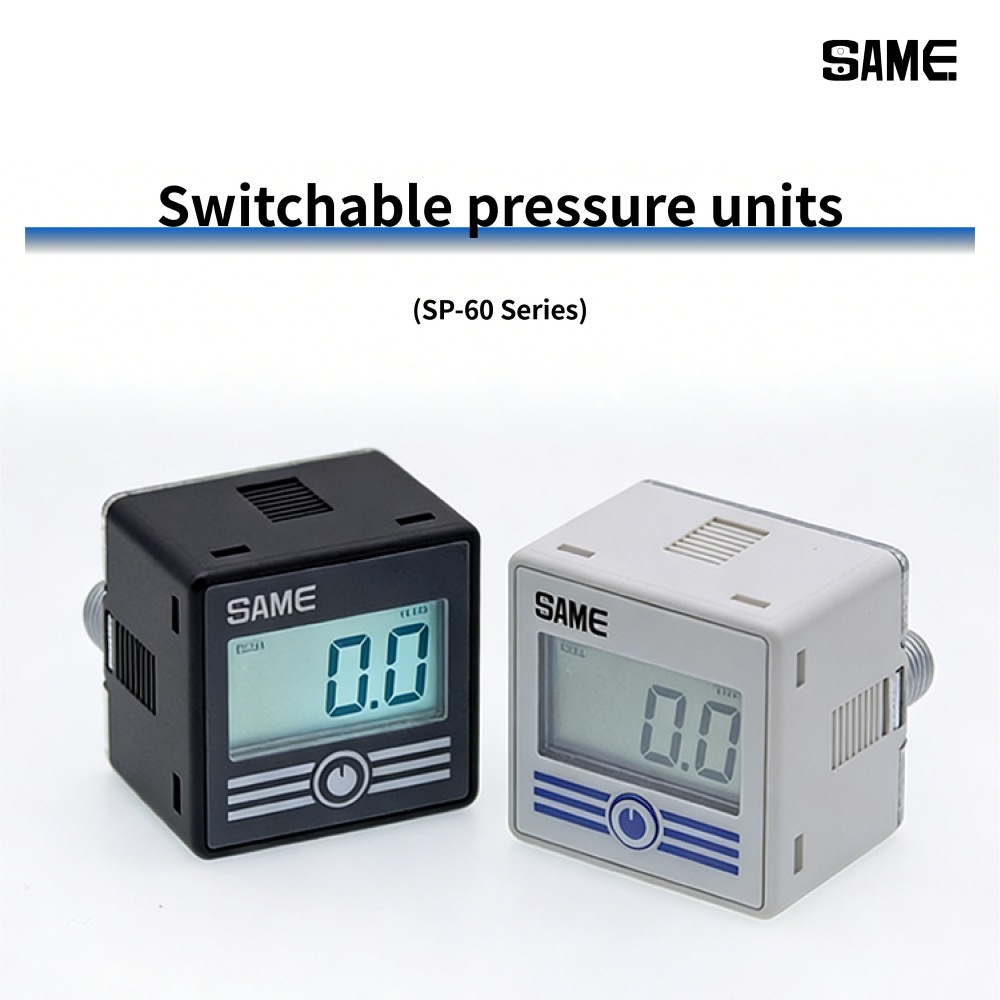

Supports multiple pressure units (MPa, kPa, kgf/cm2, bar, psi, mmHg) and features an intuitive battery level indicator for timely power monitoring.
| Model | SP-60P (High-pressure) | SP-60C (Low-pressure) | |
| Rated Pressure Range | 0~1.00MPa | -101.3~101.3kPa | |
| Withstand Pressure | 1.5MPa | 300kPa | |
| Performance Specs | Battery Type & Life | CR2032 Lithium battery; Approx. 3-year life (5 uses/day) | |
| Start-up Time | The display enters sleep mode after 60 seconds | ||
| Sampling Frequency | 2 Hz (2 times/second) | ||
| Display Accuracy | ±2% F.S. ±1 digit (Environment Temp: 25±3°C) | ||
| Applicable Gas | Air / Non-corrosive non-flammable gas compliant with ISO 8573-1:2010[7:4:4] | ||
| Operating Temperature | 0~50°C (no water droplets, no freezing) | ||
| Protection Grade | IP65 | ||
| 1. Product Series | 2. Air Pressure Input Range | 3. Backlight Option | 4. Air Pressure Fitting Type |
|---|---|---|---|
| 60: Battery Type | C: -101.3~101.3 kPa (Low-pressure) P: -0.101~1.000 MPa (High-pressure) |
Blank: No backlight L: With backlight (*not available for now) |
R: Internal M5 + external R1/8 |
Example Ordering Code: SP-60 C R

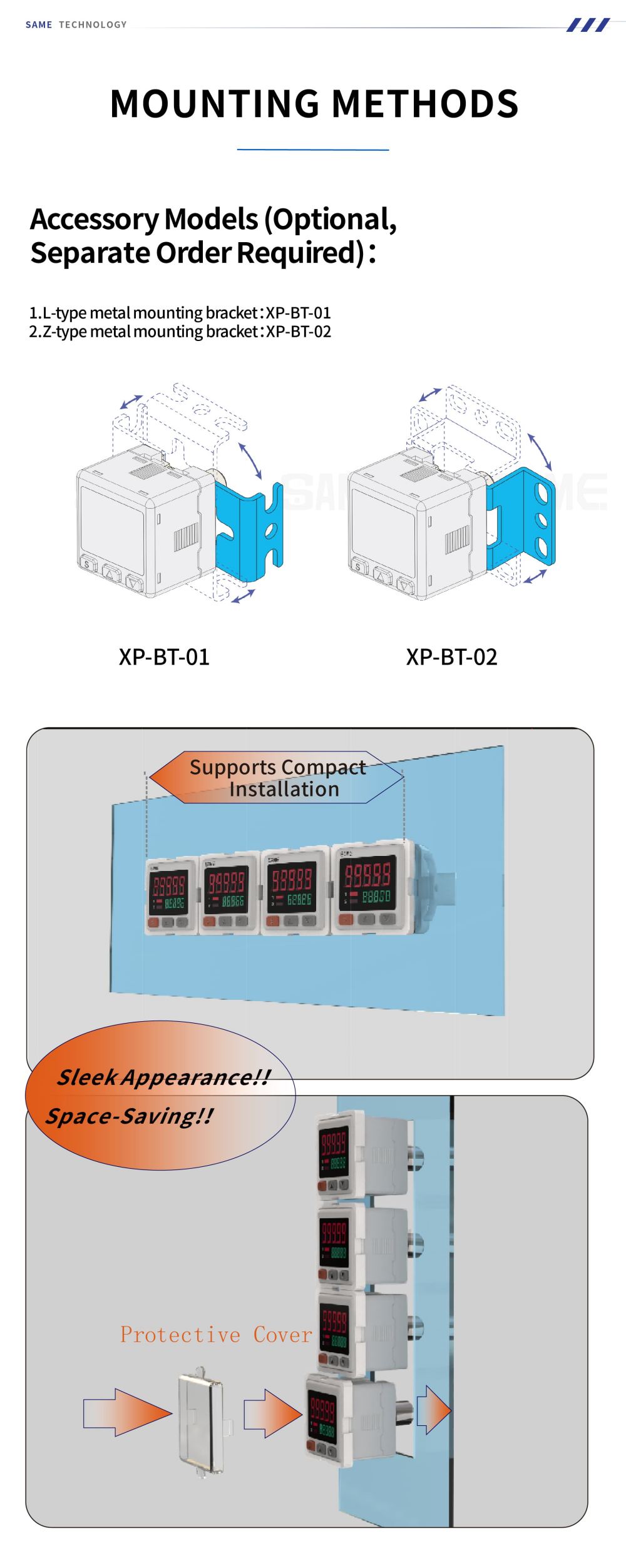

Since the SP-60 is battery-powered, there is absolutely no need for complex electrical wiring. Installation is strictly mechanical, providing ultimate flexibility. We offer a variety of optional accessory models for secure mounting, including the L-type metal mounting bracket (XP-BT-01), the Z-type metal mounting bracket (XP-BT-02), and a dedicated panel mounting bracket (XP-PA-01) for sleek, space-saving panel integration.
