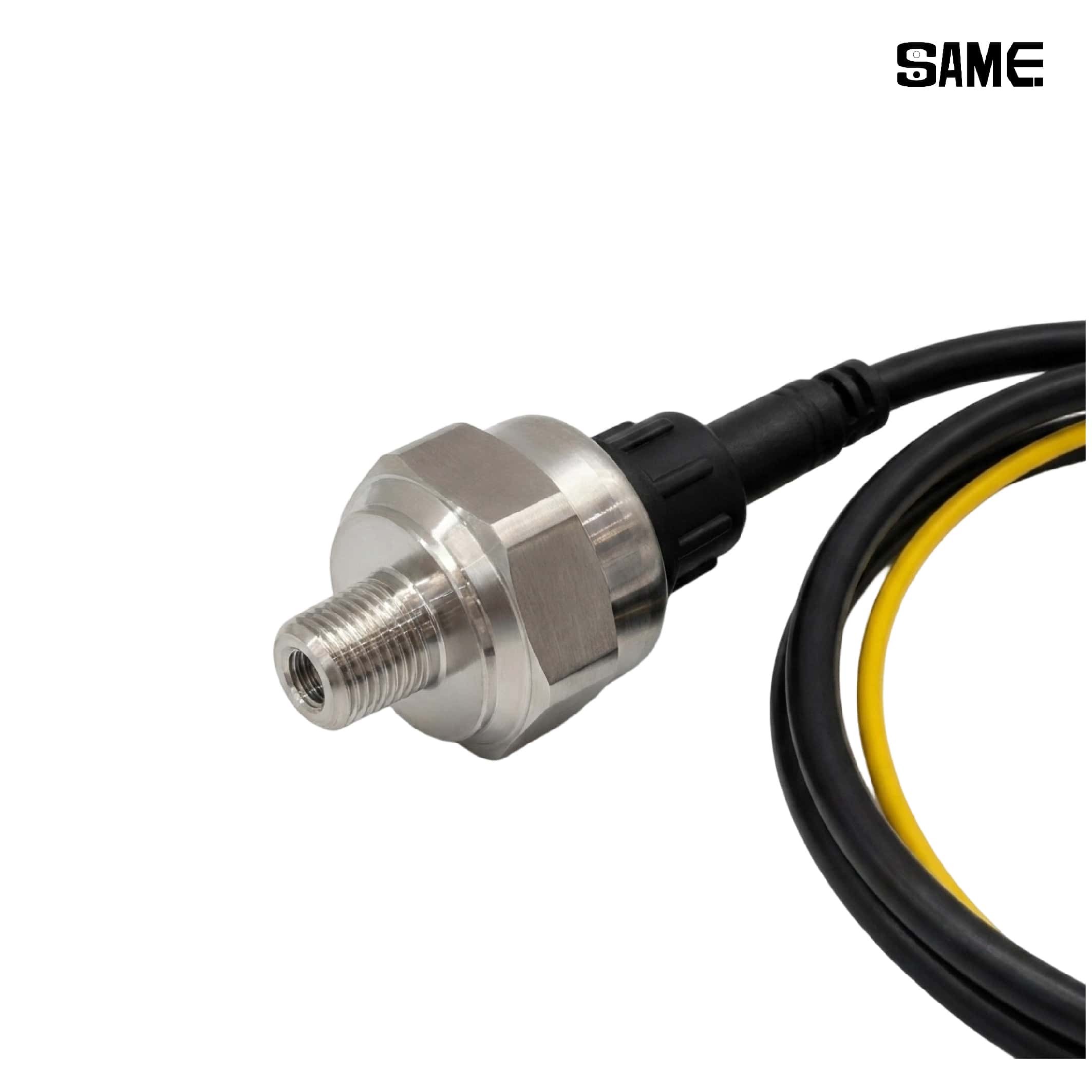

Upgrade your fluid monitoring systems with the highly resilient SP-47 Series Universal Fluid Pressure Transmitter. Built to thrive in harsh, wet, and demanding industrial conditions, this IP67-rated sensor ensures flawless data transmission for both liquids and gases without the risk of water ingress. Its rugged SUS316L stainless steel construction combined with advanced overpressure and reverse connection protection guarantees long-lasting stability and minimal maintenance downtime. Whether you are outfitting sanitary food processing lines, robust hydraulic test benches, or HVAC cooling systems, the SP-47 delivers a precise 0.5-4.5V analog signal, empowering your automation controllers with reliable, real-time pressure feedback at an exceptional value.
Product Series :
47: Universal Fluid Pressure TransmitterAir Pressure Input Range :
C: -101.3~101.3 kPa | P: -0.1~1.0 MPaSignal Output Type :
Blank: Default analog voltage 0.5–4.5V output | Others: To be determinedAir Pressure Connector Type :
R: Internal M5 + external R1/8Wiring Harness Connector Type :
Blank: No connector | C2: Equipped with E-CON connectorThe SP-47 Series Universal Fluid Pressure Transmitter is a highly durable and precise solution designed for measuring general non-corrosive fluids (gas/liquid). Engineered with an IP67 high protection grade and a waterproof wiring harness, it excels in demanding and wet environments. Equipped with SUS316L fittings and integrated overpressure and reverse connection protection, it ensures long-term reliability. Delivering a standard 0.5-4.5V analog output, it also supports an optional E-CON fitting for rapid connection with SCP controllers, making it highly versatile for industrial fluid monitoring.

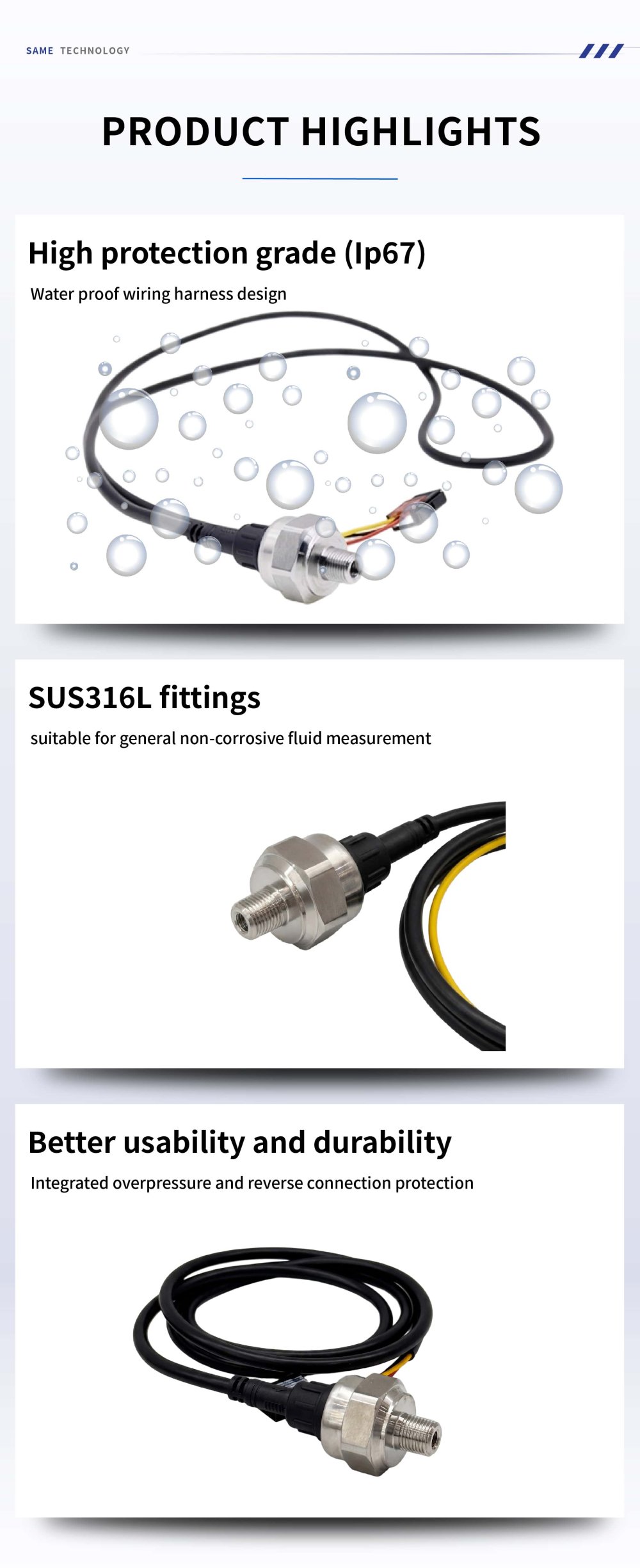

Features a waterproof wiring harness design, completely protecting the internal circuitry from dust and water immersion.
Constructed with robust SUS316L wetted parts, perfectly suited for general non-corrosive fluid and gas measurement.
Integrated with up to ±16VDC reverse connection protection and high burst pressure tolerances to withstand tough operational conditions.
| Model | SP-47P (Positive) | SP-47C (Compound) | |
| Working Pressure Range | -0.101~1.000MPa | -101.3~101.3kPa | |
| Max. Withstand / Burst Pressure | 1.5MPa / 2.0MPa | 200kPa / >300kPa | |
| Measurement Medium | General fluid (gas/liquid, non-corrosive to SUS316L and NBR O-rings) | ||
| Electrical Specs | Power Supply | 5 ±0.25V DC (Current: 5mA Max) | |
| Output Mode | 0.5~4.5V DC @ 5V | ||
| Measurement Accuracy | ±1.0% F.S. (Temp Drift ±0.03% F.S./°C) | ||
| Protection Features | Reverse Connection Protection: ±16VDC | ||
| Working Temperature | -20~85°C | ||
| 1. Product Series | 2. Air Pressure Input Range | 3. Air Pressure Connector | 4. Wiring Harness Connector |
|---|---|---|---|
| 47: Universal Fluid Pressure Transmitter | C: -101.3~101.3 kPa P: -0.1~1.0MPa |
R: Internal M5 + external R1/8 | Blank: No connector C2: Equipped with E-CON connector |
Example Ordering Code: SP-47 P R C2

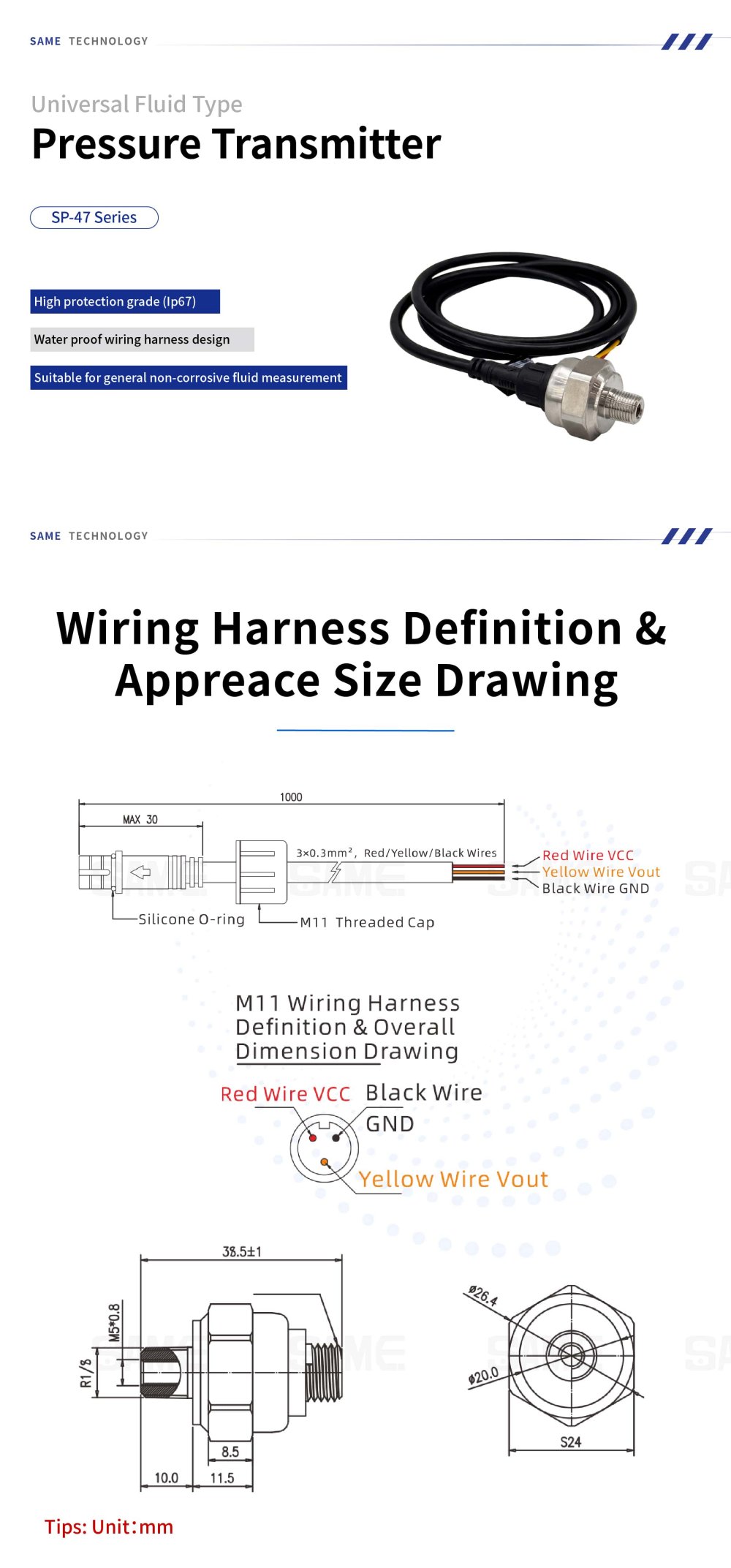

The SP-47 boasts a dedicated M11 wiring harness engineered for waterproof reliability. The connection consists of a Red Wire (VCC), Black Wire (GND), and Yellow Wire (Vout). Protected by a silicone O-ring and threaded cap, this transmitter remains tightly sealed in wet working environments.
