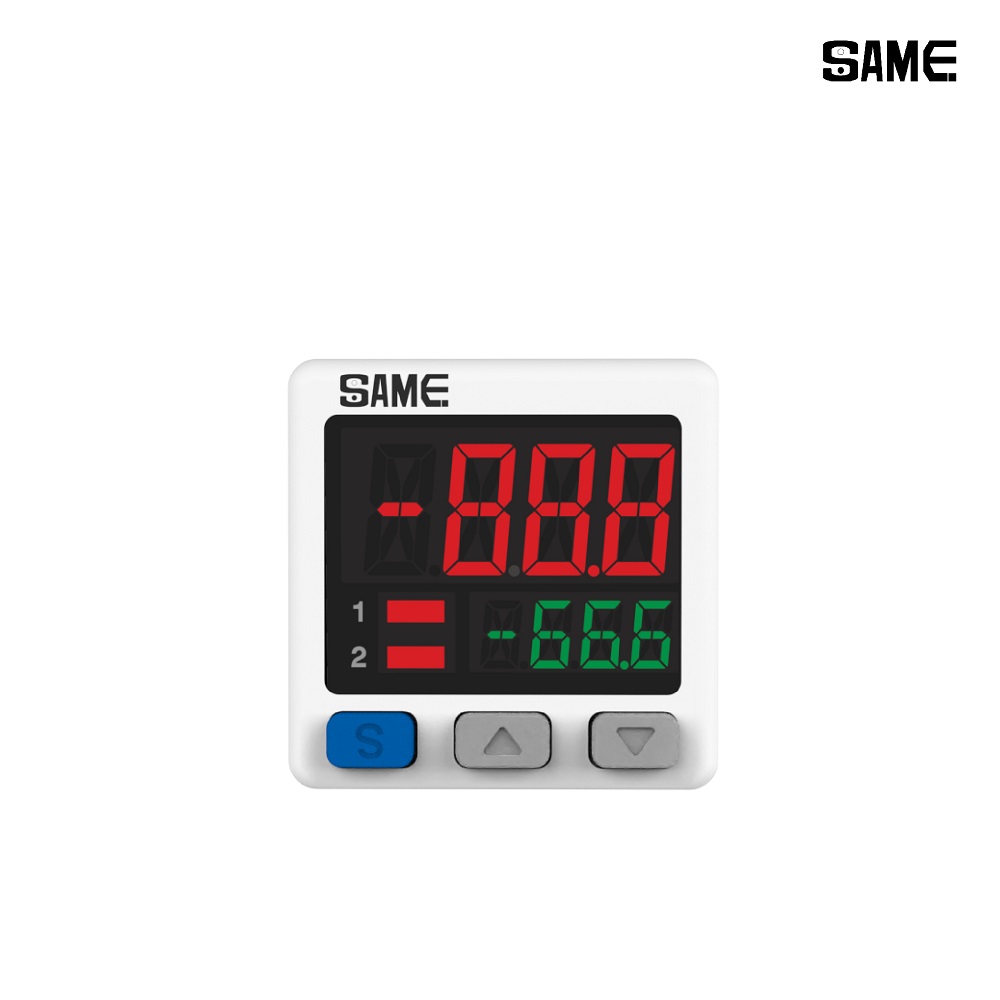

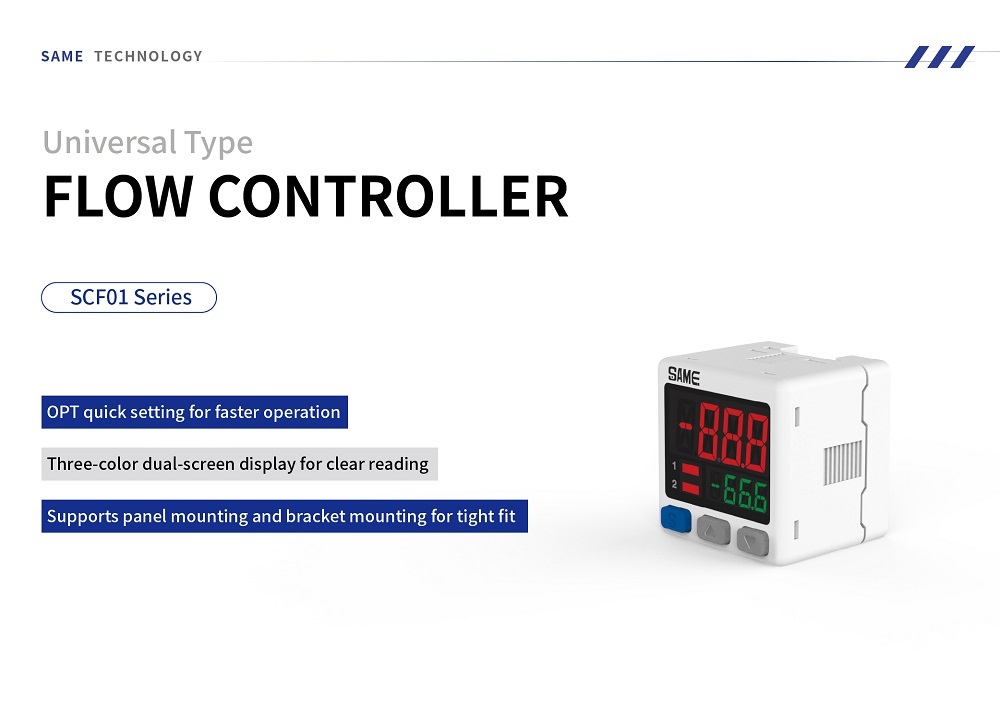

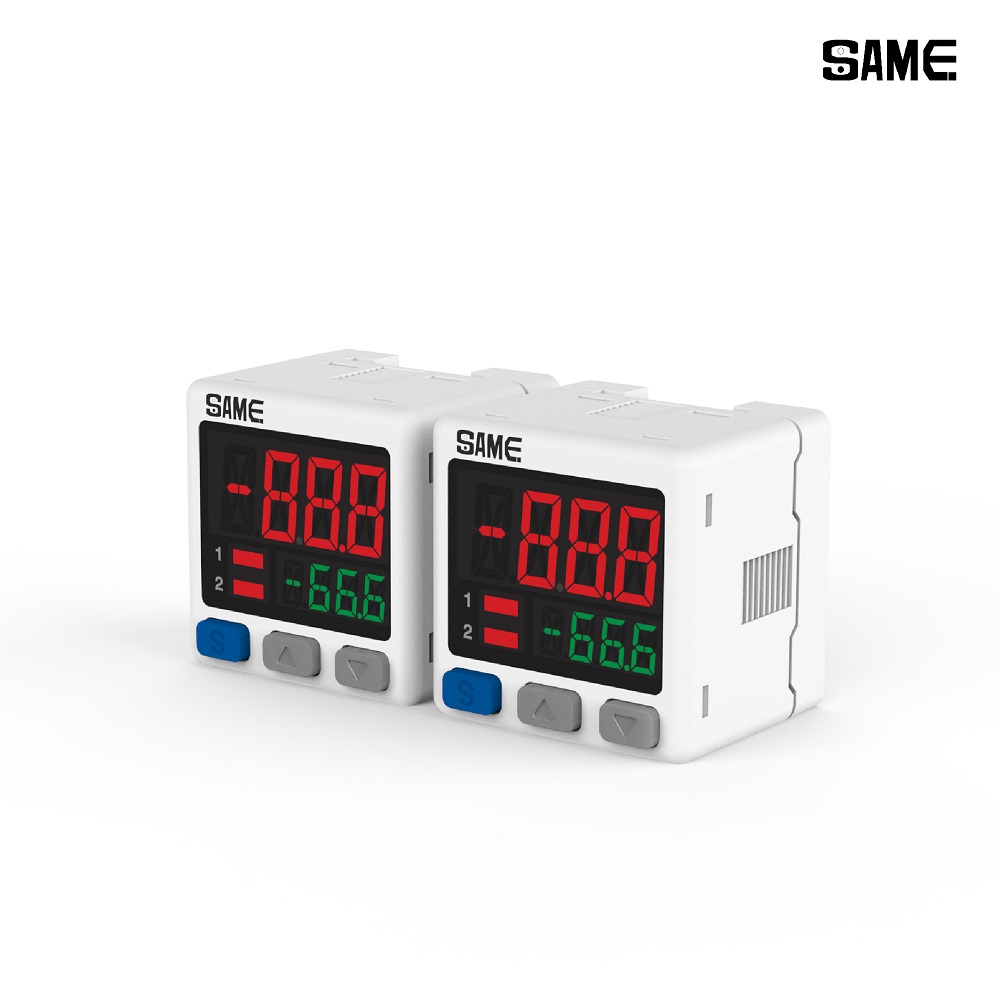

The SCF01 series is a universal digital flow controller featuring a highly visible three-color dual LED display and a versatile split design for flexible mounting. Engineered for precise industrial automation, it supports comprehensive output options including NPN, PNP, Analog, and RS485 for seamless system integration.
Product Series :
Universal Digital Flow ControllerSignal Input Mode :
1:Voltage input | 2:Current inputSignal Input Quantity :
1-channel signal inputSignal Output Type :
001: 1-channel NPN output | 002: 1-channel PNP output | 011: 2-channel NPN output +1-channel analog current | 021: 2-channel PNP output+1-channel analog current | 010: 2-channel NPN output+1-channel analog voltage | 020:2-channel PNP output+1-channel analog voEngineered for high-precision automation and fluid management, the SCF01 Series Universal Digital Flow Controller delivers exceptional monitoring and regulating capabilities. Featuring a highly visible three-color dual LED display and a versatile split design, this controller ensures intuitive status readings and flexible installation in tight industrial spaces. With robust support for comprehensive output protocols—including NPN, PNP, Analog, and RS485—the SCF01 seamlessly integrates into complex machinery, providing reliable data transmission and precise flow control to keep your systems operating at peak efficiency.

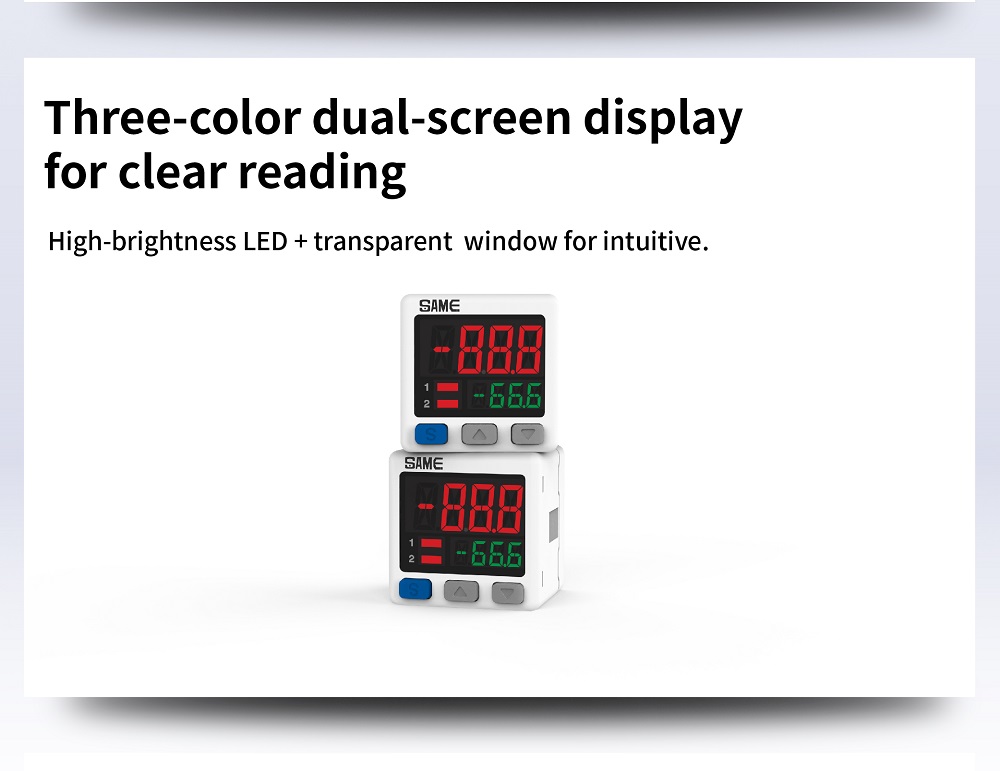

Equipped with high-brightness LEDs and a transparent window for intuitive, clear readings in any industrial lighting condition.

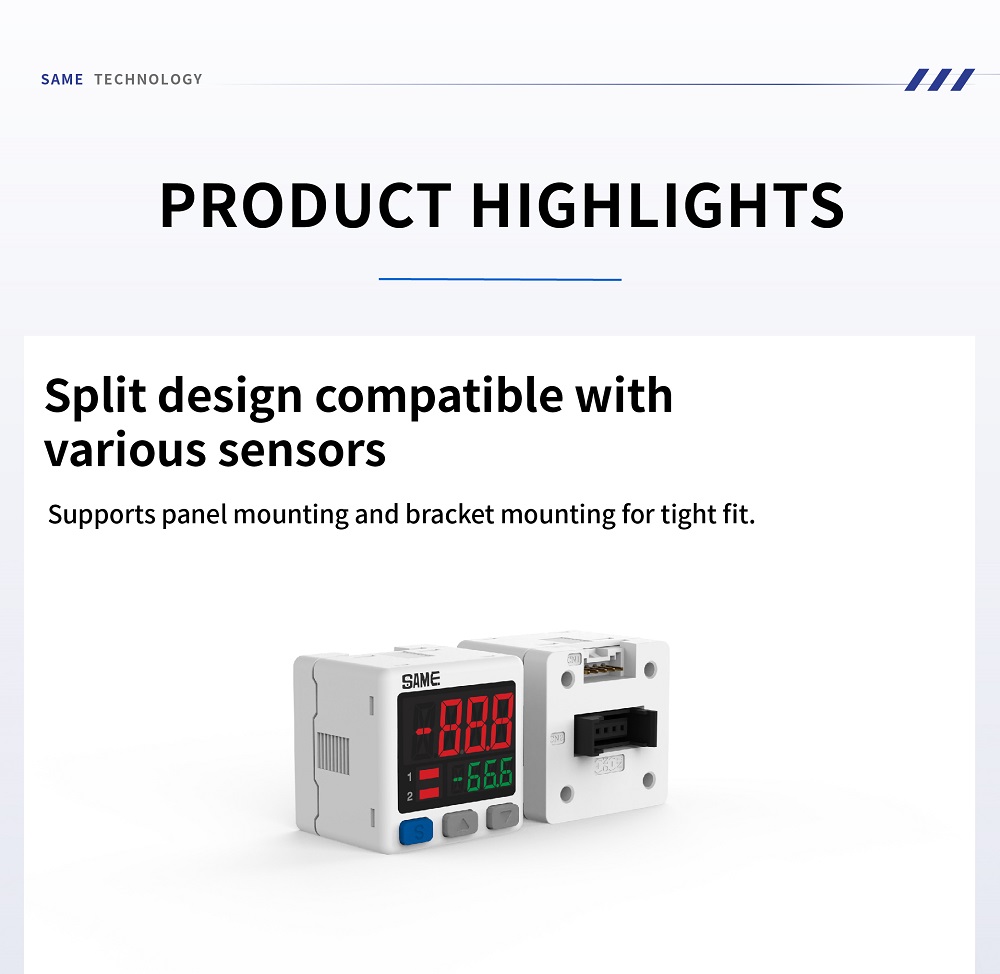

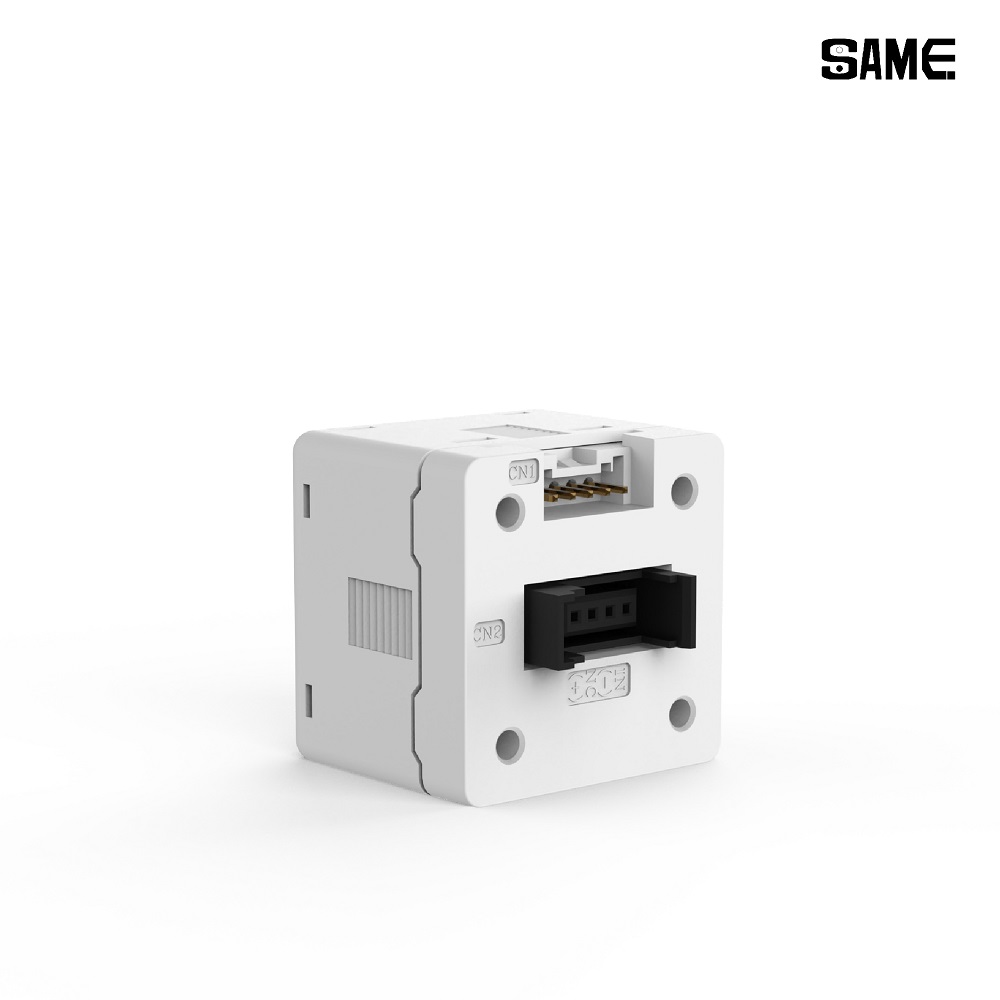

Compatible with various sensors, supporting both panel mounting and bracket mounting to ensure a tight, secure fit in compact spaces.
Streamlined interface designed for faster operation and setup, minimizing downtime during installation and maintenance.
| Model Series | SCF01 Universal Digital Flow Controller | ||
| Power Supply Voltage | DC 12~24V | Display Type | Three-color Dual-screen LED |
| Dimensions (Main Body) | 30mm x 30mm x 25.4mm | Dimensions (Bracket) | 20mm x 20mm |
| Output Options | • Single 1-channel NPN • 2-channel NPN + 1-channel Analog Output • 1-channel NPN + 1 set RS485 • 1-channel PNP + 1 set RS485 |
||
| Cable Length | 2000mm (Custom cable lengths available) | ||
| Note: The split design allows for high compatibility with various industrial sensors. Please ensure correct wiring polarity (Brown: DC+, Blue: DC-) during installation to prevent circuit damage. | |||

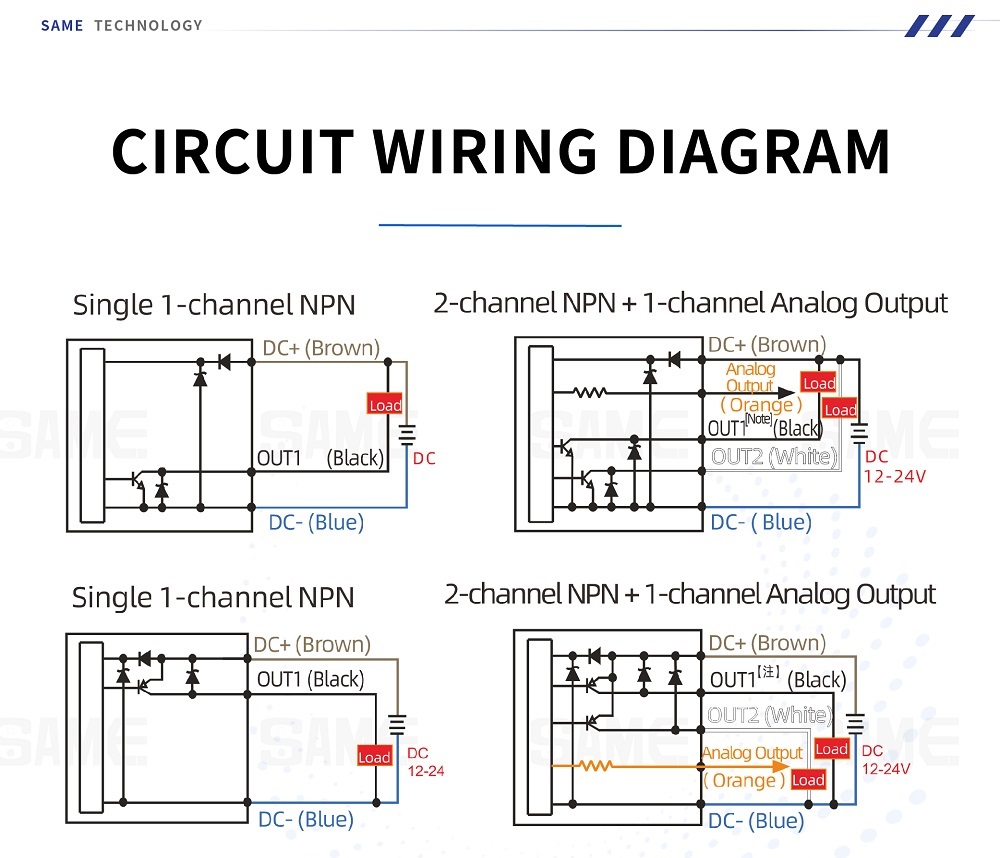

The SCF01 series provides highly adaptable wiring solutions for versatile industrial integration. Select the appropriate configuration based on your PLC or control system requirements:
| Wiring Type | Pin / Wire Color Details |
|---|---|
| Single 1-channel NPN | Brown: DC+ (12-24V) | Blue: DC- | Black: OUT1 (Load) |
| 2-channel NPN + Analog | Brown: DC+ | Blue: DC- | Black: OUT1 | White: OUT2 | Orange: Analog Output |
| 1-channel NPN + RS485 | Brown: DC+ | Blue: DC- | Black: OUT1 | White: 485A | Orange: 485B |
| 1-channel PNP + RS485 | Brown: DC+ | Blue: DC- | Black: OUT1 (PNP Load) | White: 485A | Orange: 485B |

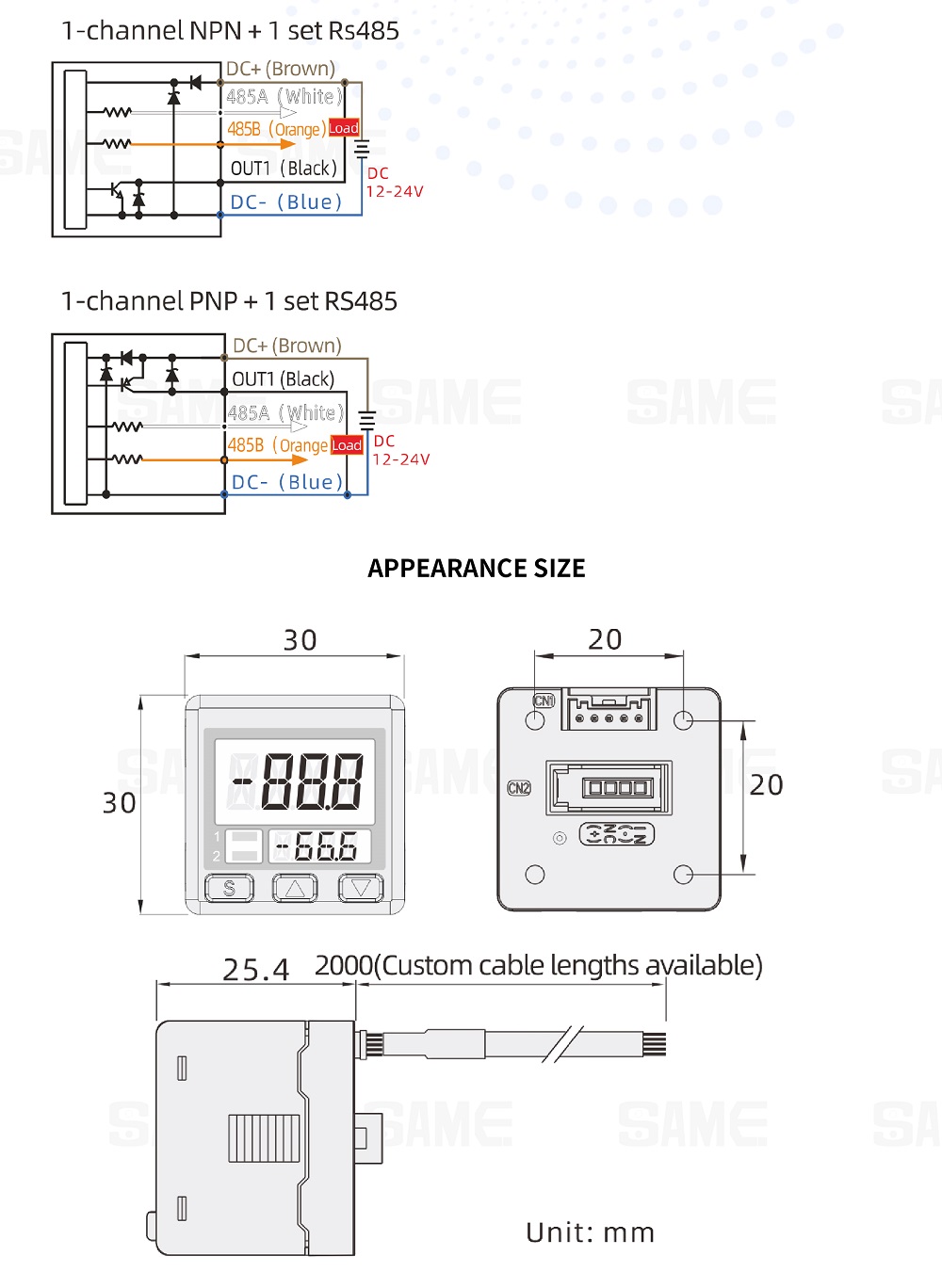

Please refer to the appearance size diagrams below for exact dimensional planning. The compact 30x30mm profile and specialized bracket options make it suitable for seamless panel integration.
A: Yes, the SCF01 series offers specific models equipped with RS485 communication, allowing for seamless data acquisition and centralized control in modern smart factory setups.
A: The split design structure makes the controller highly compatible with various external sensors. It provides flexibility, supporting both direct panel mounting and secondary bracket mounting for tight or unconventional spaces.
A: The SCF01 series is designed to operate securely on a standard DC 12-24V power supply, which is common in most industrial control cabinets.
