  • Digital Pneumatic Pressure Switch High-precision Communication Digital Pressure Switch (SP-18 Series)
    Preview
    Product Series: 18: High-precision Communication Type
    Signal Output Type: 010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current output | 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure Input Range: L: -10.00~10.00kPa (Small-range Model) | C: -100.00~100.00kPa (Low-pressure Model) | P: -100.00~999.99kPa (High-pressure Model)
    Air Pressure fitting Type: R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbow

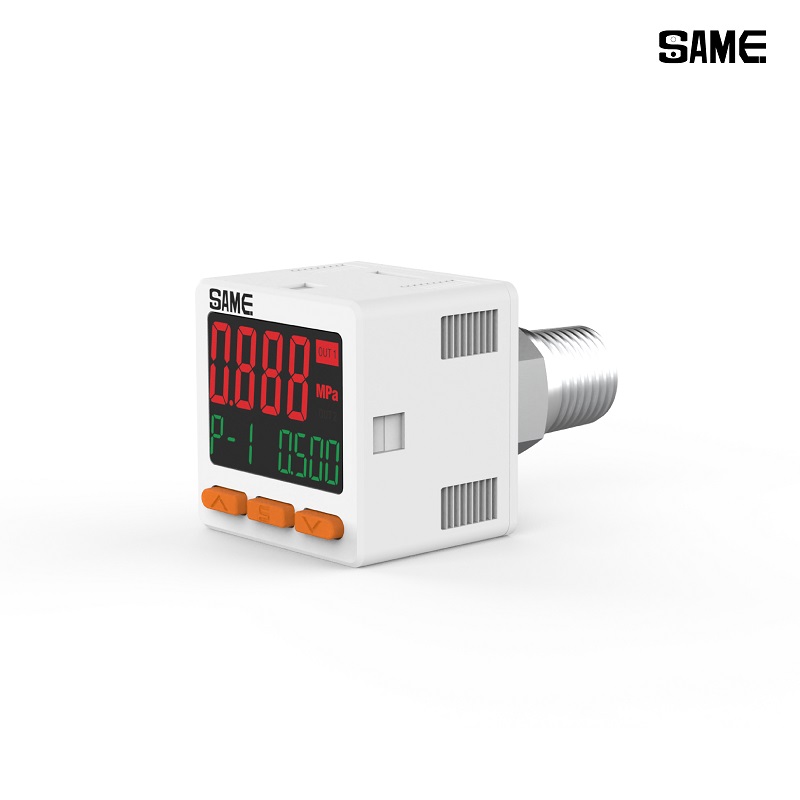

  • Universal Fluid Digital Pressure Switch Universal Fluid Type Digital Pressure Switch(SP-70/70S Series)
    Preview
    Product Series: 70:High Protection Universal Fluid Type | 70S:High Protection Universal Fluid & Corrosion Resistant Type
    Signal Output Type: 010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current output
    Air Pressure Input Range: C:-101.3~101.3kPa(Low pressure type) | P:-0.101~1.000MPa(High pressure type) | H:-0.101~2.5MPa(Ultra-high Pressure Type)
    Connection Type: R2:Internal M5+External R1/4 | R2L:Right-angle Elbow Bottom Outlet Port Internal M5 + External R1/4 | S:SCR face seal fitting compatible with VCR standard
