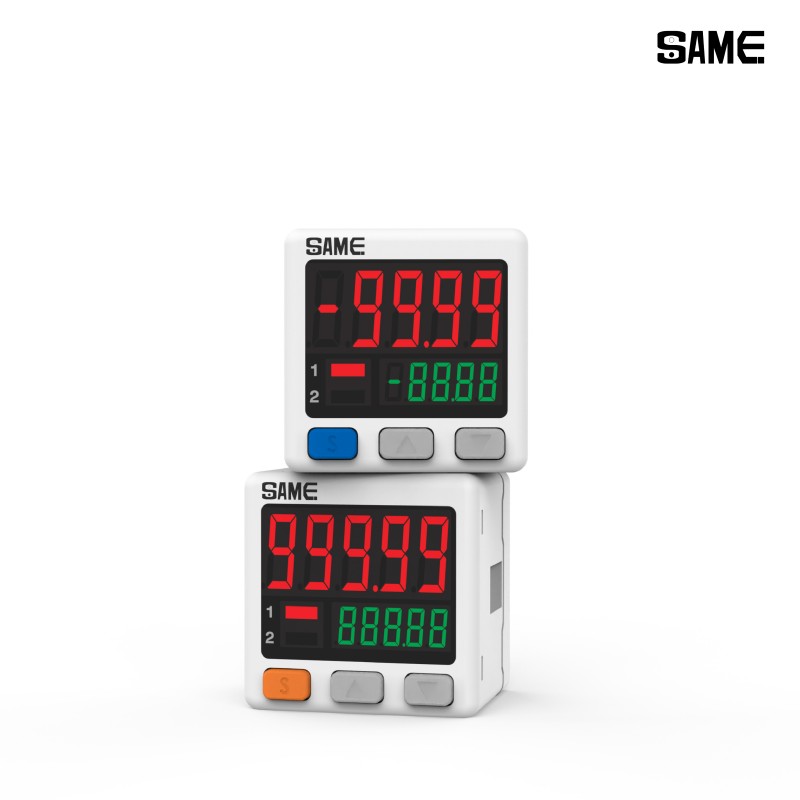

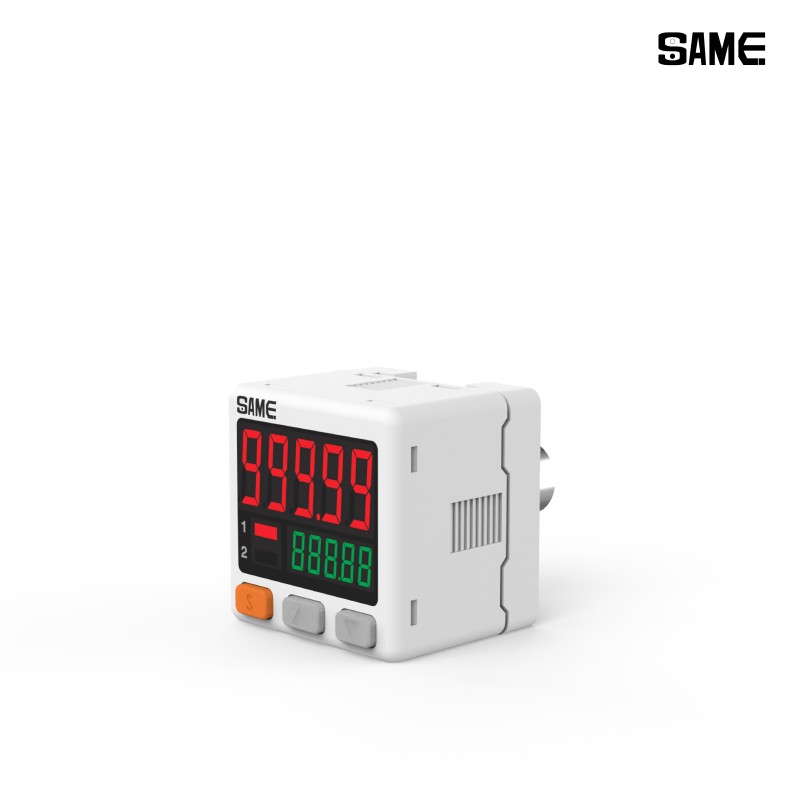

Featuring an upgraded 5-digit 7-segment LED display, the SP-18 Series provides higher resolution and more accurate pressure readings than conventional digital pressure switches. With 0.5 class accuracy, up to 1Pa resolution, and repeatability of ±0.05%F.S. ±2digits, it delivers stable and reliable performance for high-precision applications.
Product Series :
18: High-precision Communication TypeSignal Output Type :
010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current output | 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communicationAir Pressure Input Range :
L: -10.00~10.00kPa (Small-range Model) | C: -100.00~100.00kPa (Low-pressure Model) | P: -100.00~999.99kPa (High-pressure Model)Air Pressure fitting Type :
R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbowEngineered specifically for the exacting standards of Industry 4.0 and the new energy sector, the SP-18 Series High-Precision Communication Digital Pressure Switch redefines sensing accuracy. Featuring an upgraded 5-digit 7-segment display, this advanced controller delivers a phenomenal maximum resolution of 1Pa (0.001kPa), offering one more digit of precision than standard market alternatives. Combined with an elite 0.5 class accuracy rating and seamless MODBUS protocol support, the SP-18 bridges ultra-precise local pneumatic monitoring with intelligent enterprise-wide data networking.

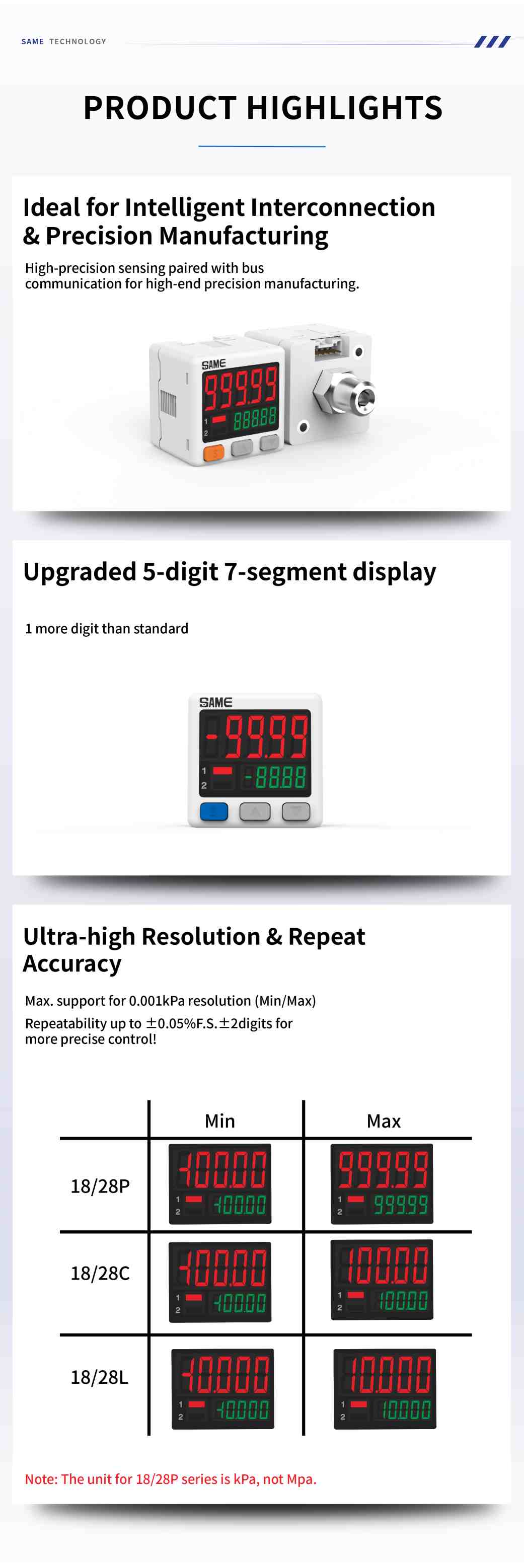

Boasts an enhanced 5-digit 7-segment LED screen (one digit more than standard models), allowing operators to monitor subtle pressure fluctuations with absolute clarity and unmatched visual depth.
Achieves an outstanding 0.5 class overall accuracy with repeatability up to 0.05% F.S. ± 2 digits. Supports a maximum resolution of 0.001kPa, ideal for critical precision manufacturing processes.
Fully supports the standard MODBUS protocol while intelligently retaining 1-channel discrete switch output, bridging the gap between local safety triggers and remote SCADA monitoring systems.
The SP-18 high-precision platform provides an expansive array of smart logic configurations. Select the exact specification code below to match the stringent tolerance requirements of your fluid control system:
| Pressure classification |
(High Pressure Type) | (Low Pressure Type) | (Micro pressure Type) |
| Rated Pressure Range |
-100.00~999.99kPa | -101.3~101.3kPa | -10.000~10.000kPa |
| Setting Pressure Range |
-100.00~999.99kPa | -101.3~101.3kPa | -10.000~10.000kPa |
| Maximum Proof Pressure |
1.5MPa | 200kPa | 20kPa |
| Applicable Gas | Non-corrosive Clean Gas | ||
| Power Supply Voltage |
12~24V DC ±10% | ||
| Current Consumption |
45 mA max. (No load) | ||
| Switch Output [Note]*1 |
NPN open collector output: max
load current 100 mA, max supply voltage 30 VDC, internal voltage drop ≤ 1.5 V PNP open collector output: max
load current 100 mA, max supply voltage 24 VDC, internal voltage drop ≤ 1.5 V |
||
| Analog Voltage Output [Note]*1 |
None | ||
| Analog Current Output [Note]*1 |
None | ||
| MODBUS Function [Note]*2 |
Yes | ||
| Display Accuracy |
±0.5%F.S.±2digits (at operating temperature 25±3°C) |
||
| Repeatability | ±0.05%F S. ±2digits |
||
| Response Time | 10ms, 50ms,100ms, 250ms,500ms, 2000ms,3000,5000 Optional | ||
| Display | 3-color display (Red, Orange, Green)display sampling rate 4 times per second | ||
| Temperature Characteristics |
Within 0.5% F.S. Repeatability, reference temperature 25°C, applicable range 0 to 50°C | ||
| Operating Environment |
0 to 50°C (no condensation no freezing ) | ||
| Storage Environment |
-10 to 50°C( no condensation no freezing )35 to 85% RH (no water dew ) | ||
| Protection Rating |
IP40 | ||
| Connection Port Size |
R: external 1/8 internal M5
C4H straight 4mm tube fitting straight type C4L straight 4mm tube fitting elbow type C6H straight 6mm tube fitting straight type C6L straight 6mm tube fitting elbow type |
||
| Weight | Approx. 85 g including power cable | ||
| Accessories | One power cable with terminal included one instruction manual included | ||

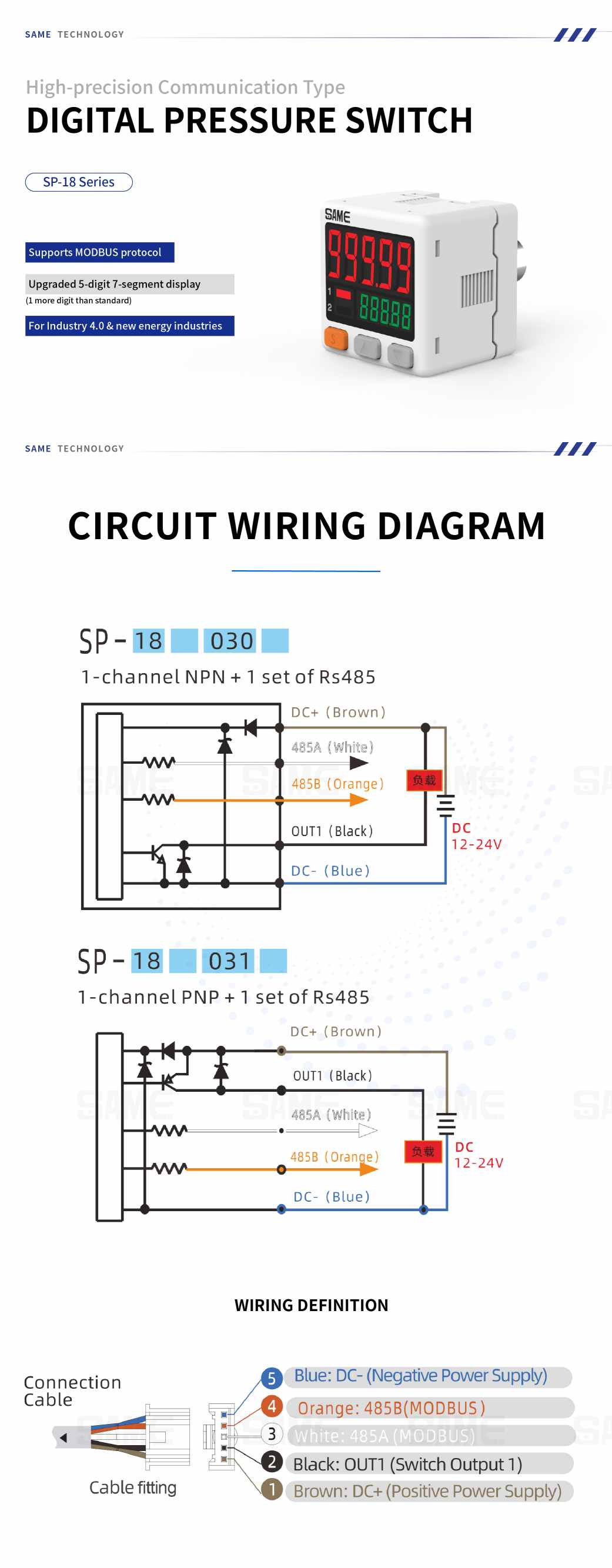

For models equipped with MODBUS communication, network topology relies on correct RS485 polarization. Ensure the White wire (485A) and Orange wire (485B) are consistently routed to guarantee stable remote reading and setting from your central upper computer.

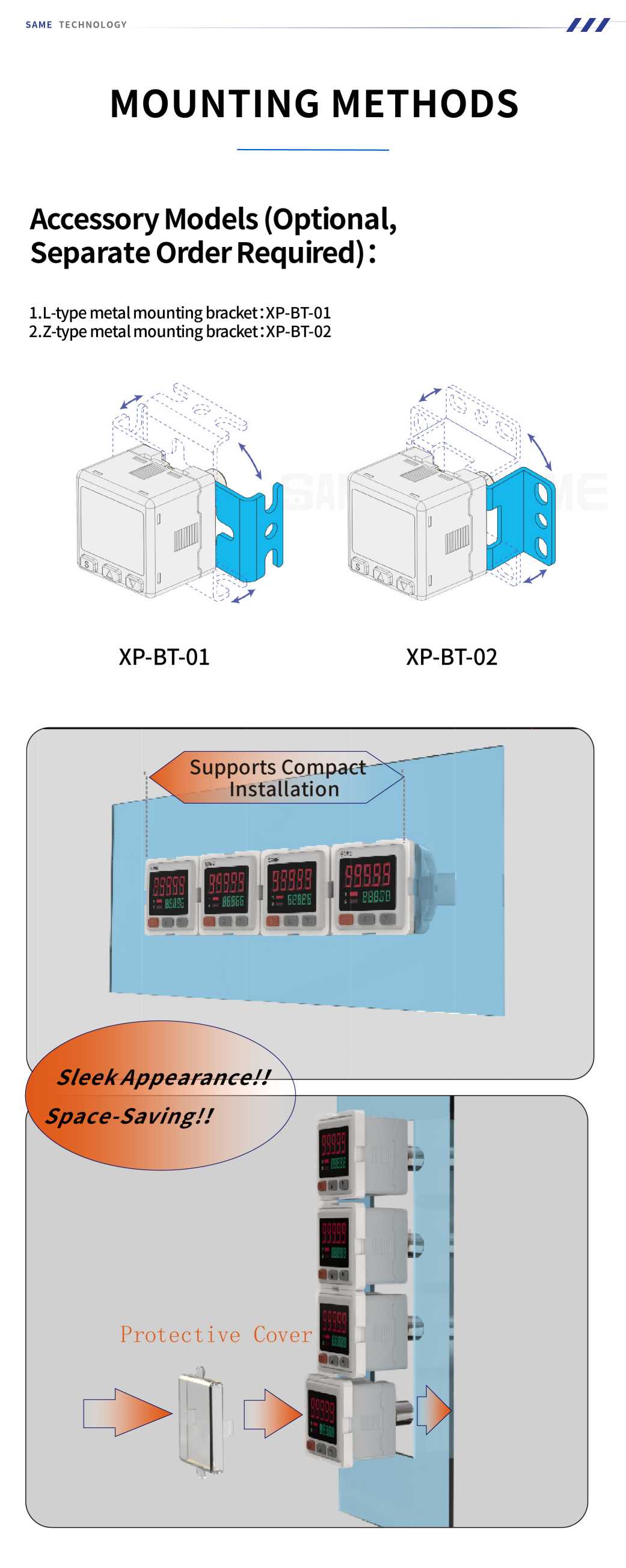

Wiring Definitions & Bracket Accessories:
The SP-18 eliminates the barrier between localized fluid mechanics and enterprise-wide data lakes, proving vital for expansive, high-precision manufacturing floors:
A: By adding a 5th digit to the 7-segment display, the SP-18 series breaks past the resolution limits of standard switches, allowing it to display measurements down to a maximum resolution of 1Pa (0.001kPa). This is critical for ultra-precise micro-pressure adjustments.
A: To fully utilize the expanded 5-digit display format without losing precision, the 18P series displays high pressure ranges up to 999.99 kPa instead of rounding to MPa. This ensures you maintain granular tracking across the entire high-pressure spectrum.
A: Models like the 030 and 031 provide RS485 communication for data logging, while preserving a physical 1-channel NPN or PNP output. This retained output ensures you always have a failsafe local hardware trigger for rapid safety cutoffs, regardless of network status.
