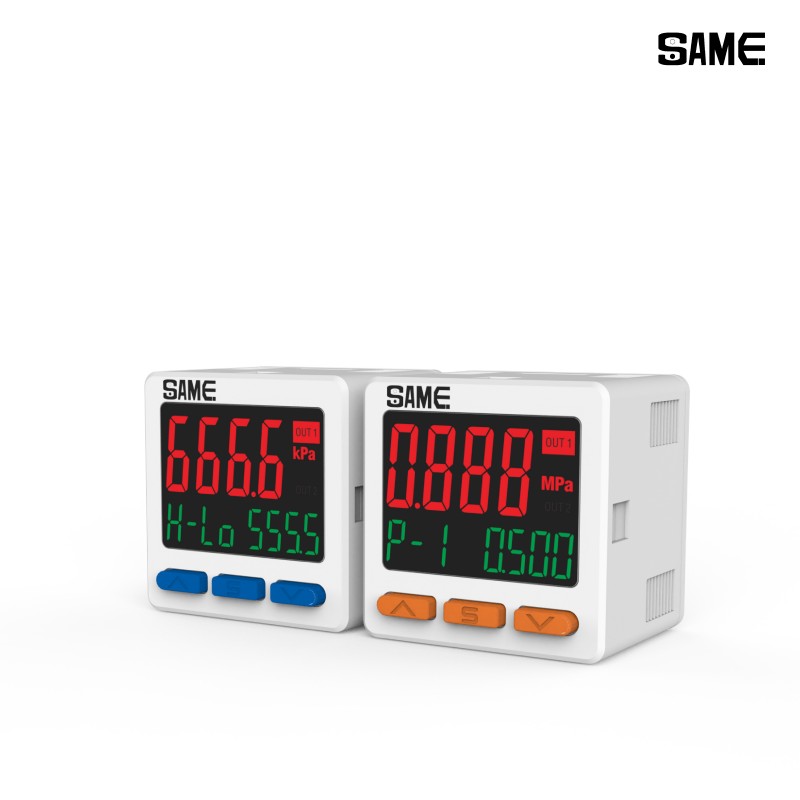

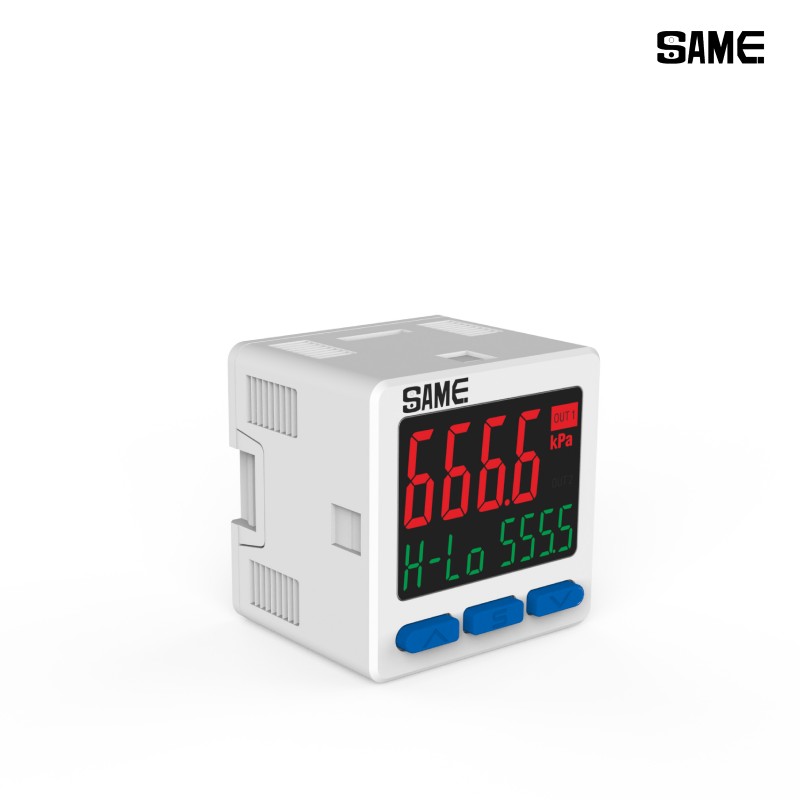

SP-25 Series High Protection Communication Digital Pressure Switch is an advanced pressure monitoring and control device designed for industrial automation, smart manufacturing, and harsh working environments. Featuring an IP65-rated protective enclosure, the SP-25 Series provides excellent resistance against dust and water jets, ensuring reliable operation in demanding industrial applications.
Product Series :
25: High Protection Communication TypeSignal Output Type :
030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communicationAir Pressure Input Range :
C:-101.3~101.3kPa(Low pressure type) | P:-0.101~1.000MPa(High pressure type)Air Pressure fitting Type :
C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbow | M: Internal M5 | R2: Internal M5 + external R1/4 | RC: Internal RC1/8 (bidirectional) | R: Internal M5 + external R1/8Engineered for uncompromising reliability in demanding industrial environments, the SP-25 Series High Protection Communication Digital Pressure Switch combines rugged durability with smart factory connectivity. Built with an IP65 protection-rated enclosure, this controller effortlessly withstands dust ingress and multi-directional water jets, making it the perfect solution for harsh manufacturing zones. Beyond its physical resilience, the SP-25 seamlessly integrates into Industry 4.0 ecosystems via the standard MODBUS RS485 protocol, enabling centralized SCADA monitoring while intelligently retaining a traditional switching output for localized failsafe control.

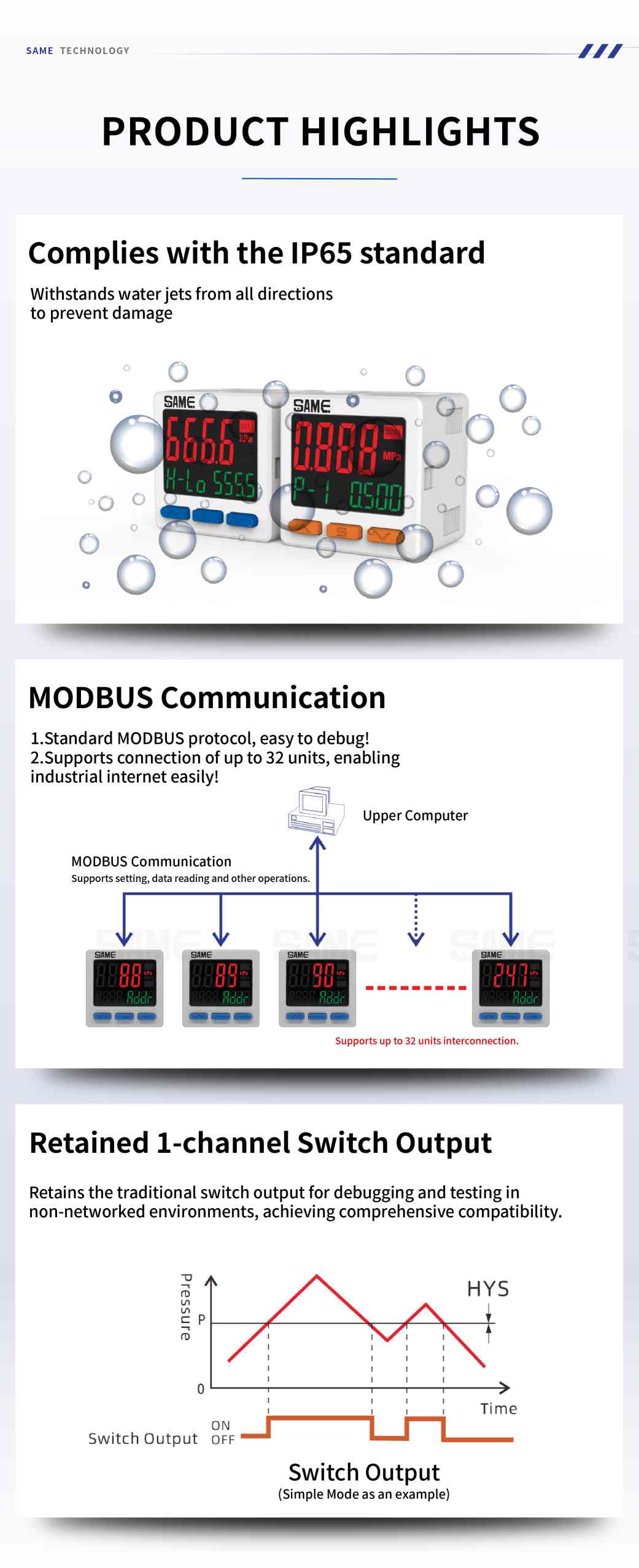

Strictly complies with IP65 standards, ensuring the internal electronics are fully shielded against low-pressure water jets and heavy industrial dust, extending the lifespan in aggressive environments.
Features native RS485 communication protocols allowing up to 32 discrete units to be daisy-chained for remote parameter configuration, continuous data reading, and centralized troubleshooting.

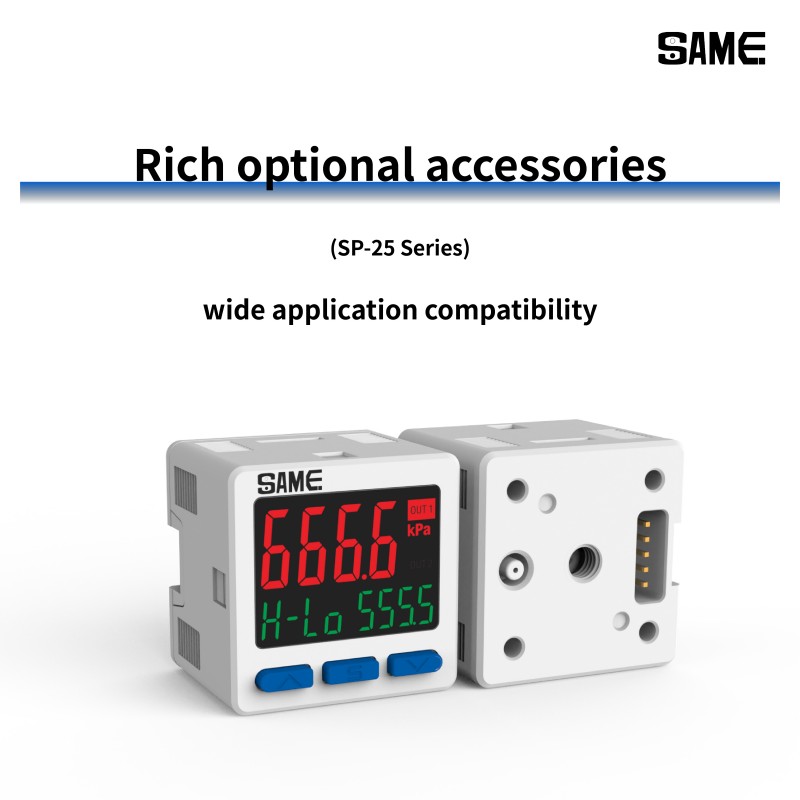

Boasts a rich selection of optional accessories and connection fittings (from M5 to RC1/8), backed by a hybrid output architecture that preserves 1-channel traditional switching alongside the digital bus.
| MODEL | High-Protection Universal Gas Type |
High-Protection Universal Fluid Type |
||||
| (Low Pressure) | (High Pressure) | (Low Pressure) | (High Pressure) | (Ultra-High Pressure Type) |
||
| Rated pressure range |
-101.3~101.3kPa | -0.101~1.000MPa | -101.3~101.3kPa | -0.101~1.000MPa | -0.101~2.500MPa | |
| Setting pressure range |
-105.0~105.0kPa | -0.105~1.000MPa | -105.0~105.0kPa | -0.105~1.000MPa | -0.105~2.500MPa | |
| Max withstand pressure |
500kPa | 1.5MPa | 500kPa | 1.5MPa | 5.0MPa | |
| Applicable Media |
Filtered air, Non-corrosive/Non-flammable gas Compliant with ISO8573-1:2010[7:4:4] |
Liquids or Gases Non-Corrosive to SUS304 and SUS316 |
||||
| Power supply voltage |
12~24V DC ±10% | |||||
| Current consumption |
≤45mA (With no load) | |||||
| Display Resolution Under Different Pressure Units |
kPa | 0.1 | 1 | 0.1 | 1 | 1 |
| MPa | - | 0.001 | - | 0.001 | 0.001 | |
| kgf/cm2 | 0.001 | 0.01 | 0.001 | 0.01 | 0.01 | |
| bar | 0.001 | 0.01 | 0.001 | 0.01 | 0.01 | |
| psi | 0.01 | 0.1 | 0.01 | 0.1 | 0.1 | |
| mmHg | 0.1 | - | 0.1 | - | - | |
| inchHg | 1 | - | 1 | - | - | |
| Comparative Output *1 |
NPN Open Collector Output
Max load current: 100mA Max supply voltage: 30V DC Internal voltage drop: 1.5V or less PNP Open Collector Output
Max load current: 100mA Max supply voltage: 24V DC Internal voltage drop: 1.5V or less |
|||||
| MODBUS Function *2 |
Yes | |||||
| Display Accuracy |
±2% F.S. ±1 digits (Operating temperature 25±3°C) |
|||||
| Repeatability | ±0.2% F.S. ±2 digits |
|||||
| Response time | 2.0ms, 50ms, 100ms 250ms, 500ms, 2000ms 3000ms, 5000ms Optional |
|||||
| Display | 3 color (Red/Green/Yellow Orange) Display (Sampling rate: 4 times/1sec) | |||||
| Temp. Characteristics |
±2% F.S. detected pressure (25°C) at temperature range of 0~50 °C | |||||
| Operating Environment |
0~50°C (No condensation/icing) ; 35~85%RH (No water droplets) | |||||
| Storage Environment |
-10~50°C (No condensation/icing) ; 35~85%RH (No water droplets) | |||||
| Protection | IP65 | |||||
| Pressure port | M5 Female Thread | R2: Ext 1/4, Int M5 S: SCR1/4 face-seal, compatible with VCR 1/4 |
||||
| Weight | 70g | 110g | ||||
| Accessories | 1 terminal power cable, 1 user manual | |||||
Industrial network topology relies on correct RS485 polarization. Ensure the White wire (485A) and Orange wire (485B) are consistently routed throughout your daisy chain to guarantee stable remote reading from the upper PLC, while leveraging the Black wire for immediate local load switching.

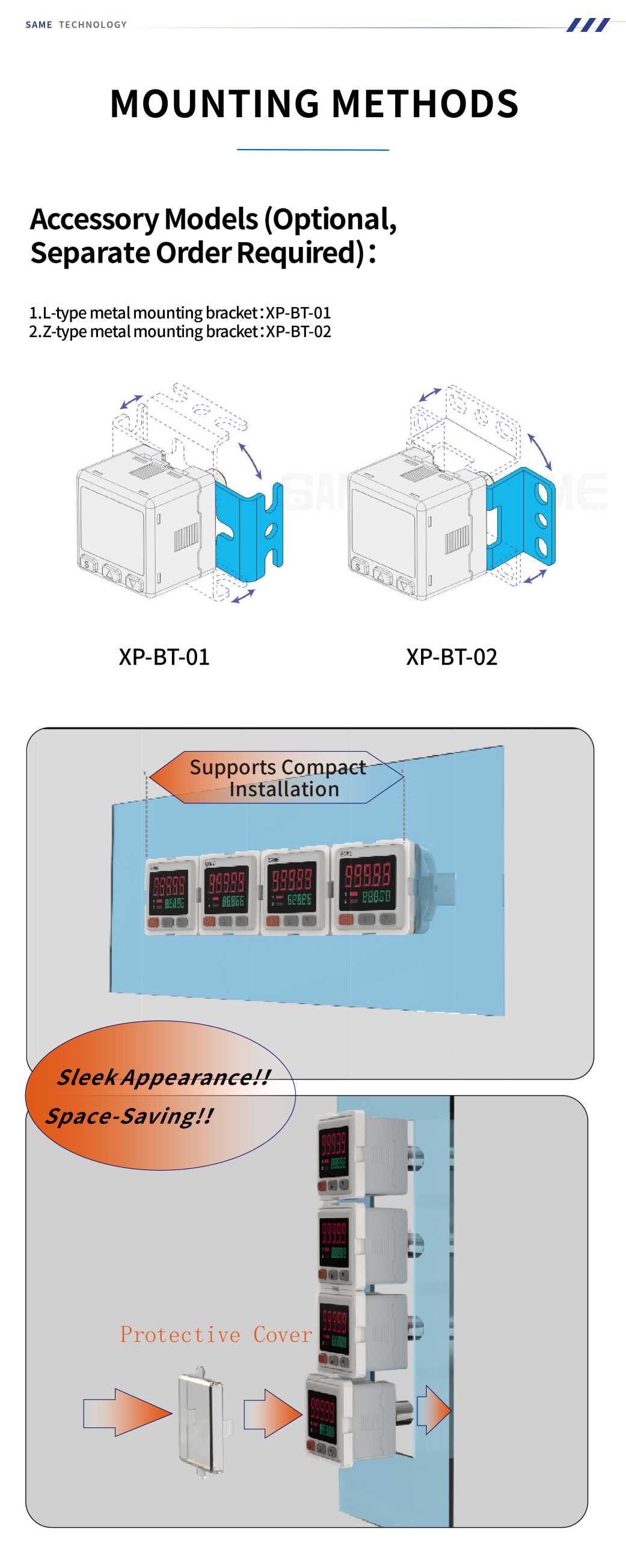

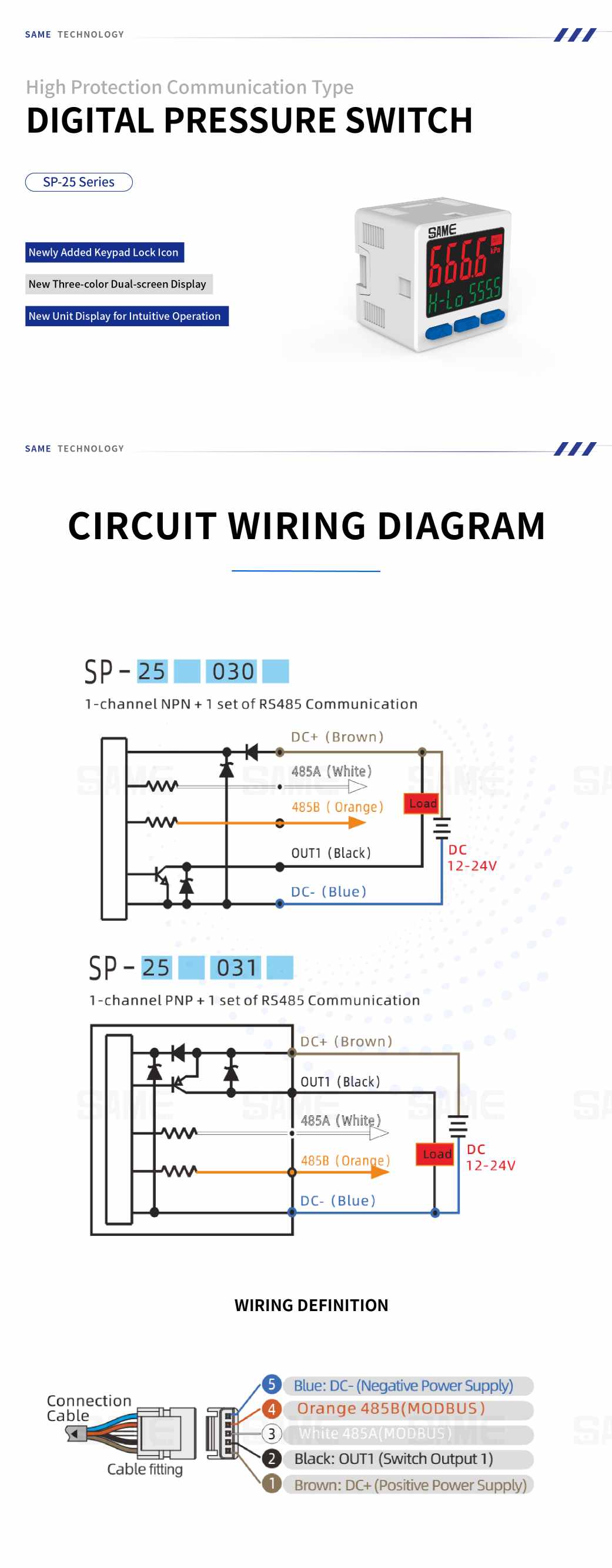

Wiring Definitions & Bracket Accessories:
The SP-25 bridges the physical toughness required on the factory floor with the digital intelligence necessary for centralized enterprise management:
A: The IP65 rating signifies that the switch enclosure is completely "dust tight" and protected against "low-pressure water jets" from any direction. This makes it highly reliable in wet, dusty, or washdown-heavy factory environments.
A: Using the standard MODBUS protocol, you can reliably interconnect up to 32 units on a single daisy-chain bus, streaming data directly back to your central upper computer or PLC for comprehensive smart manufacturing integration.
A: Retaining the 1-channel discrete output ensures absolute failsafe operation. It guarantees that critical hardware thresholds can trigger immediate local safety actions, even if the industrial network experiences latency or downtime.
Engineered for advanced industrial networking, this IP65-rated universal fluid digital pressure switch utilizes a robust stainless steel diaphragm to deliver precise, ultra-low leakage monitoring for general and corrosive media. Featuring standard MODBUS RS485 communication, it seamlessly interconnects up to 32 units, ensuring highly reliable data acquisition and streamlined upper computer integration for your automation systems.
