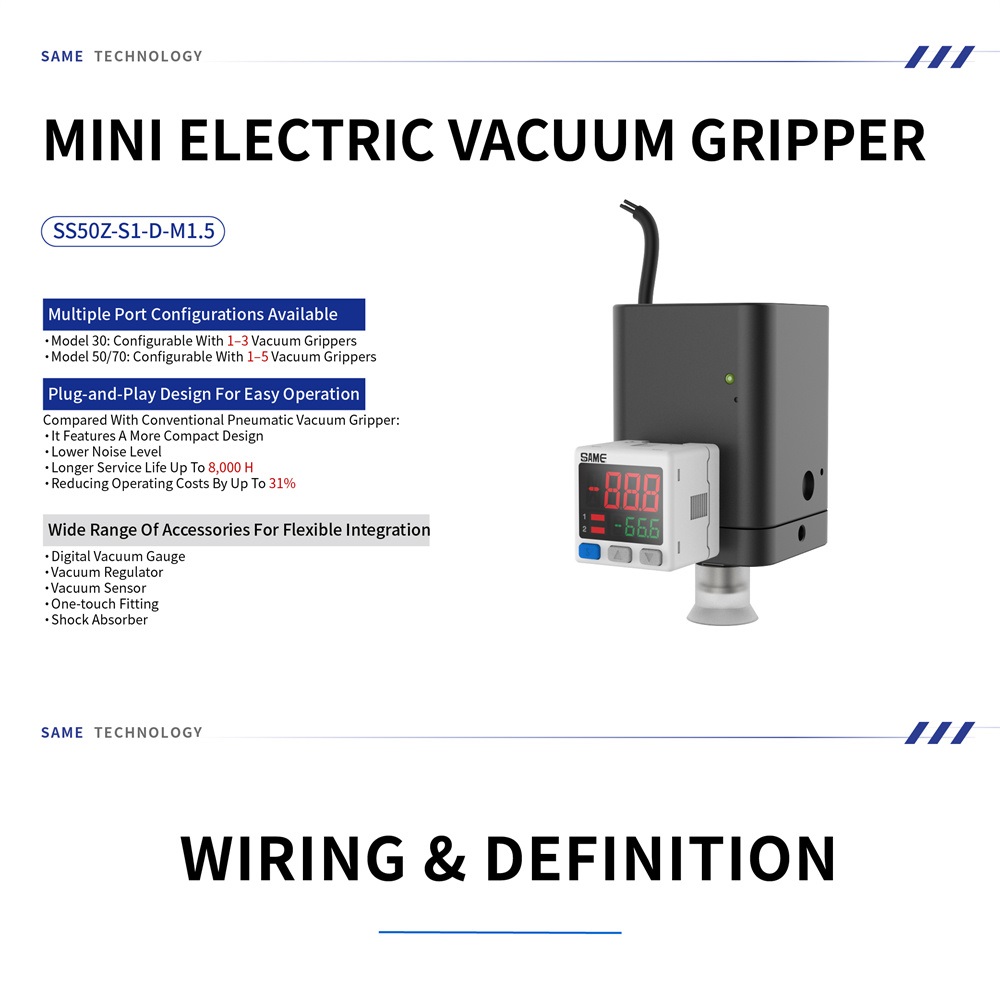

Engineered for versatile industrial manufacturing, this compact electric vacuum gripper delivers reliable plug-and-play performance without the need for complex air supplies. Equipped with flexible 1-to-5 port configurations and intelligent accessories, it ensures precise handling for electronics, packaging, and collaborative robot applications.
Model :
SS50ZSize :
50*50*70mmFlow :
≥1.2L/minVacuum Pressure :
-0.06MpaPositive Pressure :
0.1MpaWeight :
360gMax load :
6KgVoltage :
DC-24VCurrent :
0.1APower :
2.4WControl Mode :
I/O or RelayEngineered for next-generation robotic automation, the SS50Z Series Mini Electric Vacuum Gripper provides a decentralized, all-electric handling solution that completely bypasses the limitations of traditional pneumatic systems. By integrating the vacuum generator directly at the End-of-Arm Tooling (EOAT), this compact module eliminates the reliance on bulky external air compressors and complex routing of air hoses. Outfitted with a 1.5m flexible cable and intelligent operation indicators, it delivers whisper-quiet operation and an exceptional 8,000-hour service lifespan. Whether deployed in cleanroom environments or dynamic assembly lines, it effectively slashes operating costs by up to 31% while maximizing handling precision.

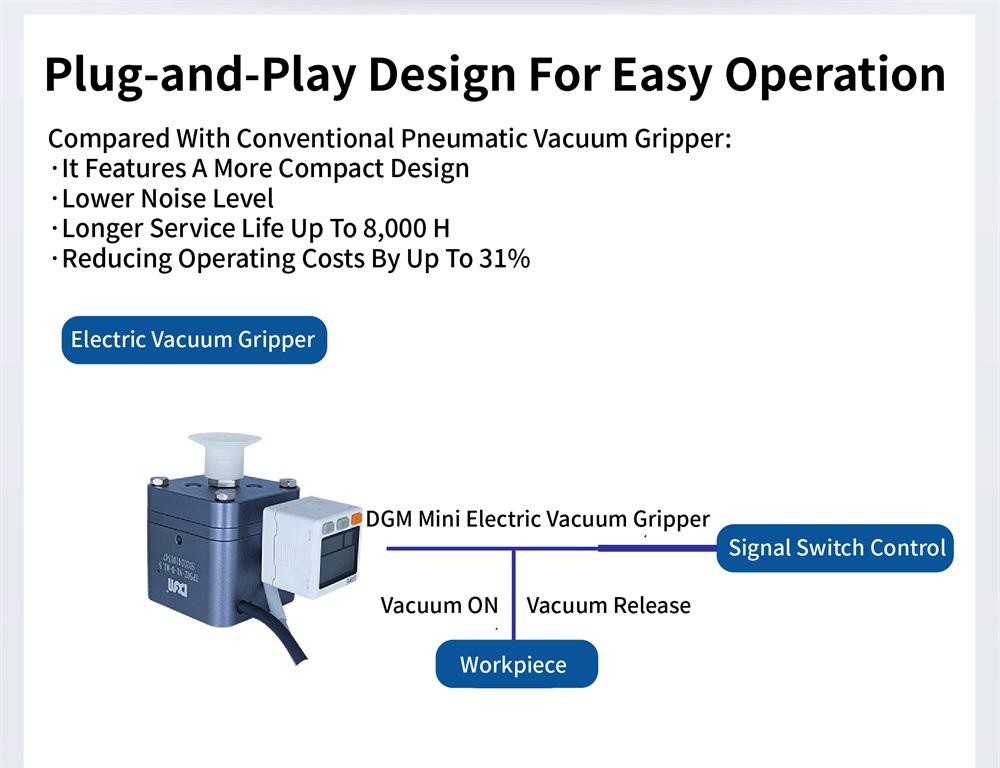

Achieve true plug-and-play capability. By removing external pneumatic dependencies, this gripper minimizes energy loss, reduces workshop decibels, and drastically simplifies robotic arm programming and integration.

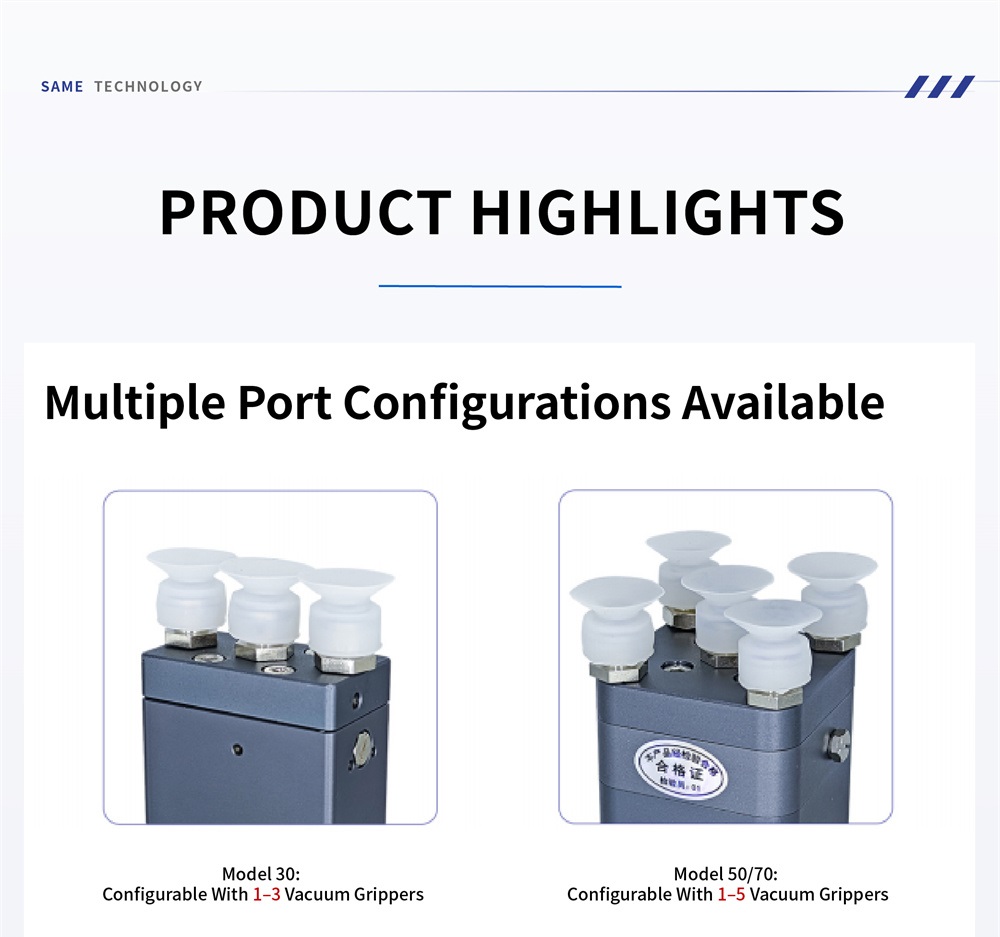

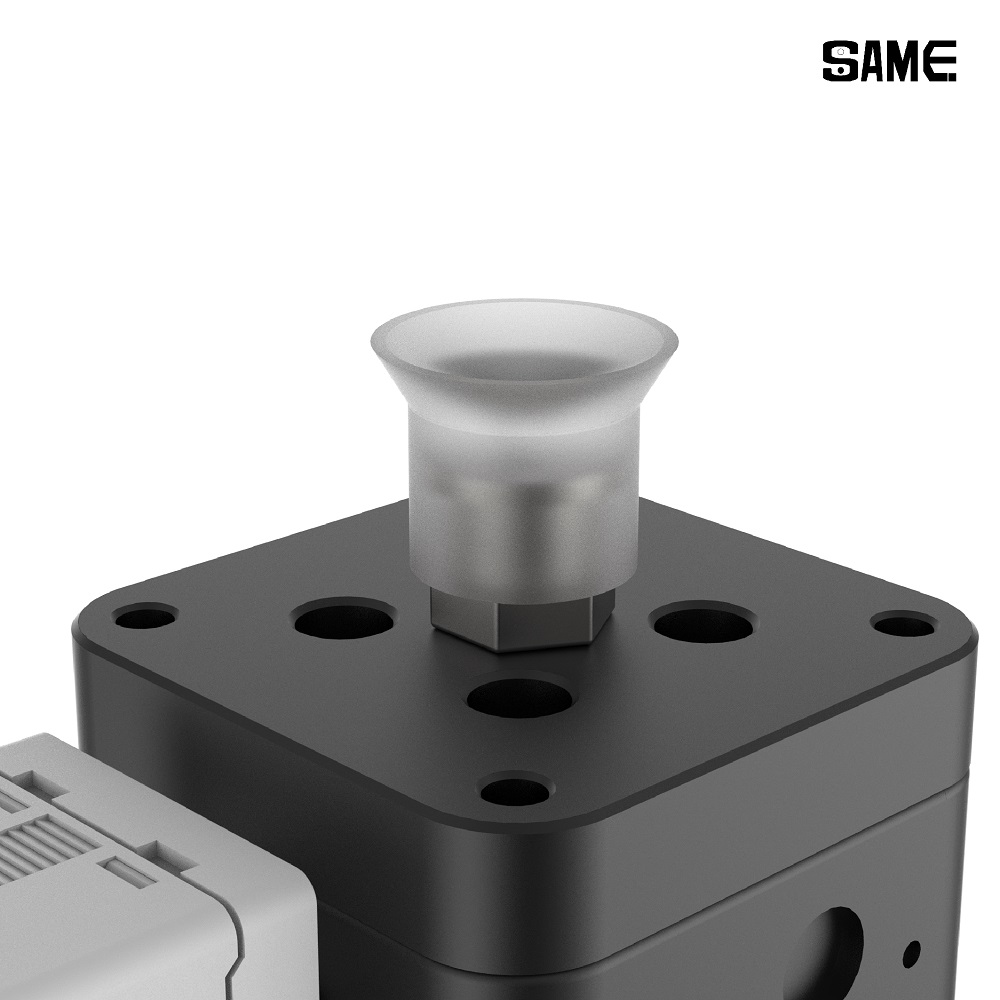

Customization at its core. The structural block accommodates flexible arrays: utilize 1 to 3 suction cups (Model 30) or scale up to 1 to 5 cups (Model 50/70) to safely grip diverse workpiece geometries and weights.
Built for 24/7 manufacturing cycles. The internal electro-mechanical design boasts an impressive 8,000-hour longevity, translating to minimal downtime and up to 31% savings in overall operational expenditure.
| Base Series | SS50Z-S1 / SS30 Series Mini Electric Vacuum Gripper |
| Hardware Features |
Equipped with a 1.5m Flexible Cable for optimal robotic arm routing. Built-in LED Operation Indicator and Vacuum Release Indicator. |
| I/O Wiring Map |
DC 24V+ (Brown): Main power supply positive terminal DC 24V- (Blue): Main power supply negative terminal Signal (Black / Yellow-Green): Trigger for vacuum release mechanism |
| ROI & Durability | Reduces OPEX by up to 31% | Certified continuous operation up to 8,000 Hours |
| MODEL | Motor | Size(mm) | Flow(L/min) | Vacuum Pressure(Mpa) | Positive Pressure(Mpa) | Weight(g) | Max load(kg) | Voltage(V) | Current(A) | Power(W) | Control Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS50Z-S1-M1.5 | / | 50*50*70 | ≥1.2 | -0.06 | 0.1 | 360 | 6 | DC-24 | 0.1 | 2.4 | I/O or Relay |
| SRS70Z-S1-ST | 42 Open-loop Stepping |
60*60*150 | ≥3 | -0.07 | 0.1 | 698 | 5 | DC-24 | 2.7 | 64.8 |

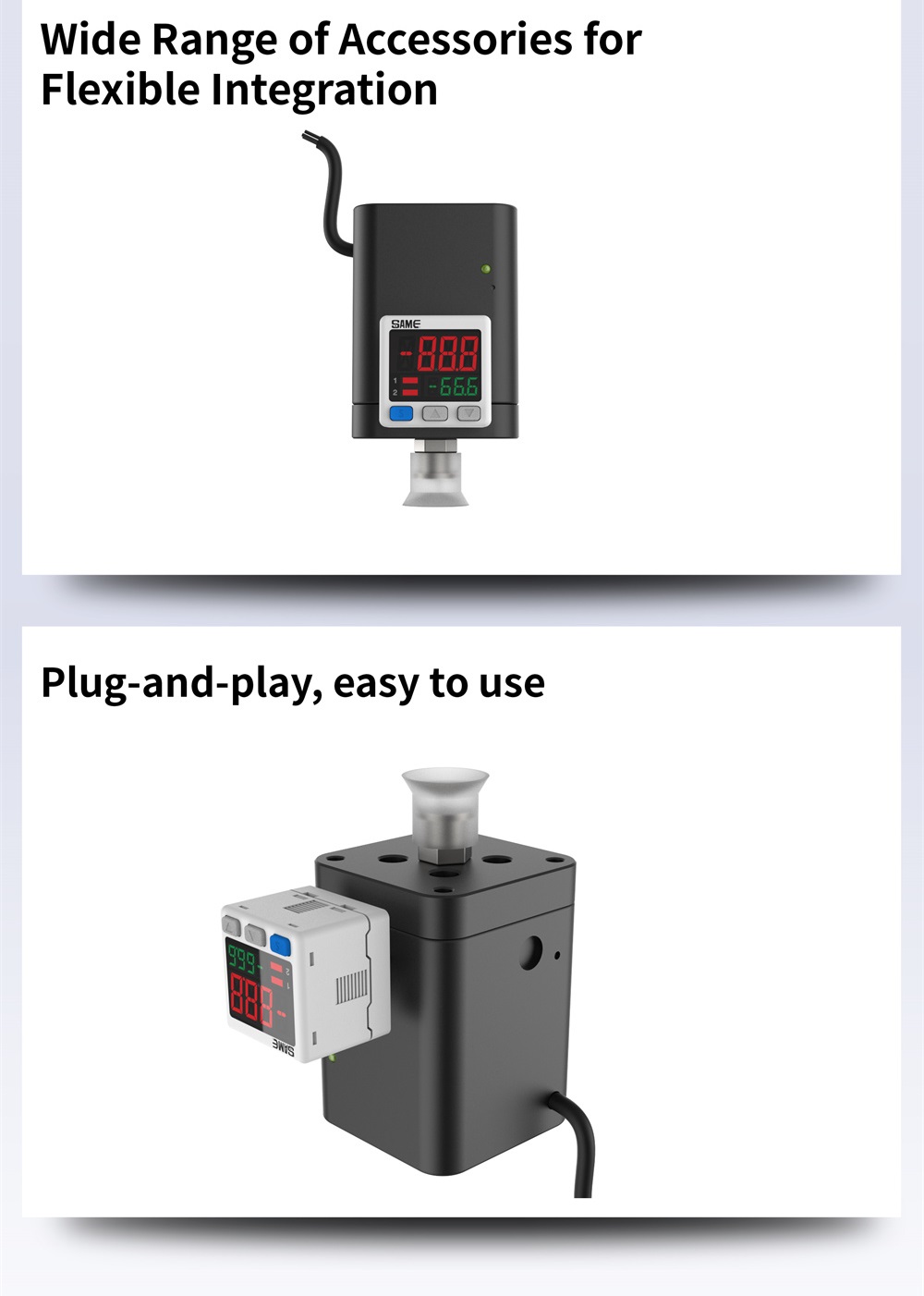

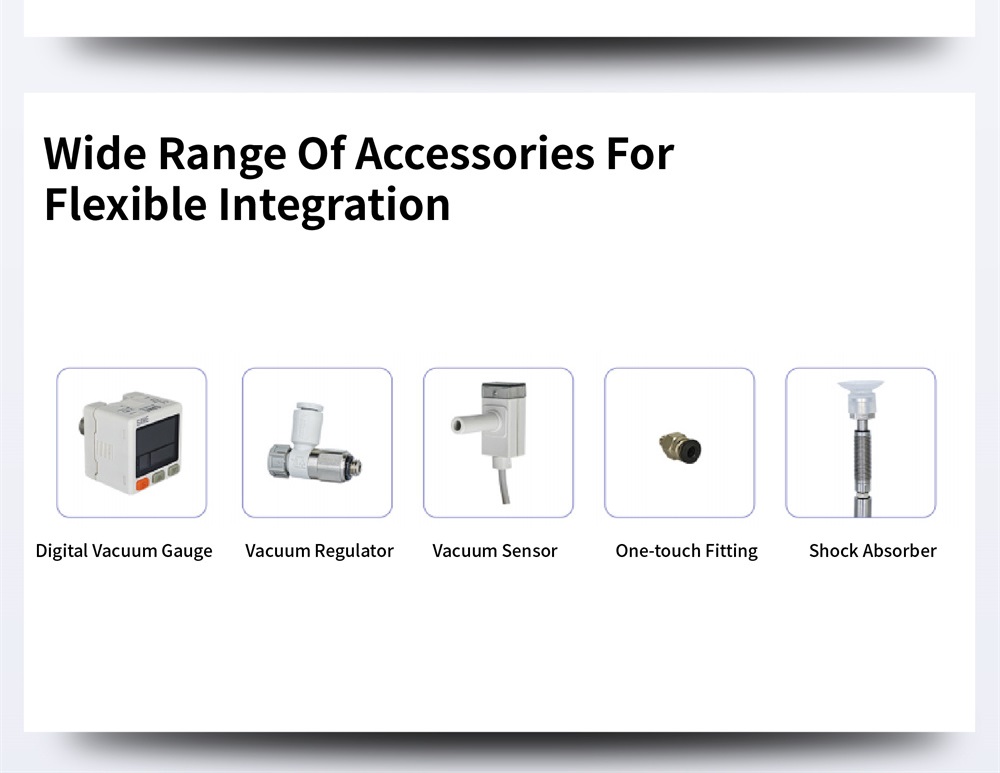

Enhance the functionality and monitoring capabilities of your gripper with our full suite of compatible add-ons, tailored for high-precision environments:

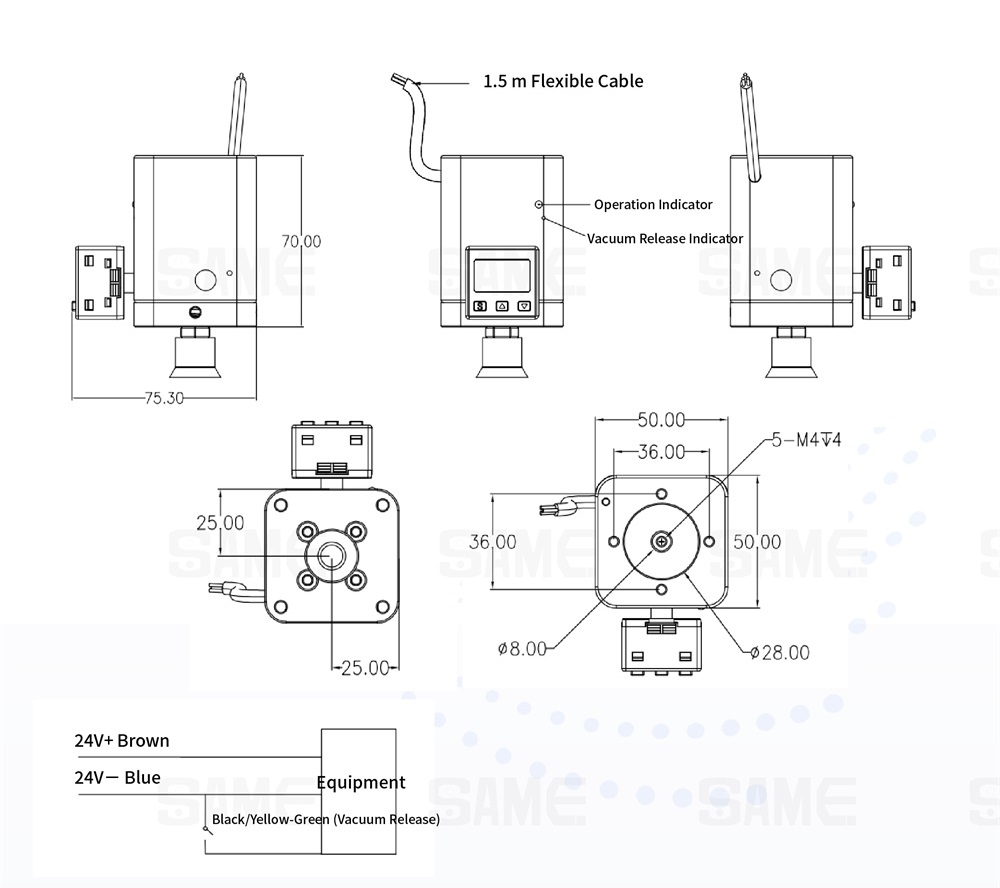

Designed with system integrators in mind, the body features standardized mounting holes and an ultra-compact footprint (e.g., 75.30mm x 70.00mm profile) to ensure collision-free motion on high-speed delta and collaborative robots.

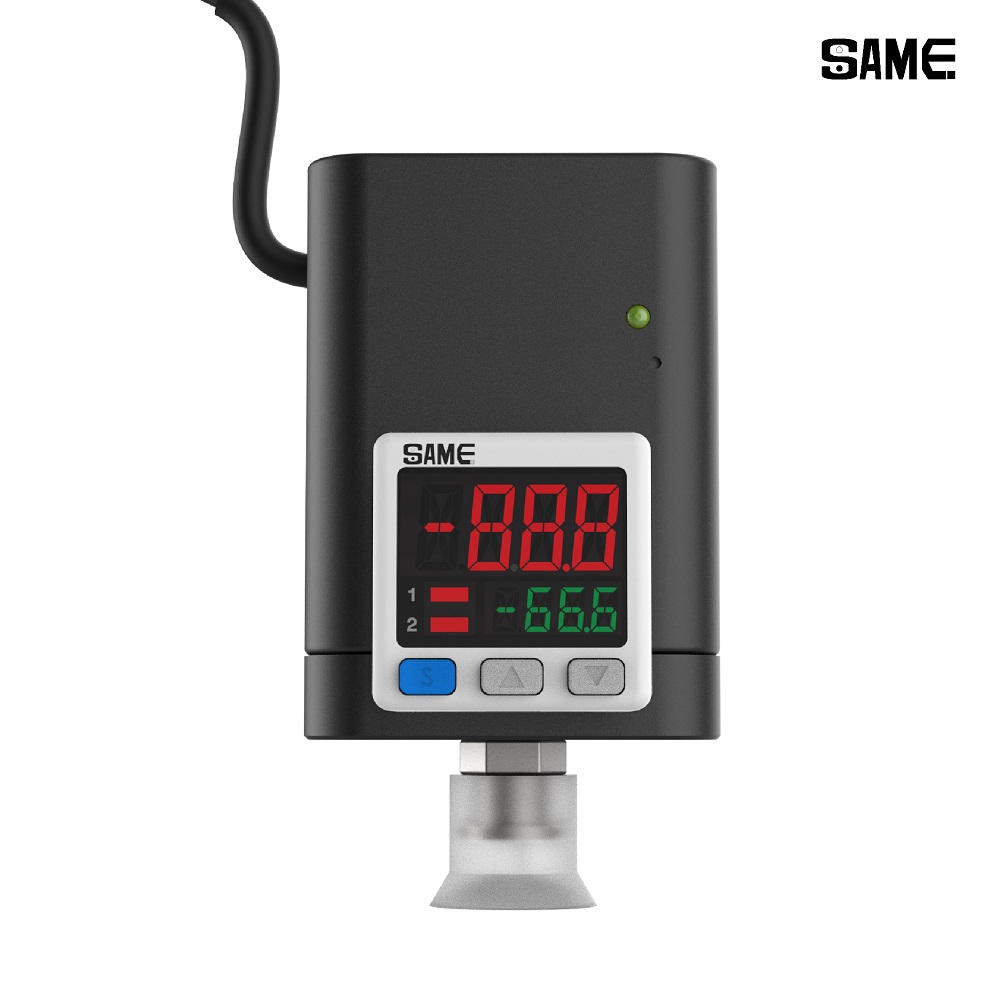

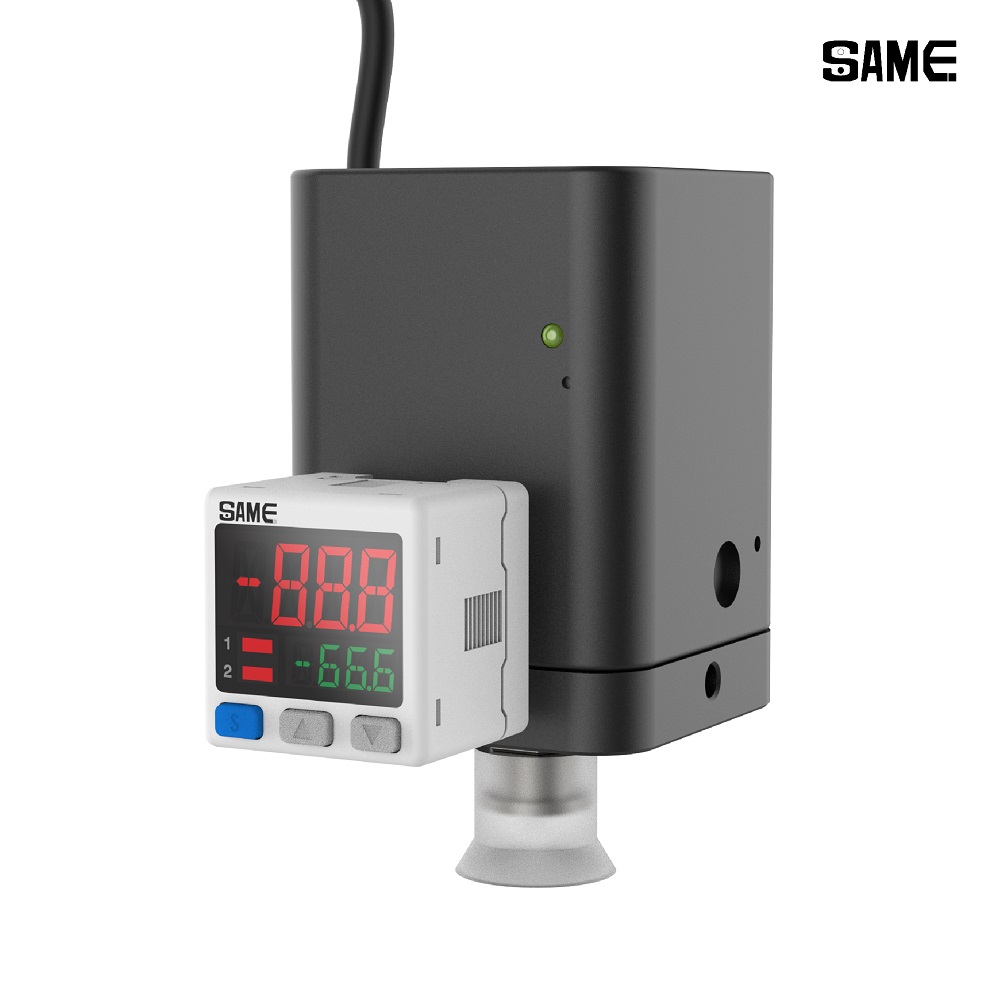

A: The SS50Z series features integrated LED indicators on the body for instant visual feedback on operation and vacuum release. For precise data, you can seamlessly attach our optional Digital Vacuum Gauge, which provides real-time pressure readouts for quality control.
A: The system uses a straightforward digital logic setup. Using the provided 1.5m flexible cable, the Black (or Yellow-Green) wire serves as the signal switch control. Activating this circuit instantly neutralizes the vacuum, allowing for the rapid and precise drop-off of the workpiece.

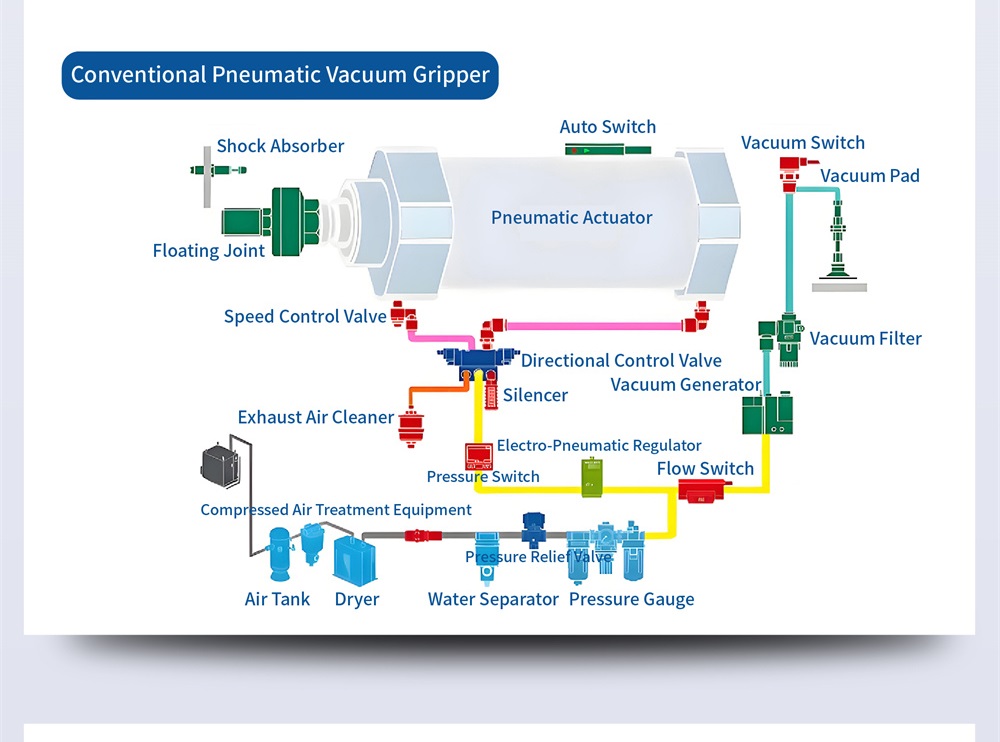

A: Absolutely. This product is designed to replace the conventional combination of air compressors, directional control valves, silencers, and bulky air tubes. By going all-electric, you significantly cut down on maintenance, reduce ambient noise, and lower your energy and operating costs by up to 31%.
Designed as a highly efficient upgrade from conventional pneumatic systems, this compact Mini Electric Vacuum Gripper features plug-and-play operation and versatile multi-port configurations for seamless integration. It delivers reliable automated handling with an 8,000-hour service life, significantly lowering noise levels and reducing operating costs by up to 31%.
