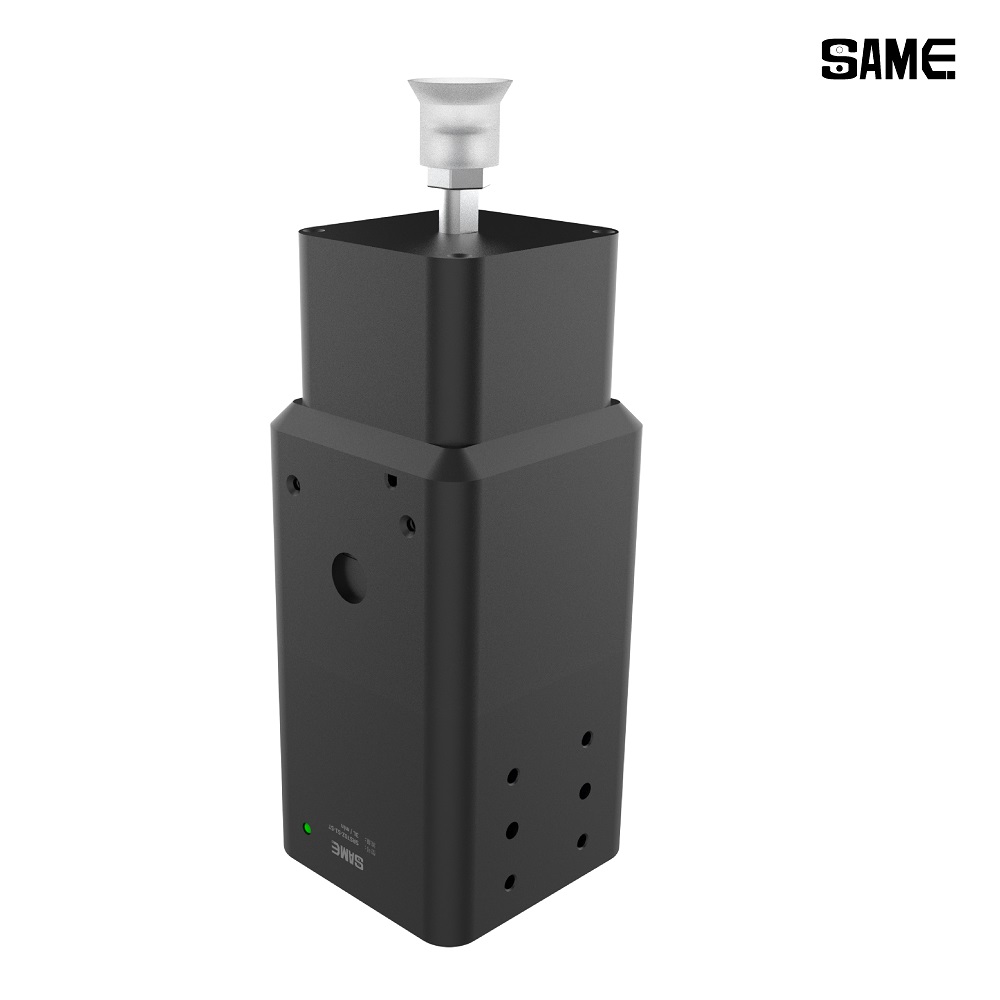

Designed as a highly efficient upgrade from conventional pneumatic systems, this compact Mini Electric Vacuum Gripper features plug-and-play operation and versatile multi-port configurations for seamless integration. It delivers reliable automated handling with an 8,000-hour service life, significantly lowering noise levels and reducing operating costs by up to 31%.
Model :
SRS70ZSize :
60*60*150mmFlow :
≥3L/minVacuum Pressure :
-0.07MpaPositive Pressure :
0.1MpaWeight :
698gMax load :
5KgVoltage :
DC-24VCurrent :
2.7APower :
64.8WControl Mode :

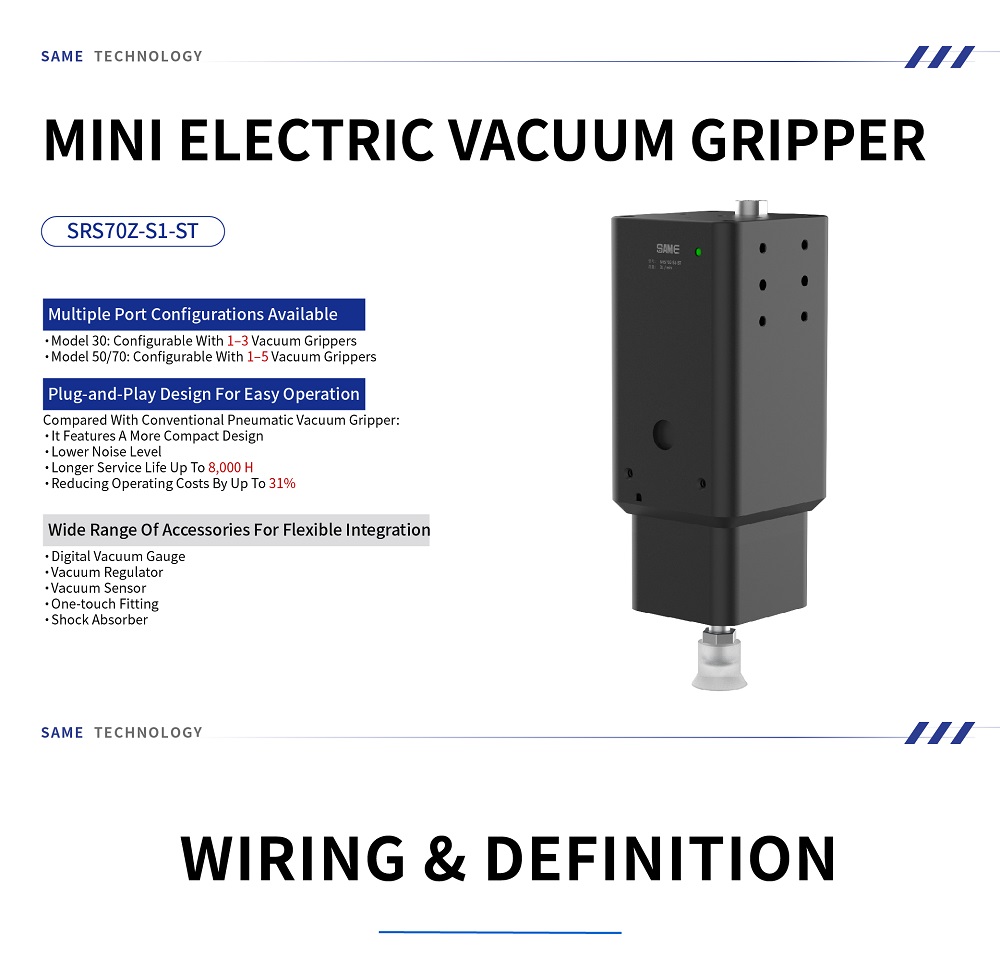

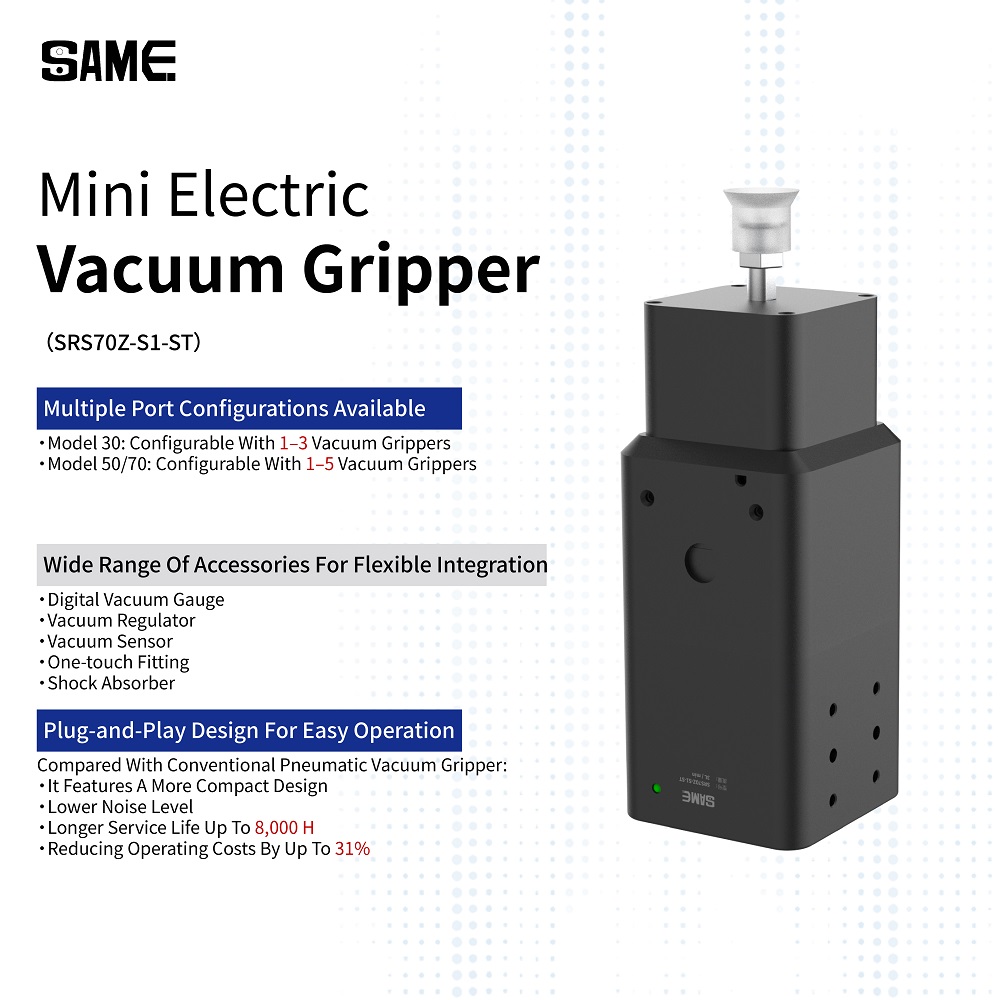

I/O or RelayDesigned to revolutionize automated handling, the SRS70Z-S1-ST Mini Electric Vacuum Gripper is a highly efficient, plug-and-play solution that seamlessly replaces conventional pneumatic vacuum systems. Featuring a compact footprint, this electric gripper eliminates the need for complex air tubes and external compressors, significantly reducing noise levels and saving valuable workspace. With multiple port configurations, a long service life of up to 8,000 hours, and the ability to reduce operating costs by up to 31%, it is the ultimate End-of-Arm Tooling (EOAT) choice for flexible robotic integration, pick-and-place tasks, and smart manufacturing.

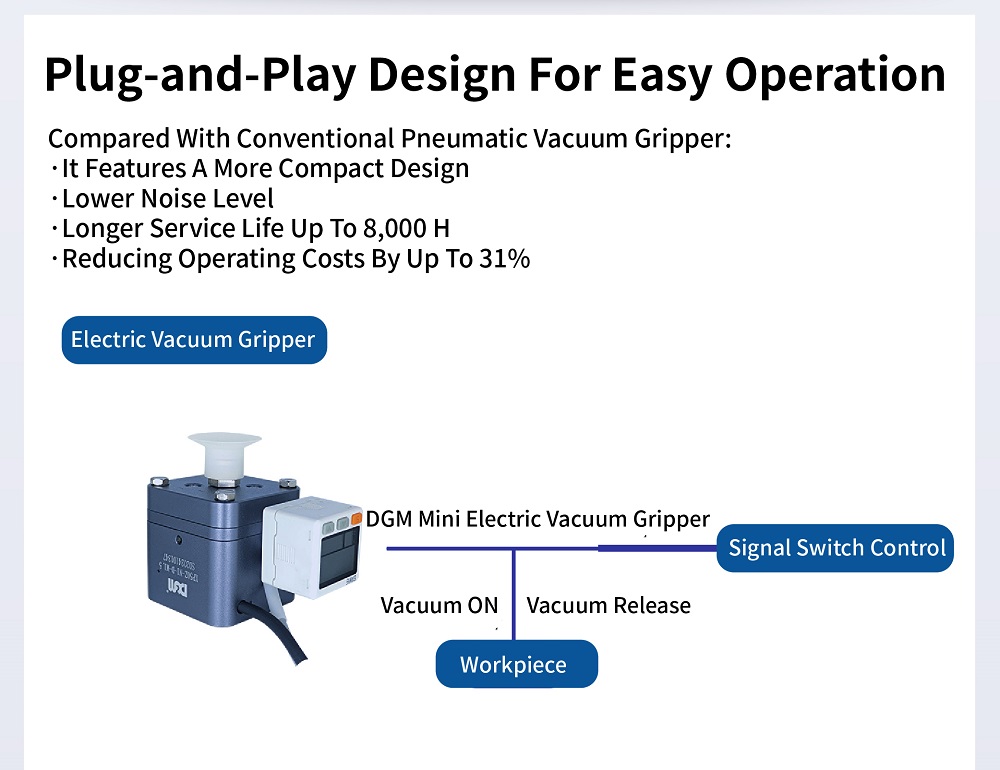

Compared with conventional pneumatic grippers, it features a more compact design and effortless setup. It effectively lowers noise levels and reduces operating costs by up to 31%.

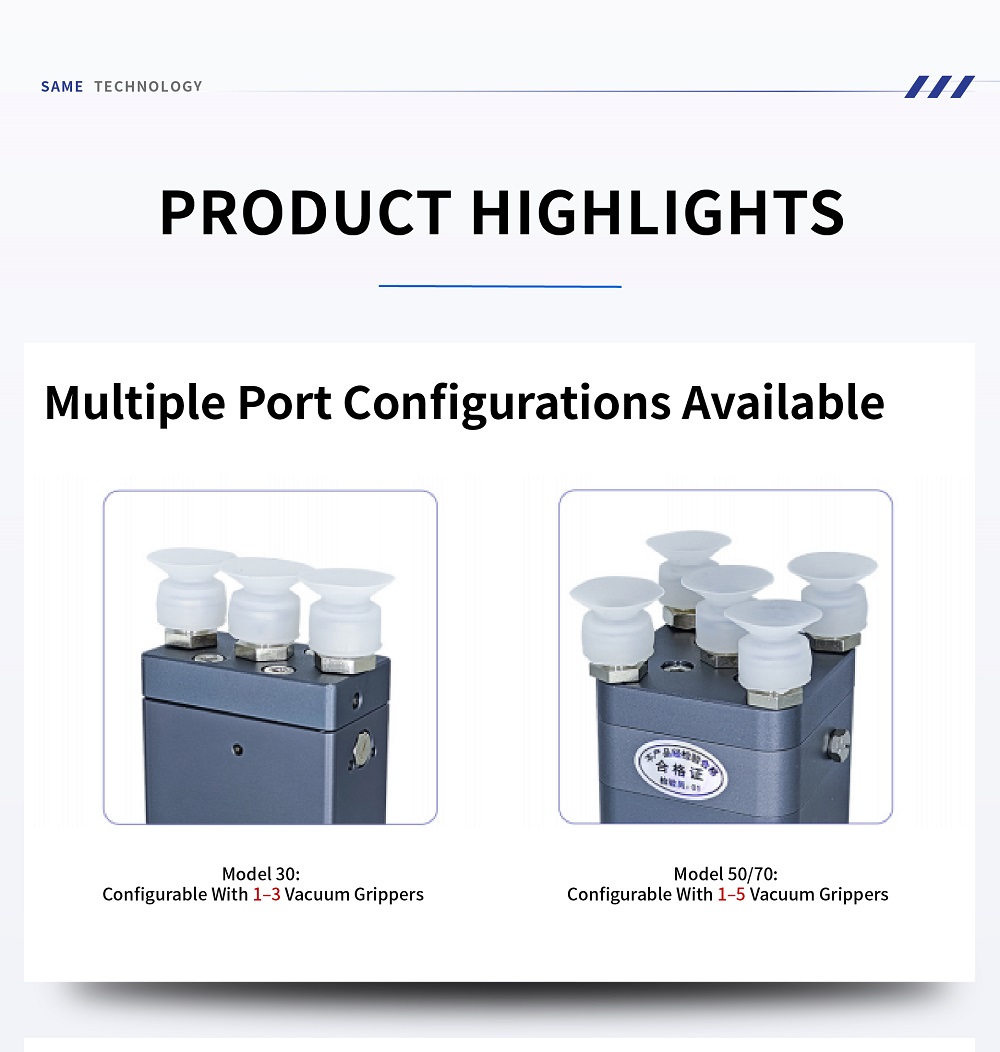

Highly adaptable to different workpieces. Model 30 is configurable with 1–3 vacuum grippers, while Model 50/70 supports 1–5 vacuum grippers for broader surface handling.
Engineered for durability and continuous industrial operation, the internal mechanics provide a remarkably long service life of up to 8,000 hours with minimal maintenance required.
| Product Model | SRS70Z-S1-ST Mini Electric Vacuum Gripper |
| Port Configurations |
Model 30: Configurable with 1–3 Vacuum Grippers Model 50/70: Configurable with 1–5 Vacuum Grippers |
| Wiring Definition |
Brown Wire: 24V+ (Positive Power Supply) Blue Wire: 24V- (Negative Power Supply) Black / Yellow-Green Wire: Vacuum Release Control |
| Performance Benefits | Longer service life up to 8,000 H | Reducing operating costs by up to 31% |
| MODEL | Motor | Size(mm) | Flow(L/min) | Vacuum Pressure(Mpa) |
Positive Pressure(Mpa) |
Weight(g) | Max load(kg) | Voltage(V) | Current(A) | Power(W) | Control Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS50Z-S1-M1.5 | / | 50*50*70 | ≥1.2 | -0.06 | 0.1 | 360 | 6 | DC-24 | 0.1 | 2.4 | I/O or Relay |
| SRS70Z-S1-ST | 42 Open-loop Stepping |
60*60*150 | ≥3 | -0.07 | 0.1 | 698 | 5 | DC-24 | 2.7 | 64.8 |

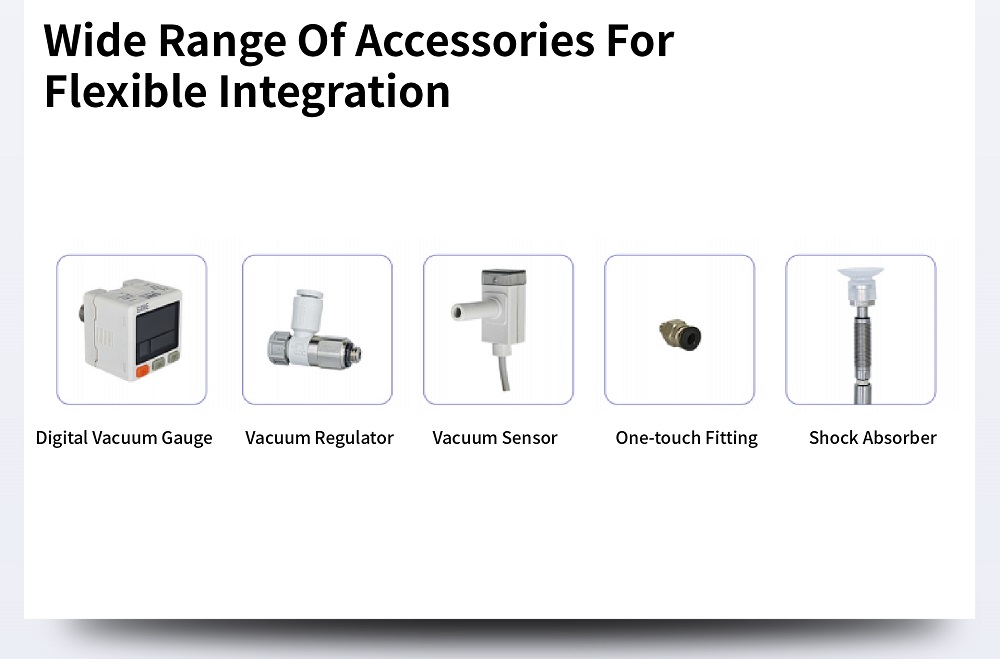

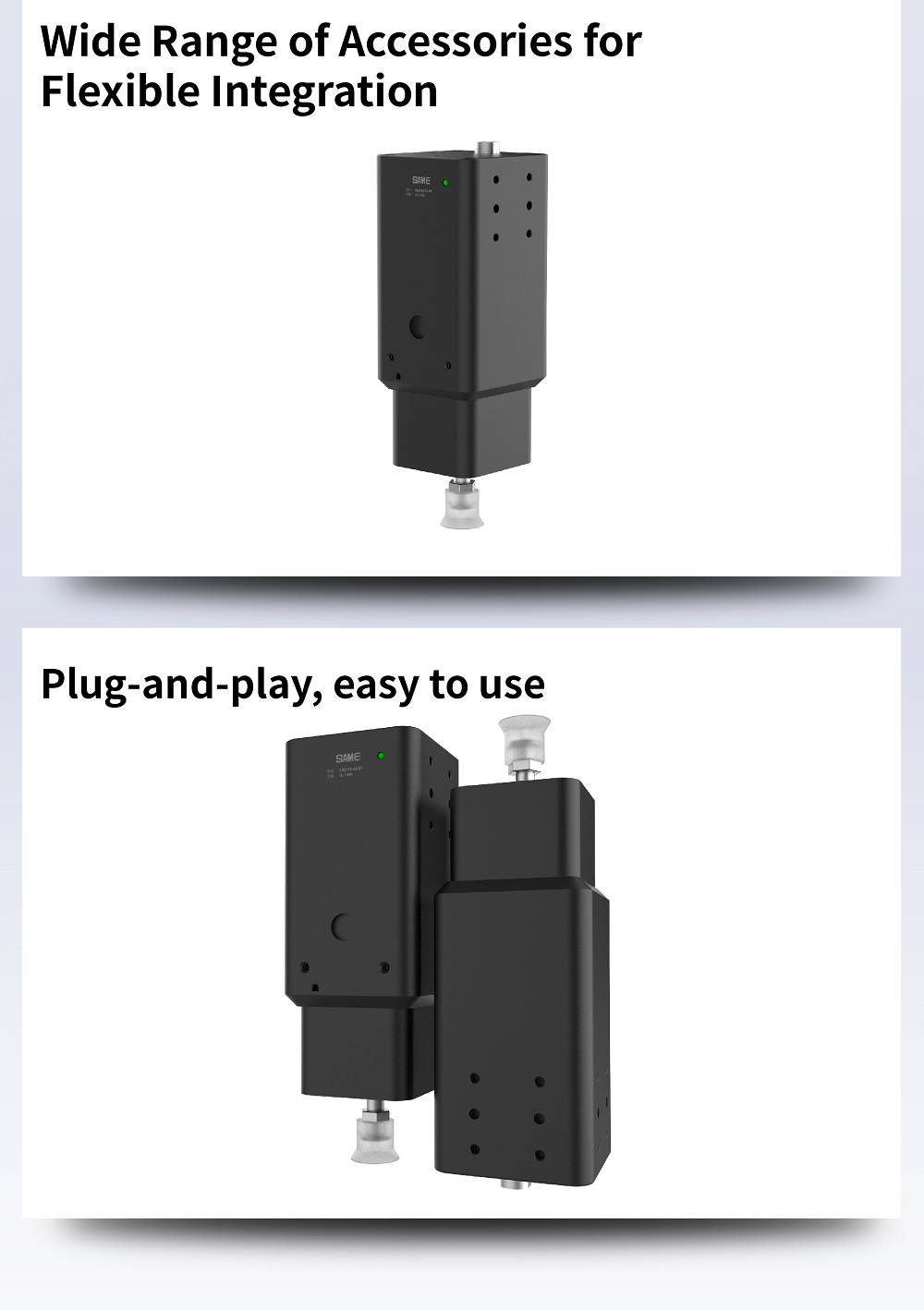

Customize your robotic end-effector to perfectly match your handling requirements. We offer a comprehensive suite of modular accessories:

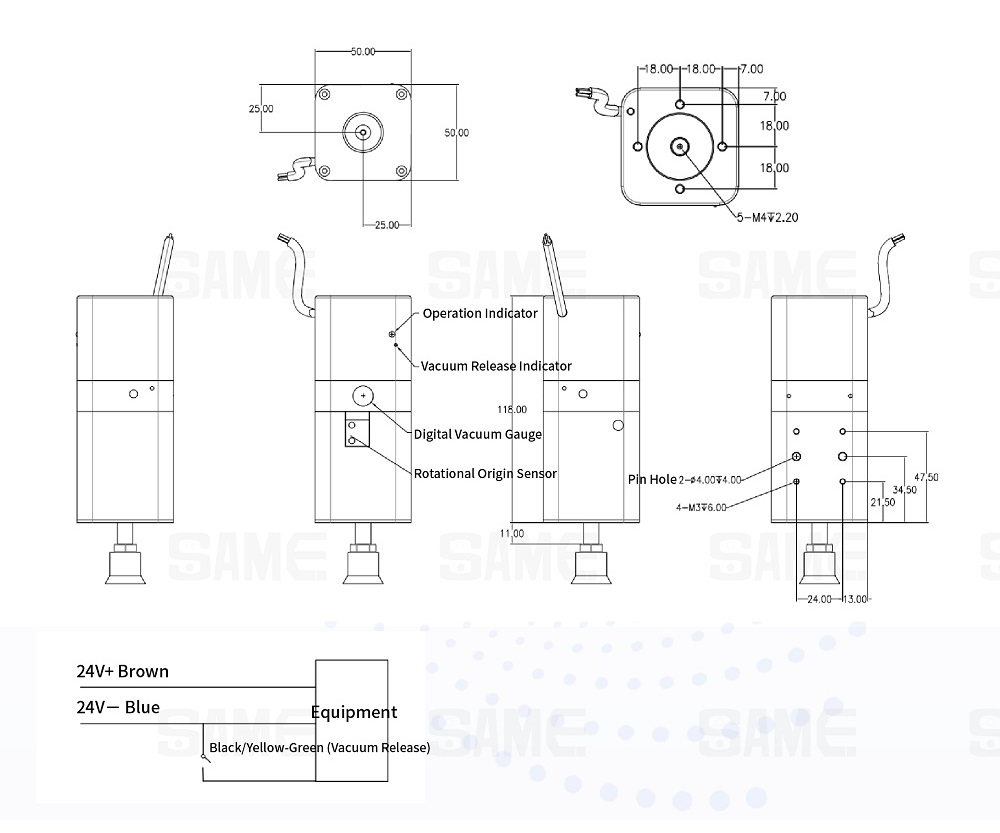

The integrated design includes operation indicators, vacuum release indicators, and a rotational origin sensor built directly into the compact frame for easy monitoring.

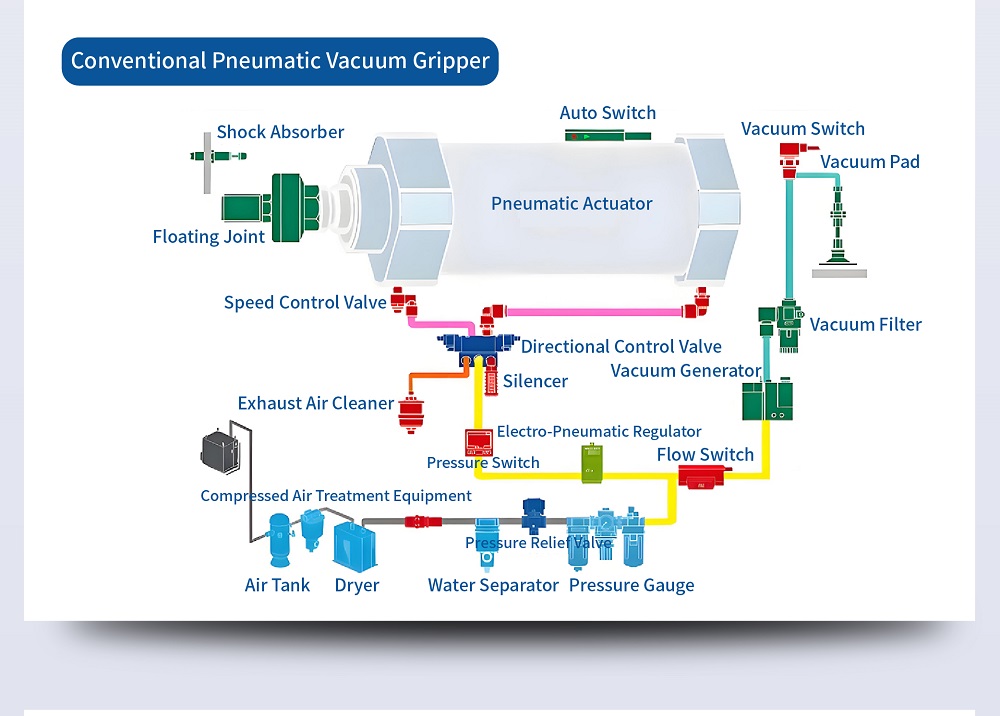

A: Our mini electric vacuum gripper features a plug-and-play design that eliminates the need for bulky air compressors, hoses, and directional control valves. This leads to a much lower noise level, an 8,000-hour service life, and reduces your overall operating costs by up to 31%.
A: It depends on the model you select. The Model 30 is highly compact and supports 1 to 3 vacuum grippers. For handling larger or heavier items, the Model 50/70 can be configured with 1 to 5 vacuum grippers.
A: The device operates on standard 24V DC (Brown wire for 24V+, Blue wire for 24V-). The vacuum release is seamlessly managed via a dedicated signal switch control line (Black / Yellow-Green wire).
Designed as a highly efficient upgrade from conventional pneumatic systems, this compact Mini Electric Vacuum Gripper features plug-and-play operation and versatile multi-port configurations for seamless integration. It delivers reliable automated handling with an 8,000-hour service life, significantly lowering noise levels and reducing operating costs by up to 31%.
Engineered for versatile industrial manufacturing, this compact electric vacuum gripper delivers reliable plug-and-play performance without the need for complex air supplies. Equipped with flexible 1-to-5 port configurations and intelligent accessories, it ensures precise handling for electronics, packaging, and collaborative robot applications.
