Selected criteria :
  • Differential Pressure & Communication Type Digital Pressure Switch SP-16 Series Differential Pressure & Communication Type Digital Pressure Switch SP-16 Series
    Product Series: SP-16: Differential Pressure Communication Type
    Signal Output Type: 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure fitting Type: MM: Dual air nozzle fitting female M5 thread
    Air Pressure Input Range: CA:-500~500.0Pa | CC:-2.000~2.000kPa(Not available temporarily) | CD:-5.000~5.000kPa | CE:-10.000~10.000kPa | CF:-40.000kPa~40.000kPa | CG:-100.00kPa~100.00kPa | CB:-1000.0~1000.0Pa
  • Multi Channel Pneumatic Pressure Monitor Intelligent Multi-Channel Pneumatic Pressure Monitoring System SP-90 Series
    Product Series: SP-90 Intelligent Pneumatic Pressure Monitoring System
    Negative Pressure Input: 2-Channel Negative Pressure Input | 3-Channel Negative Pressure Input | 4-Channel Negative Pressure Input | -101.3~101.3kPa(Low-Pressure Type)
    Positive Pressure Input: -0.101~1.000MPa(High-Pressure Type) | 1-Channel Positive Pressure Input | 2-Channel Positive Pressure Input
    Supply Voltage: DC12~24V±10%
    Output Voltage: NPN output:0 V; PNP output: 24V
  • High-Precision PID Diaphragm Pressure Gauge Intelligent High-Stability Diaphragm Pressure Gauge (SP-80 Series)
    Product Series: SP-80: Diaphragm Pressure Gauge
    Signal Output Type: 2 NPN Outputs | 2 PNP Outputs | 2 NPN Outputs + 1 Analog Output | 2 PNP Outputs + 1 Analog Output
  • Heavy Duty Digital Pressure Switch High Protection Communication Type Digital Pressure Switch (SP-25 Series)
    Signal Output Type: 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure Input Range: C:-101.3~101.3kPa(Low pressure type) | P:-0.101~1.000MPa(High pressure type)
    Air Pressure fitting Type: C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbow | M: Internal M5 | R2: Internal M5 + external R1/4 | RC: Internal RC1/8 (bidirectional) | R: Internal M5 + external R1/8
  • Digital Pneumatic Pressure Switch High-precision Communication Digital Pressure Switch (SP-18 Series)
    Signal Output Type: 010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current output | 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure Input Range: L: -10.00~10.00kPa (Small-range Model) | C: -100.00~100.00kPa (Low-pressure Model) | P: -100.00~999.99kPa (High-pressure Model)
    Air Pressure fitting Type: R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbow
  • Digital Pressure Switch Factory Digital Pressure Switch with MODBUS RS485 Communication(SP-15 Series)
    Signal Output Type: 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure Input Range: L: -10~10kPa (Small-range Model) | C: -101.3~101.3kPa (Low-pressure Model) | P: -0.101~1.000MPa (High-pressure Model)
    Air Pressure fitting Type: R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbow

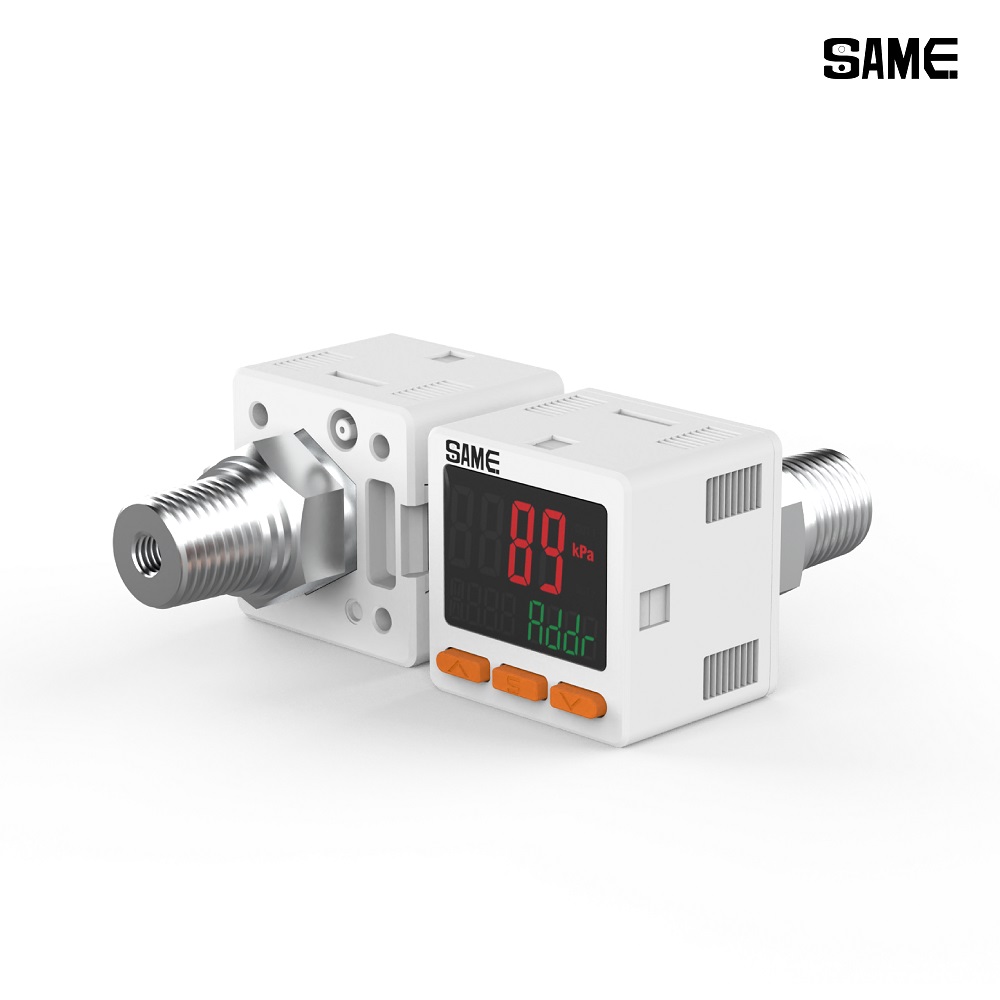

  • MODBUS RS485 Digital Pressure Switch IP65 Universal Fluid Communication Type Digital Pressure Switch (SP-75/75S Series)
    Signal Output Type: 030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communication
    Air Pressure Input Range: C:-101.3~101.3kPa(Low pressure type) | P:-0.101~1.000MPa(High pressure type) | H:-0.101~2.5MPa(Ultra-high Pressure Type)
    Connection Type: R2:Internal M5+External R1/4 | R2L:Right-angle Elbow Bottom Outlet Port Internal M5 + External R1/4 | S:SCR face seal fitting compatible with VCR standard
