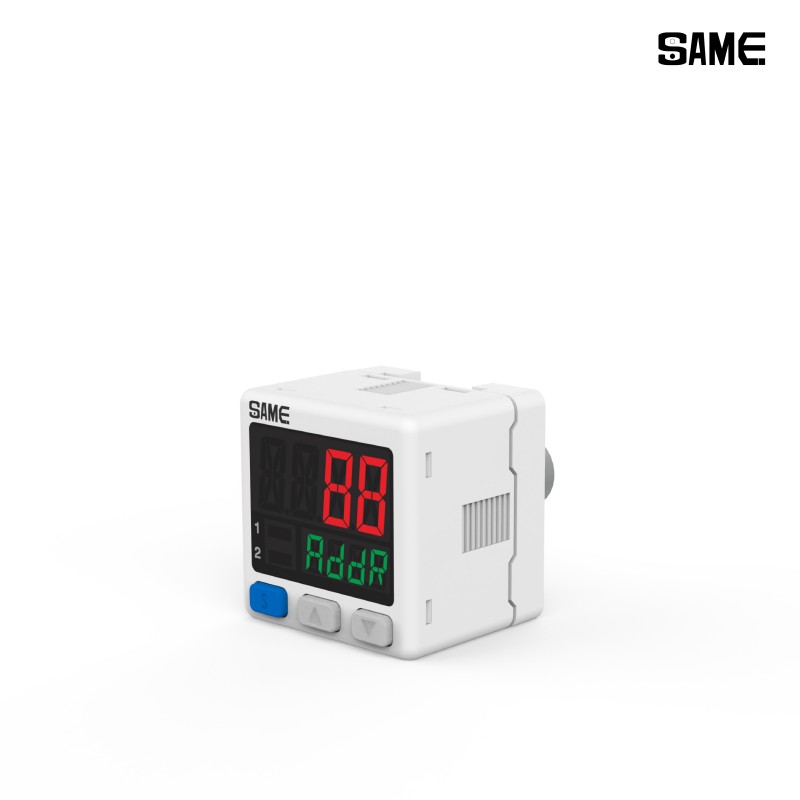

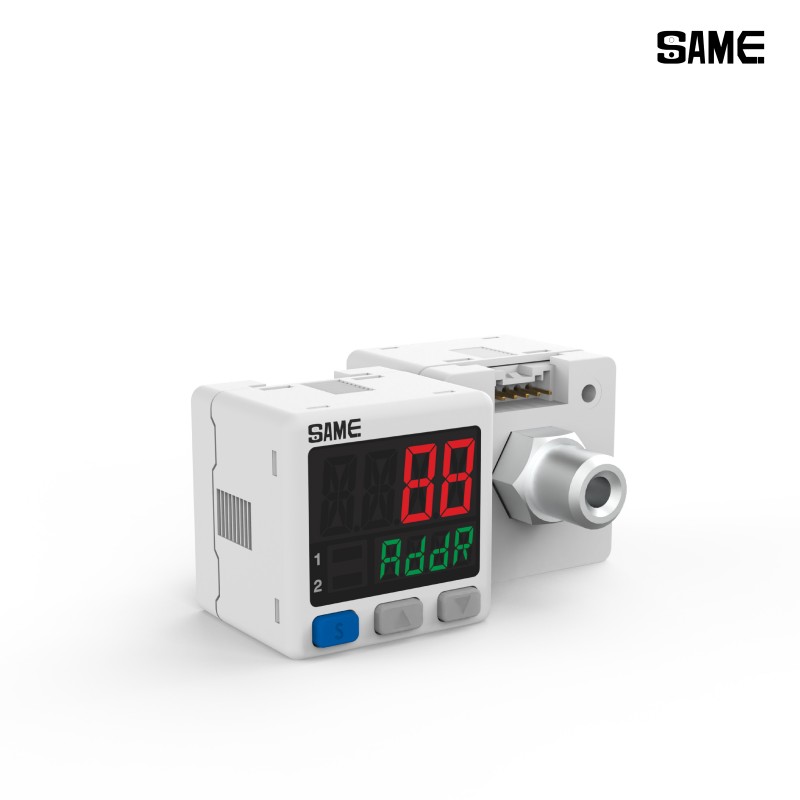

Featuring a clear dual-color LED display, ultra-fast switch output response, and integrated leak detection function, the SP-15 Series provides accurate pressure measurement and reliable control performance for pneumatic systems. The device supports 1-channel switch output combined with RS485 communication, allowing multiple units to be connected within industrial networks for efficient data management.
Product Series :
15: Communication TypeSignal Output Type :
030: 1-channel NPN + 1 set of RS485 communication | 031: 1-channel PNP + 1 set of RS485 communicationAir Pressure Input Range :
L: -10~10kPa (Small-range Model) | C: -101.3~101.3kPa (Low-pressure Model) | P: -0.101~1.000MPa (High-pressure Model)Air Pressure fitting Type :
R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbowDesigned explicitly for Industry 4.0 and smart manufacturing, the SP-15 Series Communication Digital Pressure Switch bridges the gap between local pneumatic control and the industrial internet. By supporting the standard MODBUS protocol, this advanced controller enables the seamless interconnection of up to 32 units, allowing central upper computers to perform remote reading, real-time monitoring, and quick configuration. Crucially, the SP-15 series retains 1-channel traditional switch output (NPN or PNP), ensuring comprehensive backward compatibility for local debugging and immediate threshold triggering in non-networked environments.

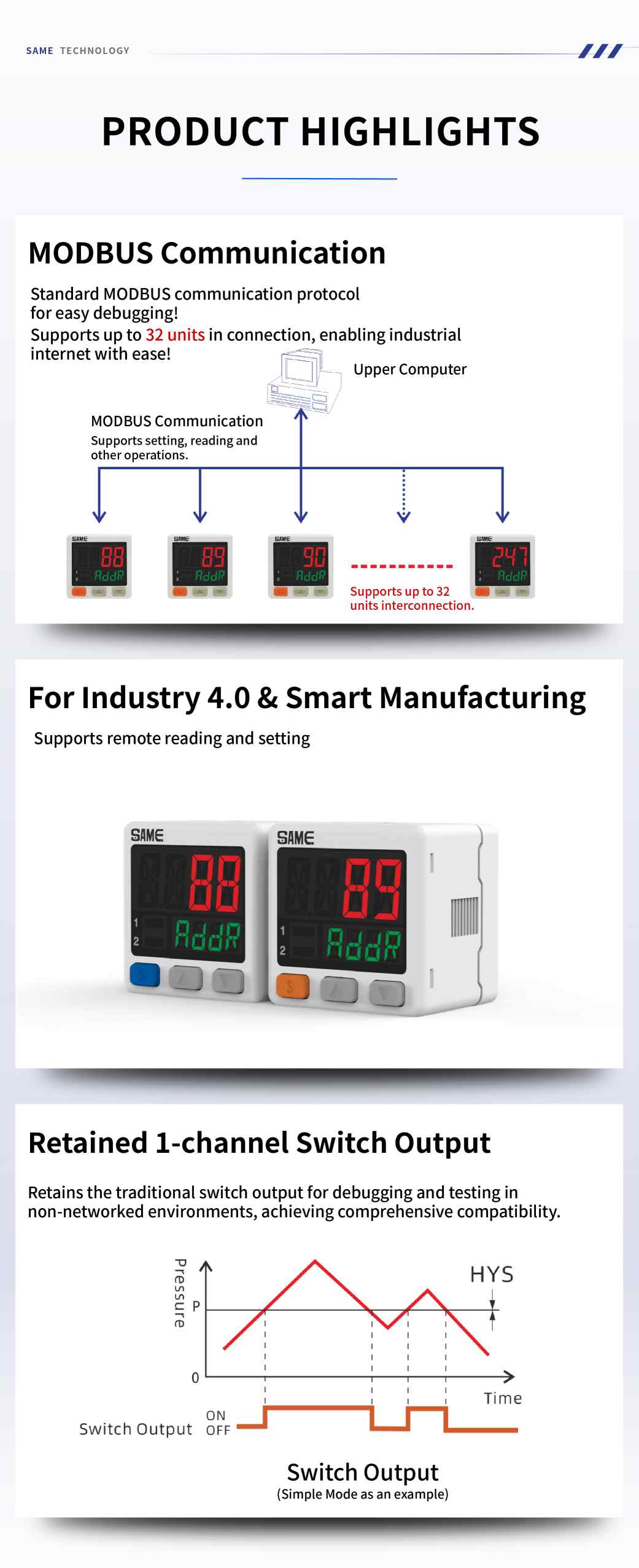

Features native RS485 integration supporting up to 32 units in a single daisy-chain connection. Simplifies industrial networking, data acquisition, and centralized parameter setting.
Uniquely retains 1-channel traditional discrete switch output alongside the communication bus, ensuring flawless operation and manual debugging during network downtimes or system transitions.
Incorporates exclusive algorithms for ultra-fast switch output response and integrated high-speed leak detection functions, pushing the limits of automated production efficiency.
Designed specifically for communication-heavy environments, the SP-15 series selection process focuses on defining your local switching preference alongside standard networking parameters:
| 1. Product Series Platform | 15 Series: Communication Type Digital Pressure Switch, built specifically for RS485 SCADA/PLC integration. |
| 2. Supported Pressure Range |
C: -101.3 ~ 101.3kPa (Low-pressure Model for vacuum and general air). P: -0.101~1.000MPa (High-pressure Model) |
| 3. Integrated Output Type | 030: Combines 1-channel NPN discrete output + 1 complete set of RS485 communication. 031: Combines 1-channel PNP discrete output + 1 complete set of RS485 communication. |

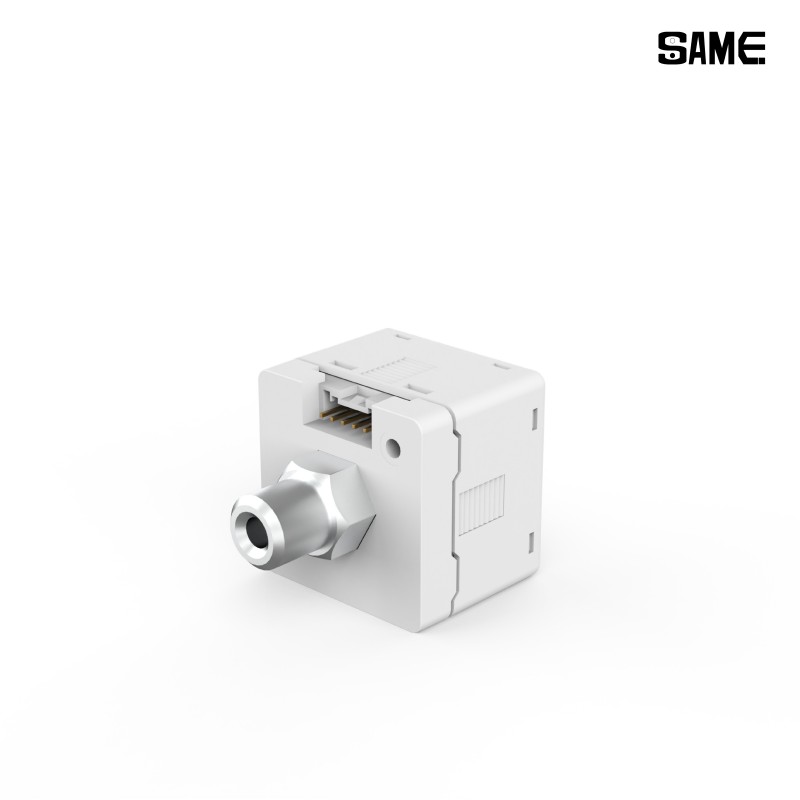

| 4. Air Pressure Fitting Options | Threaded: Internal M5 + external R1/8 fitting adapter (R). Straight Push-in: 4mm (C4H) or 6mm (C6H) straight air tube fittings. Elbow Push-in: 4mm (C4L) or 6mm (C6L) right-angle elbow air tube fittings for restricted depth panels. |

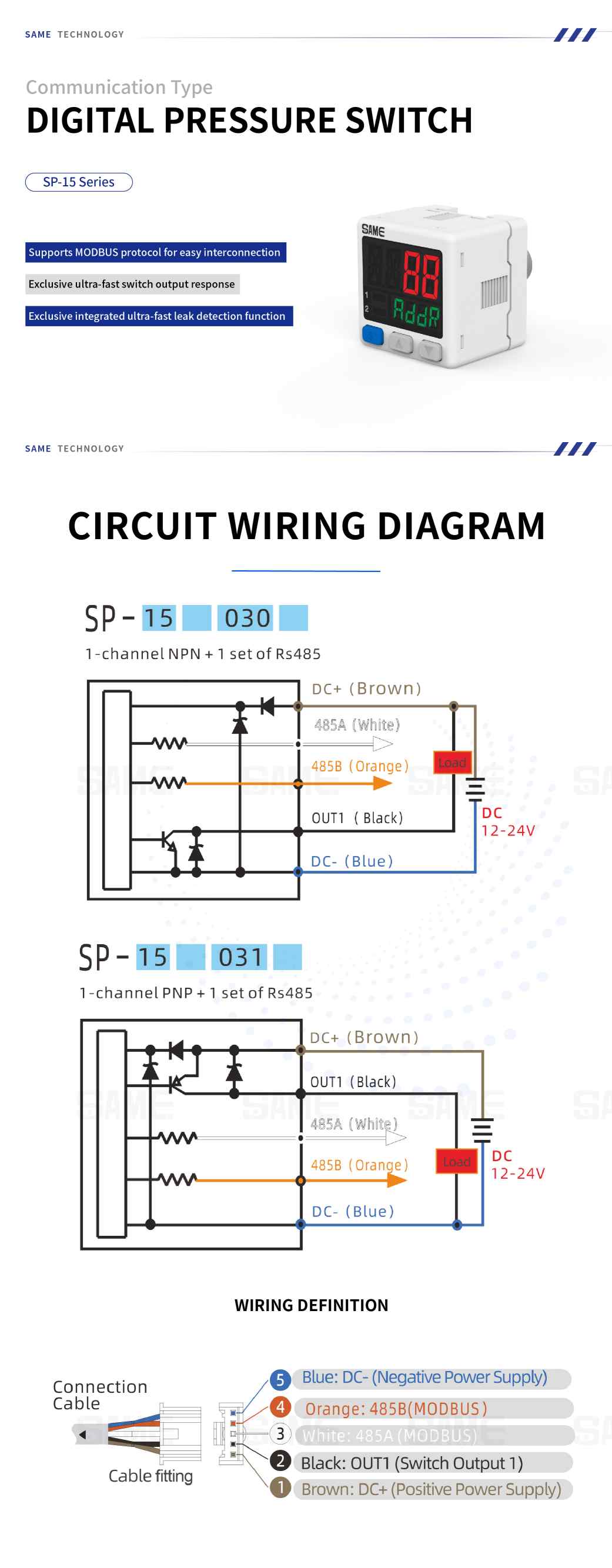

Network topology relies on correct RS485 polarization. Ensure the White wire (485A) and Orange wire (485B) are consistently routed throughout your daisy chain to guarantee stable remote reading and setting from the upper computer.

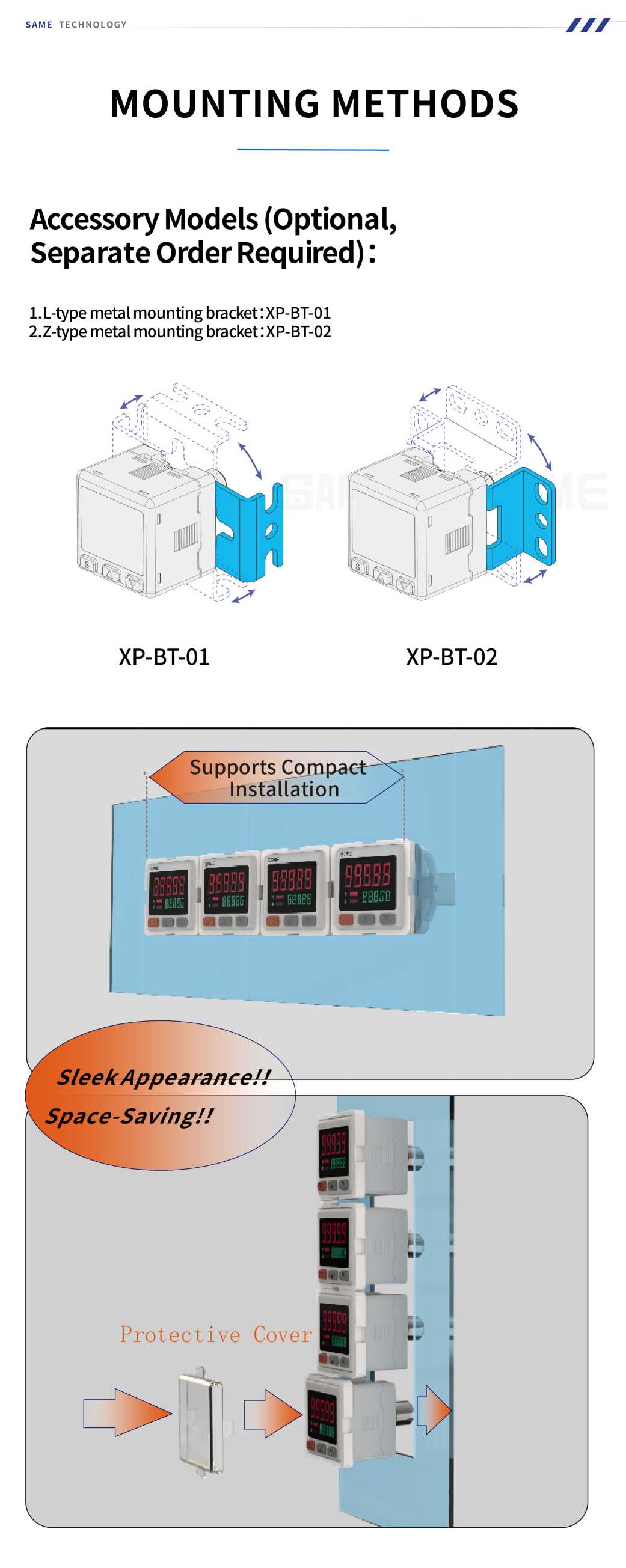

Wiring Definitions & Bracket Accessories:
The SP-15 eliminates the barrier between localized fluid mechanics and enterprise-wide data lakes, proving vital for expansive, data-driven factory floors:
A: Using the standard MODBUS RS485 protocol, you can reliably interconnect up to 32 units on a single daisy-chain bus back to your upper computer or PLC.
A: Retaining the 1-channel switch output ensures comprehensive compatibility. It provides a failsafe hardware trigger for critical machine actions, and allows for manual debugging and testing even if the industrial internet network is down.
A: Absolutely. The MODBUS protocol fully supports remote reading of real-time metrics, as well as remote configuration of setpoints and parameters directly from your control center software.
