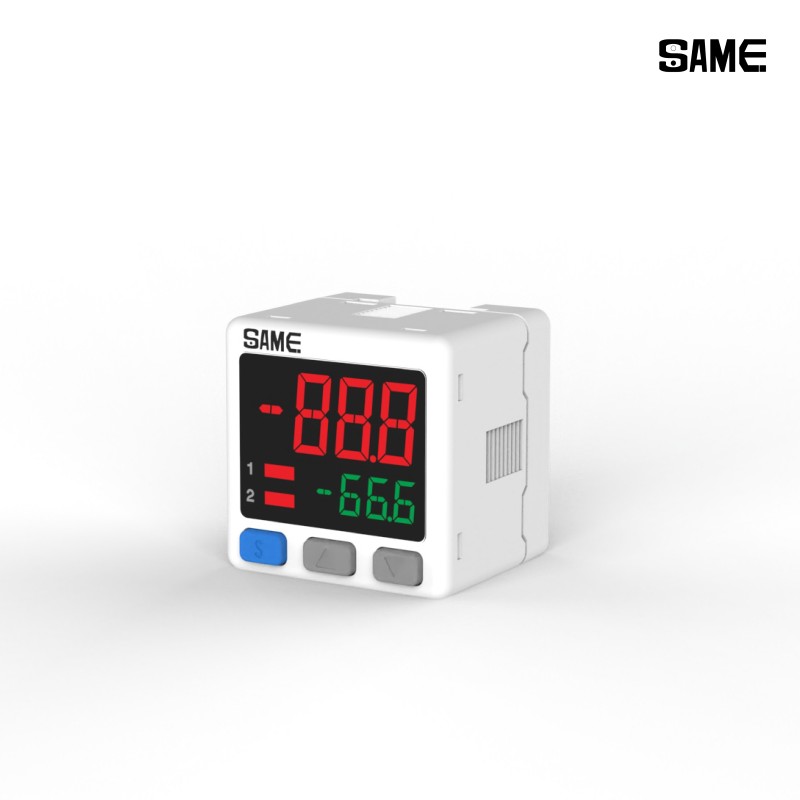

SP-10 Series Digital Pressure Switch is a high-performance electronic pressure control device designed for pneumatic automation systems and industrial pressure monitoring applications. Featuring a three-color dual-screen LED display, high-speed response, and multi-function output options, it provides accurate pressure measurement and reliable control performance.
Product Series :
10: Standard TypeSignal Output Type :
010: 2-channel NPN +1-channel analog voltage output | 020: 2-channel PNP + 1-channel analog voltage output | 011: 2-channel NPN + 1-channel analog current output | 021: 2-channel PNP + 1-channel analog current outputAir Pressure Input Range :
L: -10~10kPa (Small-range Model) | C: -101.3~101.3kPa (Low-pressure Model) | P: -0.101~1.000MPa (High-pressure Model)Air Pressure fitting Type :
R: Internal M5 + external R1/8 fitting | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fitting right-angle elbowEngineered for maximum operational agility, the SP-10 Series Standard Digital Pressure Switch stands as a high-performance cornerstone for modern industrial automation. Distinguished by its full-function architecture, this series introduces an industry-leading SUPERSPEED mode that achieves a 1-millisecond maximum response time, perfectly catering to high-speed placement machines and demanding robotics. By integrating a robust three-channel output system (2-channel switch + 1-channel analog), the SP-10 significantly optimizes procurement efficiency and warehouse management, acting as a universal solution for diverse, high-frequency pneumatic control scenarios.
Achieves the fastest reaction in the industry with a maximum switch response speed of only 1 millisecond. Designed specifically for high-speed SMT machines and rapid cyclic equipment.

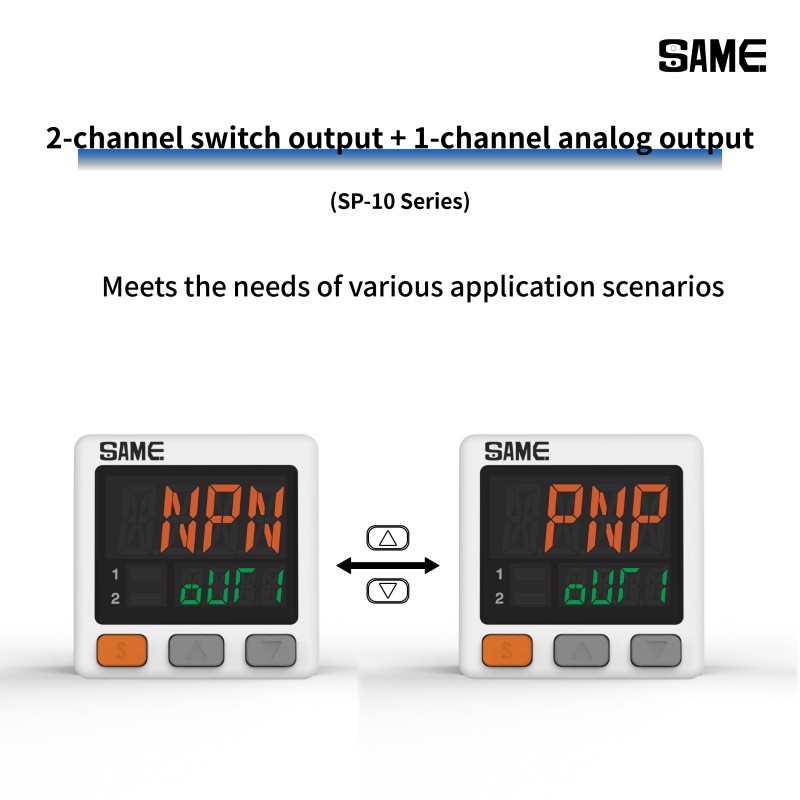

Combines 2-channel discrete switch output (NPN/PNP) with 1-channel continuous analog output (voltage or current) in a single standard component to meet various scenario needs.
Features a vibrant three-color dual-screen display supplemented with dedicated characters and icons, ensuring critical system information is effortlessly read at a glance.
The SP-10 Standard Series consolidates high-performance features into a unified platform. Select your precise input range and output specifications below to perfectly align with your control cabinet architecture:
| 1. Product Series Platform | 10 Series: Standard Type Digital Pressure Switch, an all-in-one universal component built to streamline purchasing and warehouse inventory for comprehensive automation projects. |
| 2. Dynamic Measurement Range | Low-Pressure Span (C): -101.3 ~ 101.3kPa, ideal for standard vacuum loops and positive air pressure lines. High-Pressure Span (P): -0.101 ~ 1.000MPa, engineered to withstand heavy-duty compressed air and robust fluid applications. Small-Range Micro (L): -10 ~ 10kPa, specifically calibrated for ultra-sensitive environmental differential monitoring and cleanroom controls. |
| 3. Tri-Channel Output Configurations | Voltage Feedback Networks (010 / 020): Features 2-channel discrete switching (NPN or PNP) coupled with 1-channel continuous analog voltage output for immediate local logic and real-time SCADA tracking. Current Transmission Networks (011 / 021): Provides 2-channel discrete switching (NPN or PNP) alongside a 1-channel analog current output, ensuring interference-free data transmission over extended cable runs. |
| 4. Piping & Connection Flexibility | Threaded Integration (R): Combines an internal M5 thread with an external R1/8 adapter for robust, traditional pneumatic block installations. Quick-Connect Tubes (C4/C6): Direct push-in fittings for 4mm (C4H/C4L) or 6mm (C6H/C6L) air hoses. Available in both straight and right-angle elbow orientations to navigate confined panel spaces efficiently. |
The SP-10 standardizes procurement by including three-channel outputs natively. Ensure proper routing of the analog signal wire (Orange) to your PLC or data acquisition module to leverage continuous pressure telemetry alongside rapid switching.

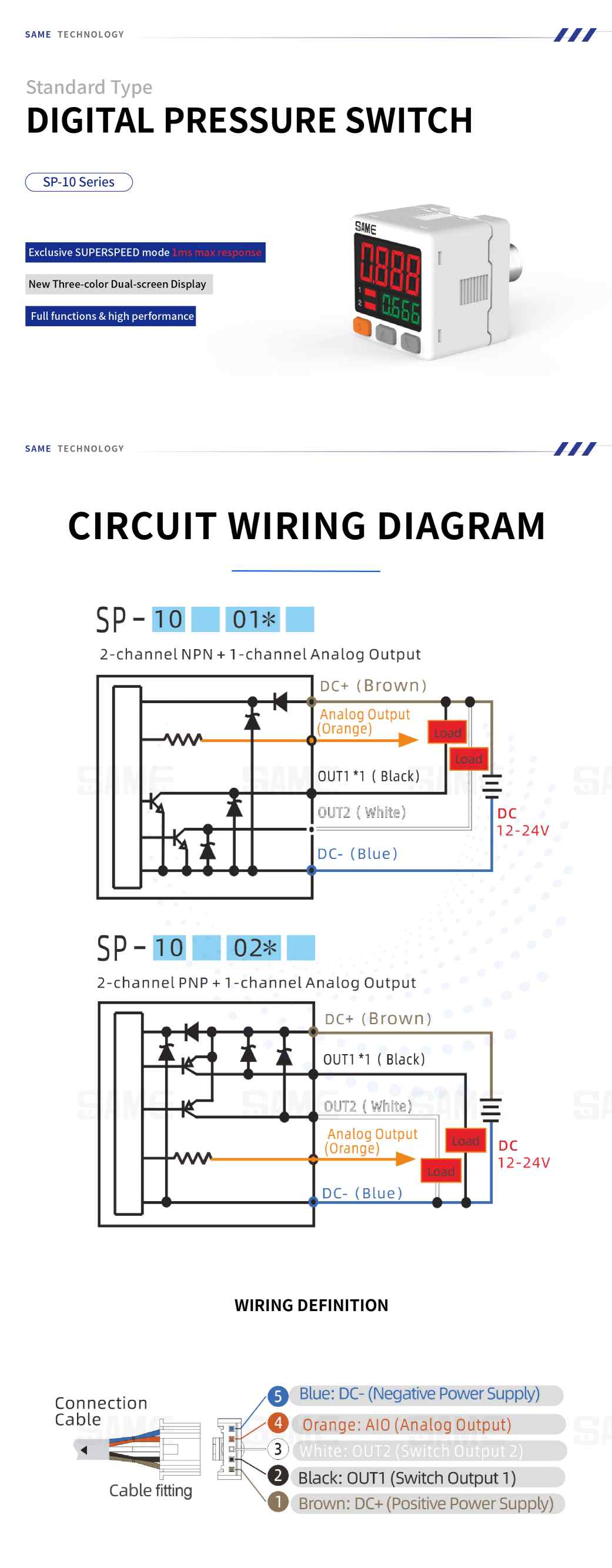

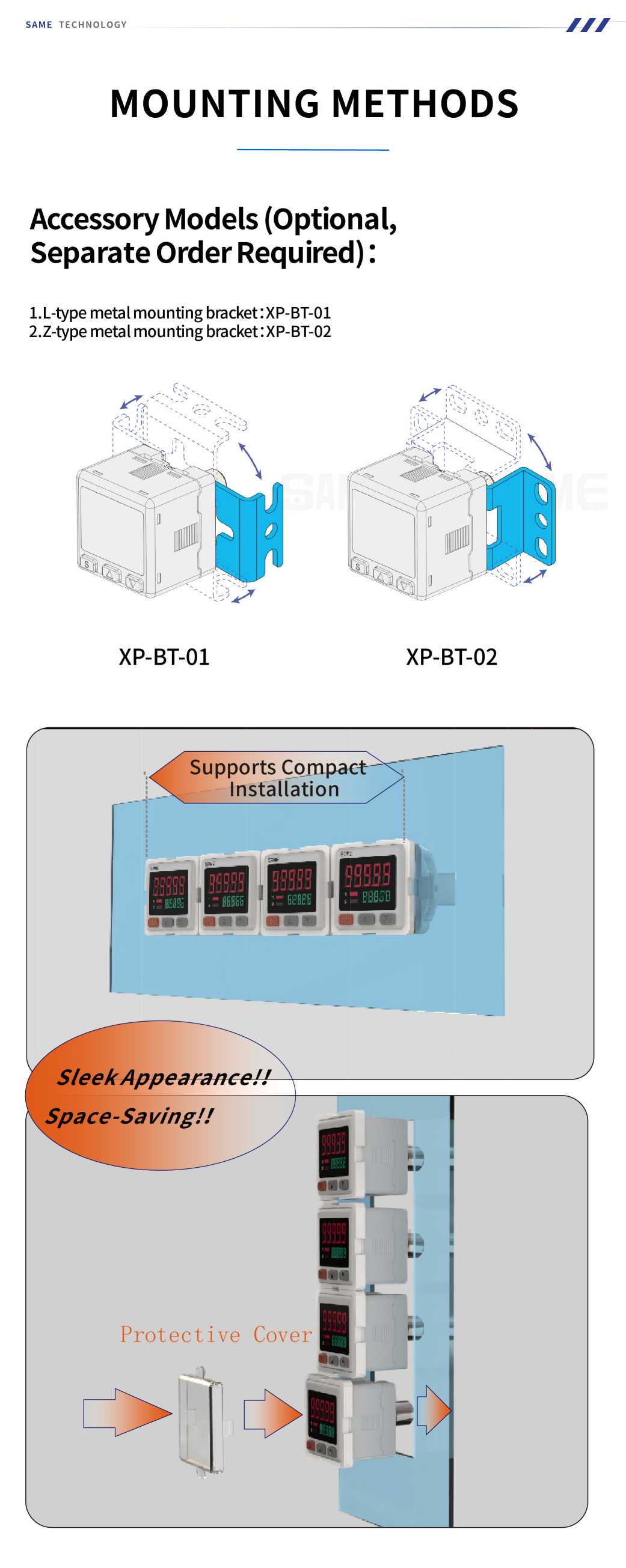

Wiring Definitions & Bracket Accessories:
Built to outpace standard monitoring delays, the SP-10 thrives in cutting-edge manufacturing lines where every millisecond dictates production yield and product quality:

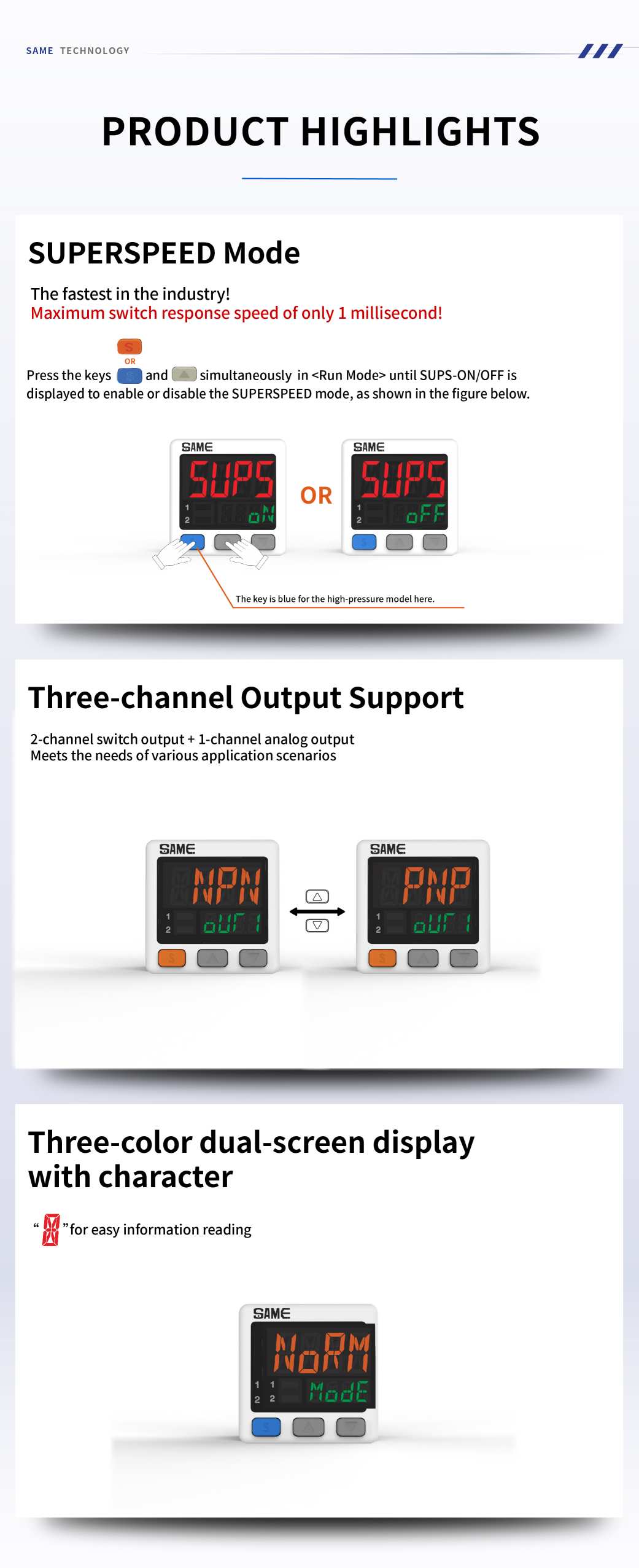

A: In , press and hold the 'S' key and the 'Up' arrow key simultaneously until "SUPS-ON" or "SUPS-OFF" is displayed on the screen. This allows you to toggle the industry's fastest response mode effortlessly.
A: By combining 2-channel discrete outputs with 1-channel analog output natively, the SP-10 eliminates the need to purchase different switch variants for different machines. This standardization greatly simplifies procurement and warehouse management.
A: The "L" code represents the Small-range Model, which operates between -10 and 10kPa. It is engineered with heightened sensitivity for extremely precise micro-pressure monitoring applications.
