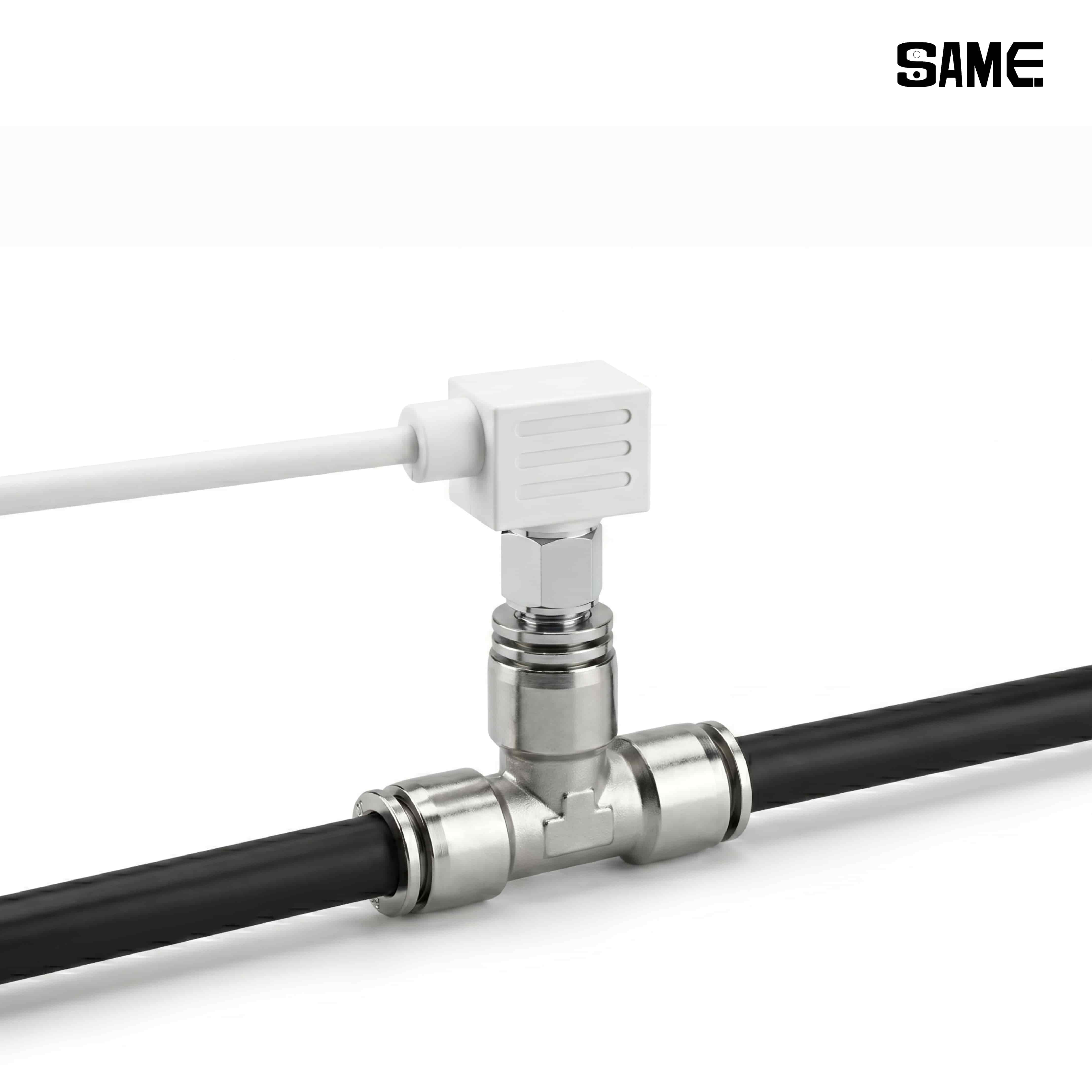

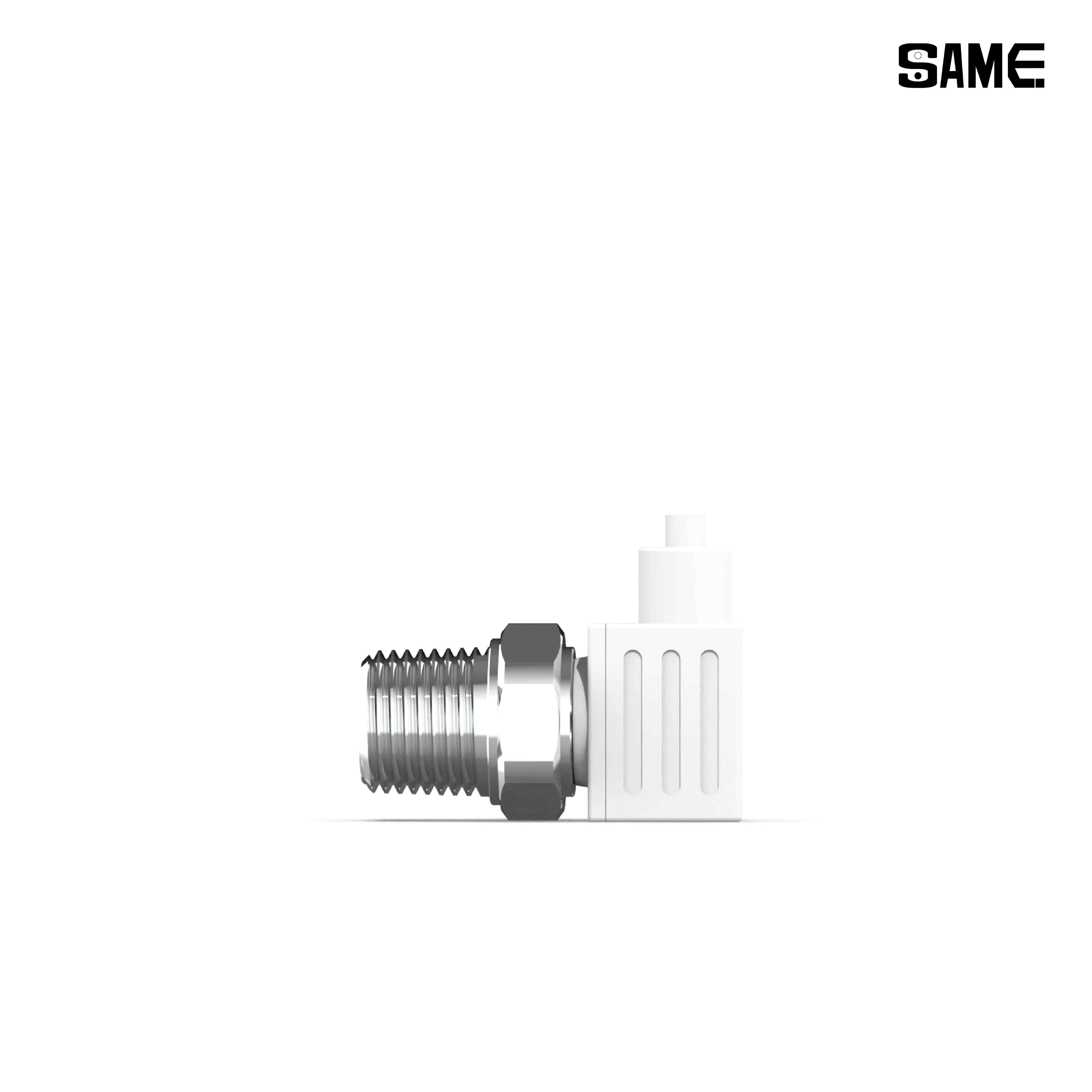

The SP-42 Series Miniature Pressure Transmitter is an ultra-compact and ultra-lightweight solution designed for continuous and precise pressure monitoring. It features a standardized 1~5V analog voltage output, making system connection and data acquisition incredibly straightforward. Engineered for deep integration, it is perfectly suited for direct sucker mounting and supports direct connection with SCP controllers for highly flexible operations. Offering premium cost-performance as a reliable alternative to imported brands, it is the ideal choice for robotic vacuum handling, medical devices, and automated packaging machinery.
Product Series :
42: Miniature Pressure TransmitterAir Pressure Input Range :
C: -100~100 kPa (Mixed pressure) | P: 0~1.0 MPa (Positive pressure) | V: -101~0 kPa (Negative pressure)Air Pressure fitting Type :

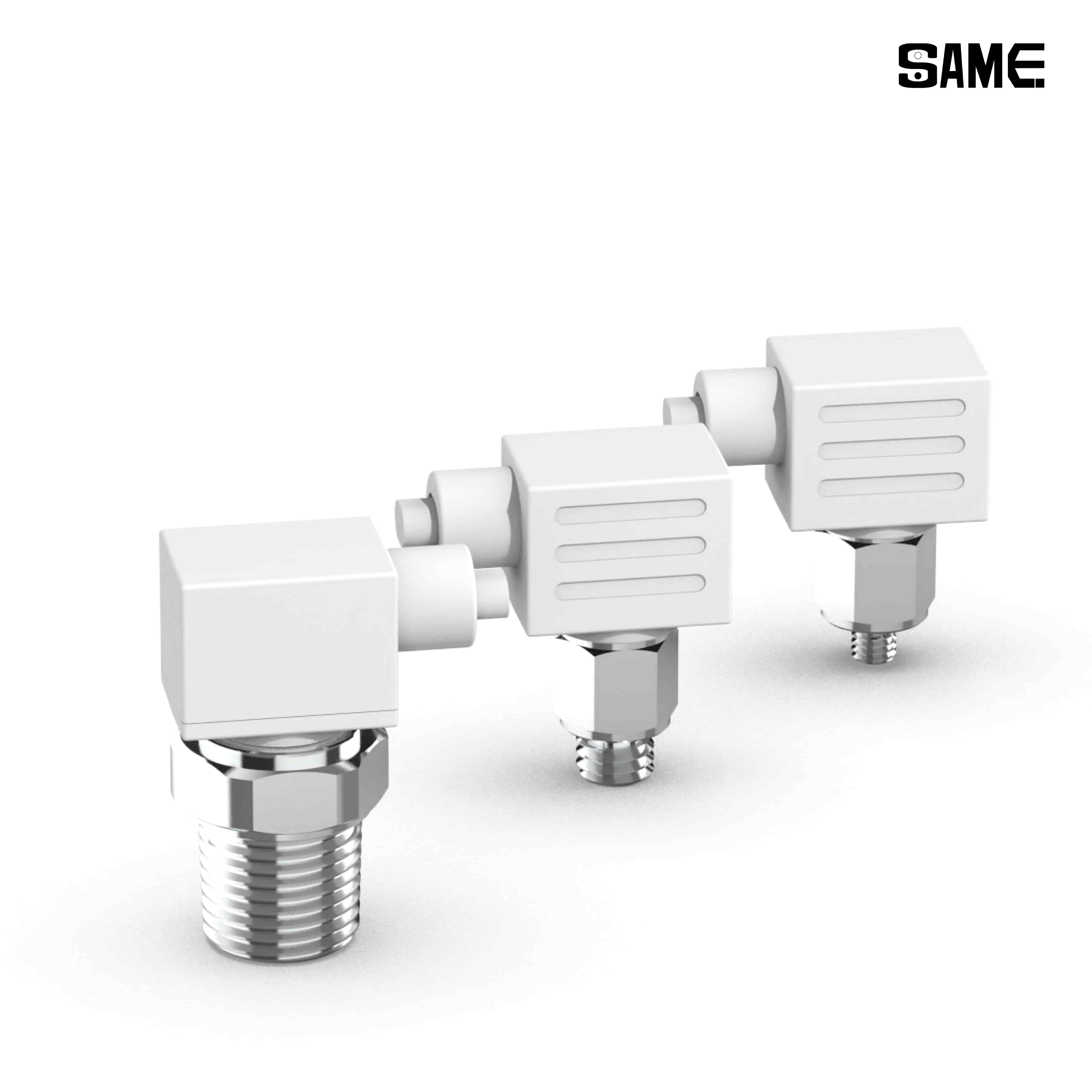

R: External R1/8 + Internal M5 | R04: Φ4 Reducer | R06: Φ6 Reducer | M3: M3×0.5 | M5: M5×0.8 | IM5: M5 female thread through (with mounting hole)Options :
Blank: No fitting | C2: Equipped with E-CON sensor fittingThe SP-42 Series Miniature Pressure Transmitter provides an ultra-compact and ultra-lightweight solution for continuous and accurate pressure monitoring. Designed to output a standard 1~5V analog voltage for easy connection, it is standardized for seamless integration and direct sucker mounting. As a top cost-performance domestic alternative to imported brands, the SP-42 can be directly connected with SCP controllers for highly flexible use in demanding pneumatic systems.

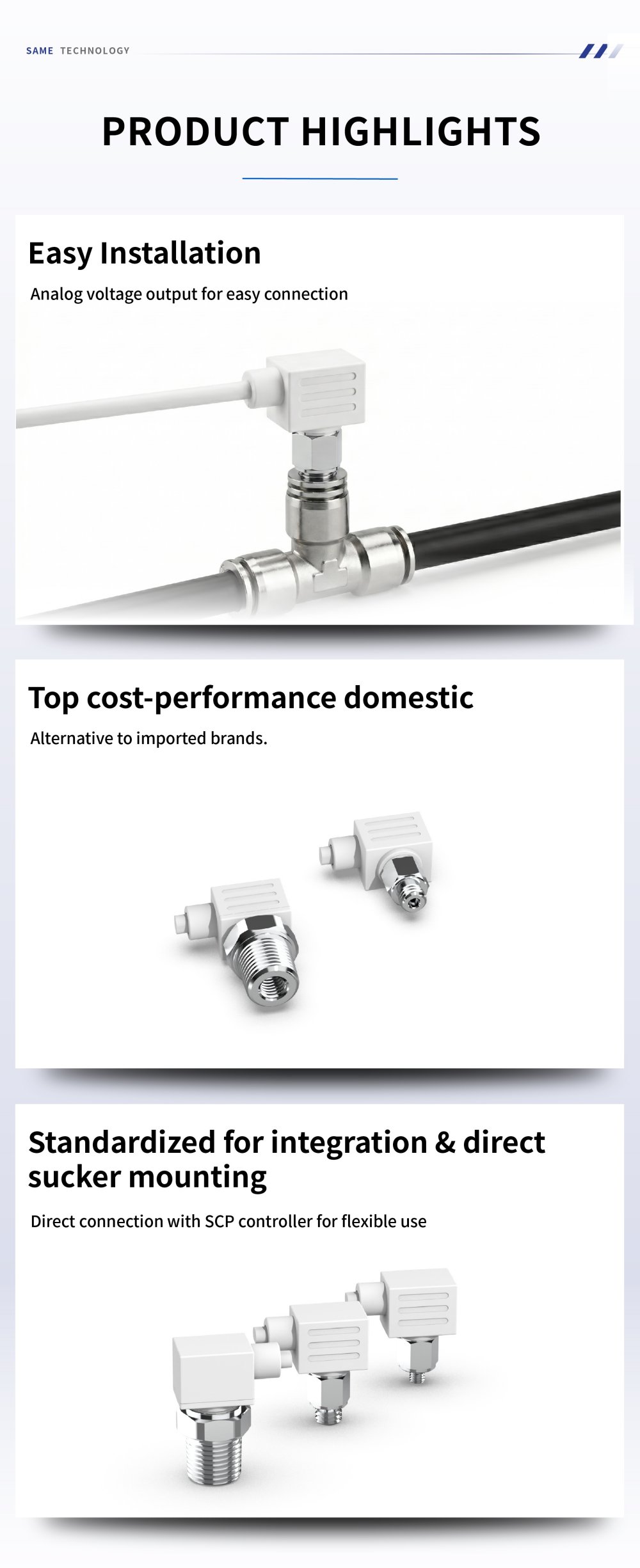

Ultra-lightweight footprint standardized for deep integration into tight spaces and direct sucker mounting setups.
Features a straightforward 1~5V analog voltage output, making system connection and data acquisition incredibly easy.
Delivers top-tier domestic performance, serving as an ideal, cost-effective alternative to expensive imported sensor brands.
| Model | SP-42P | SP-42V | SP-42C | |
| Rated Pressure Range | 0~1.0MPa | 0~-101kPa | -100~100kPa | |
| Withstand Pressure | 1.5MPa | 500kPa | ||
| Electrical Specs | Power Supply Voltage | 12-24V DC (Ripple p-p ≤10%) | ||
| Current Consumption | 15mA or less | |||
| Output Spec. | Analog Output 1~5V (Impedance approx. 1kΩ) | |||
| Accuracy | ±2% F.S. (at 25°C ambient temp.) | |||
| Linearity / Repeatability | ±0.7% F.S. or less / ±0.2% F.S. | |||
| Operating Temp. Range | 0~50°C (no condensation, no freezing) | |||
| Protection Grade | IP40 | |||
| 1. Product Series | 2. Air Pressure Input Range | 3. Air Pressure Fitting Type | 4. Options |
|---|---|---|---|
| SP-42: Miniature Pressure Transmitter |
C: -100~100kPa (Mixed pressure) P: 0~1.0MPa (Positive pressure) V: -101~0kPa (Negative pressure) |

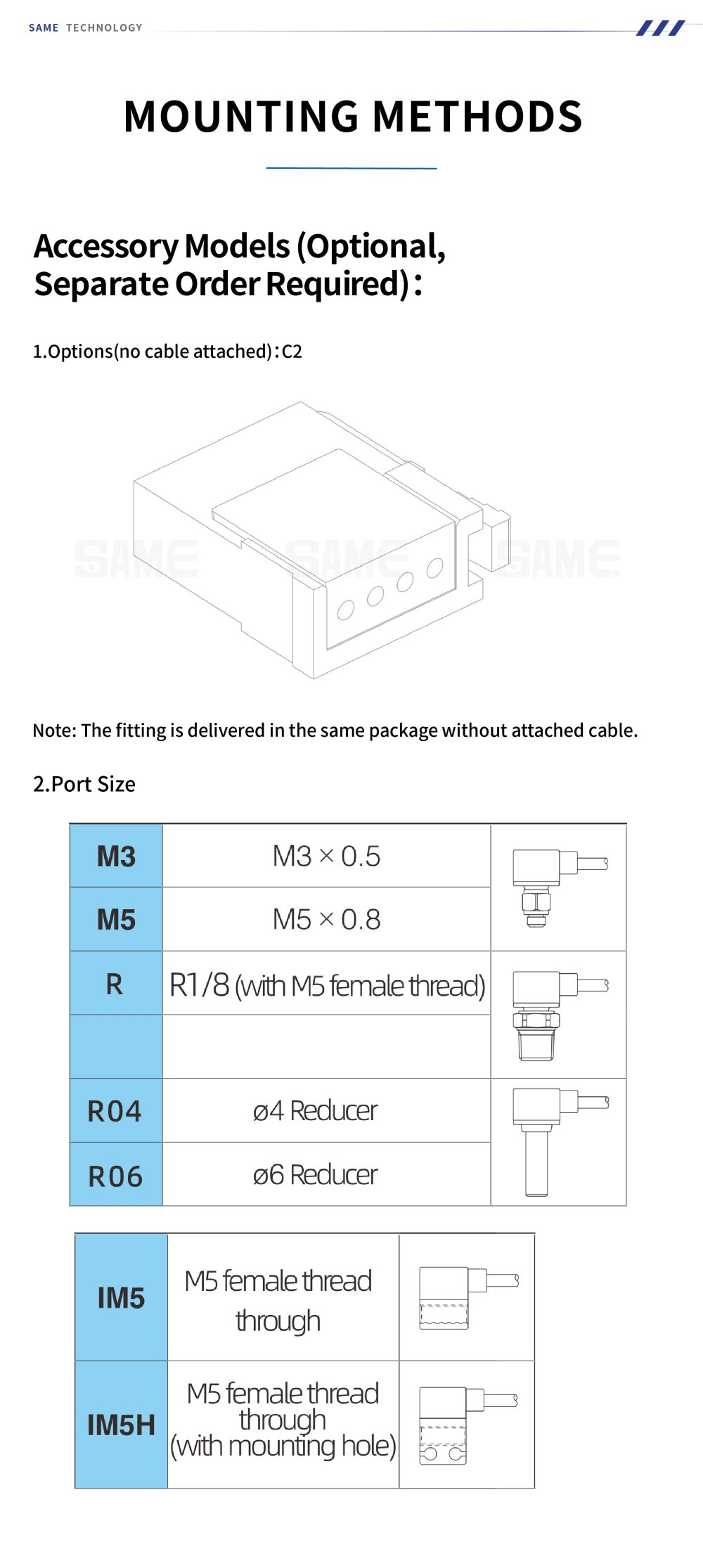

M3: M3 × 0.5 M5: M5 × 0.8 R: External R1/8 + Internal M5 R04 / R06: Φ4 / Φ6 Reducer IM5 / IM5H: M5 female thread through (with/without mounting hole) |
Blank: No fitting (standard cable) C2: Equipped with E-CON sensor fitting (delivered in same package without attached cable) |
Example Ordering Code: SP-42 P R04 C2

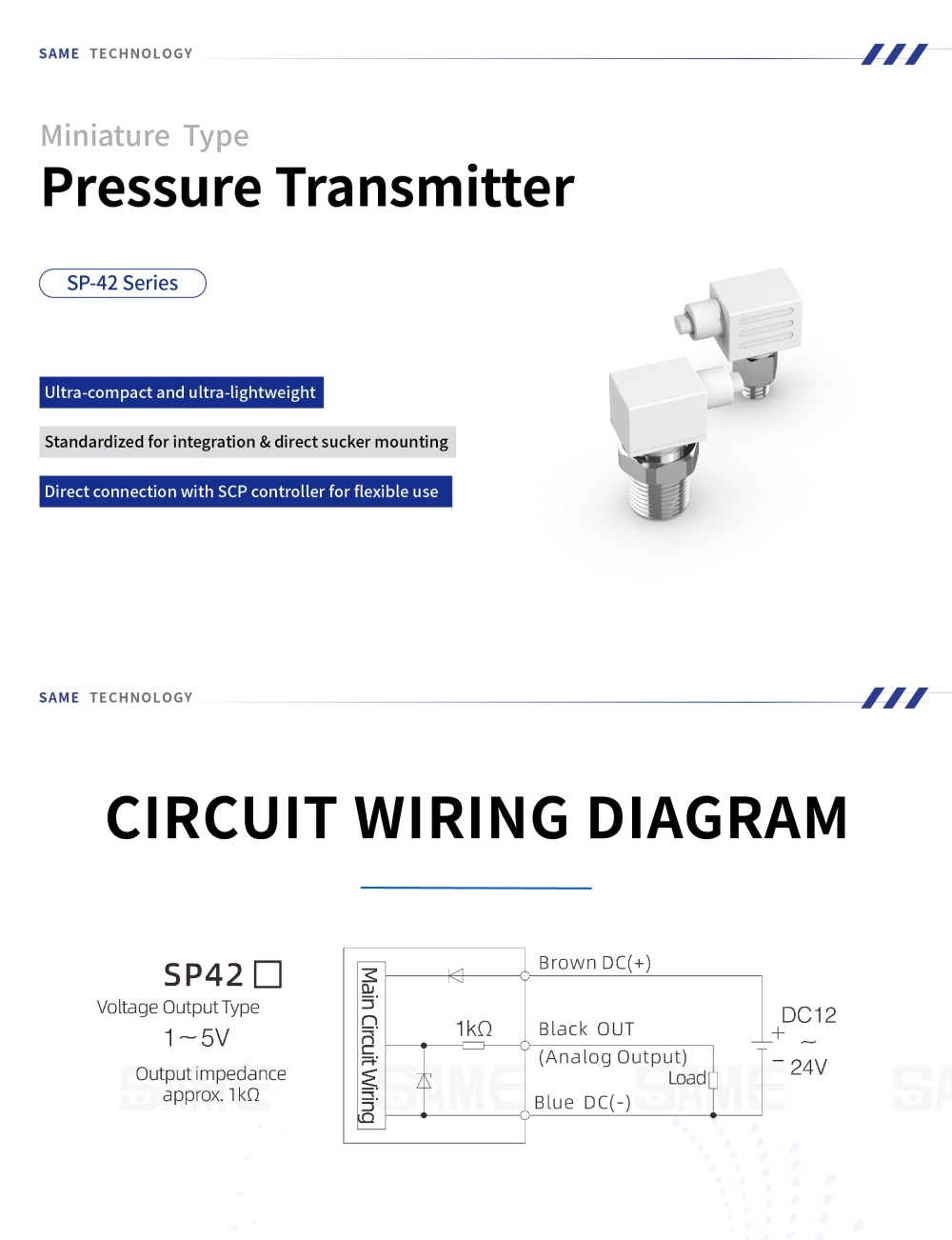

The SP-42 Transmitter features a straightforward 3-wire analog output configuration [Brown DC(+), Black OUT, Blue DC(-)]. Depending on the selected option, it can be ordered with standard attached cabling or an E-CON fitting (C2 option) for fast plugin configurations. Multiple port sizes (from M3 to R1/8 and Reducers) ensure compatibility with nearly any manifold or suction pad.
