The Digital Air Pressure Controller is a compact and intelligent pressure control device designed for precise air pressure monitoring and control in industrial automation systems. It integrates pressure detection, digital display, and control output functions to provide reliable solutions for pneumatic equipment and factory automation applications.
Product Series :
01: Economical TypeSignal Output Type :
001: 1-channel NPN output | 005: 1-channel NPN + 1-channel PNP output | 002: 1-channel PNP output | 009: 1-channel NPN + 1-channel adjustable analog voltage output*1Air Pressure Input Range :
C:-101.3~101.3kPa(Low pressure type) | P:-0.101~1.000MPa(High pressure type)Air Pressure fitting Type :
M: M5 Spec. female thread | R: Internal M5 + external R1/8 fitting*2 | C4H: Straight 4mm air tube fitting straight type | C6H: Straight 6mm air tube fitting straight type | C4L: Straight 4mm air tube fitting right-angle elbow | C6L: Straight 6mm air tube fittiCustom Specification Type :

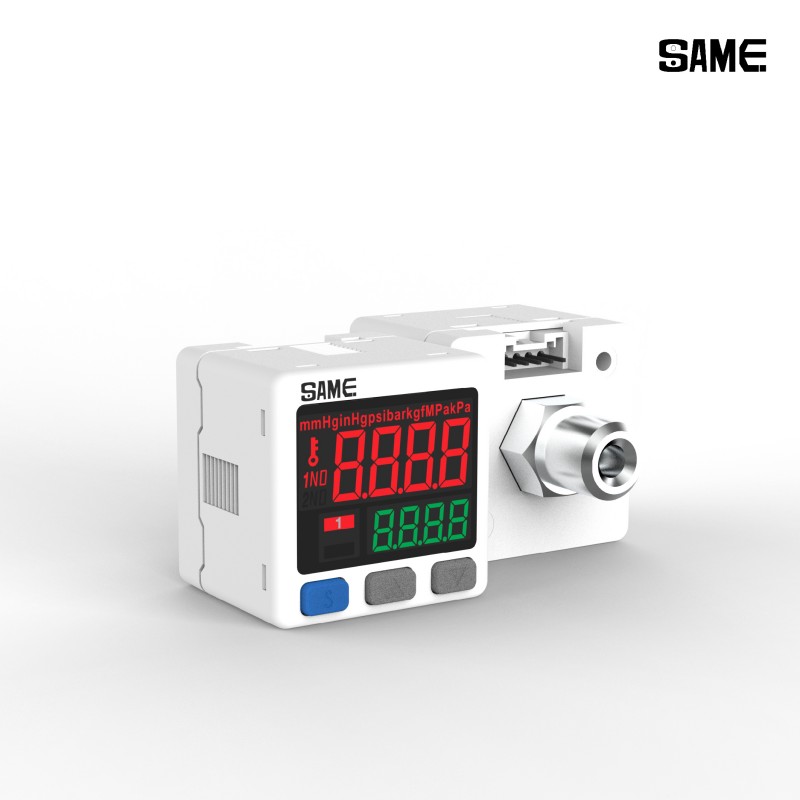

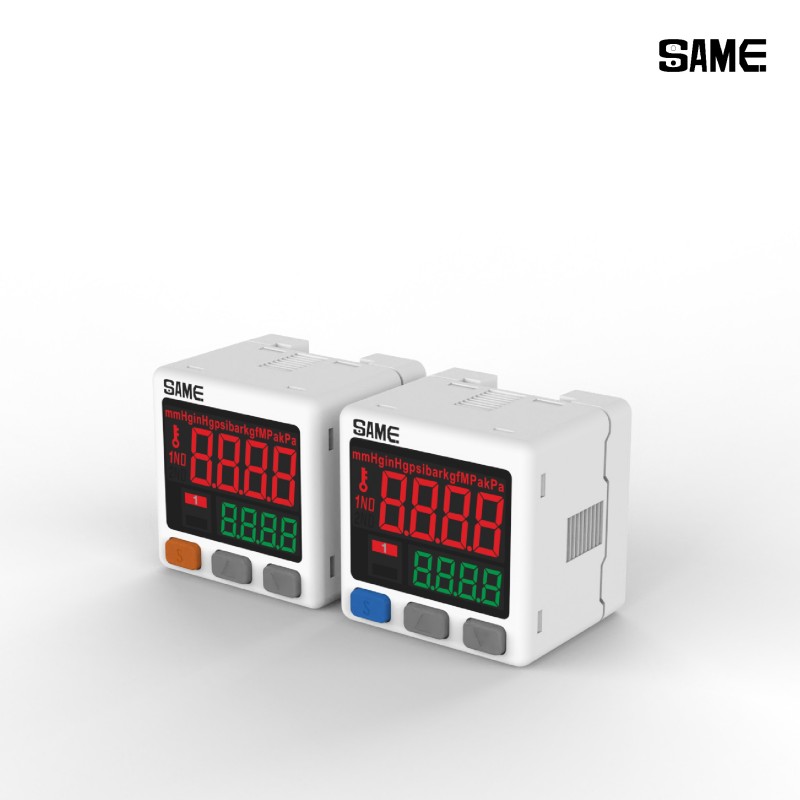

Blank: Standard type without customization | T: Custom 2-channel switch output (NPN or PNP)*3 | M: Custom dual air nozzlesCrafted for high efficiency in light industrial systems, the SP-01 Series Economical Type Digital Pressure Switch delivers exceptional performance with a streamlined, cost-effective architecture. Designed to minimize spatial footprints, the Suffix M version achieves a remarkable 38% weight reduction and a 12.5mm space-saving profile. Featuring an integrated keypad lock indicator to protect against accidental changes, clear unit display functions, and reliable NPN/PNP output options, this digital controller ensures precise pneumatic monitoring and simplified device configuration.

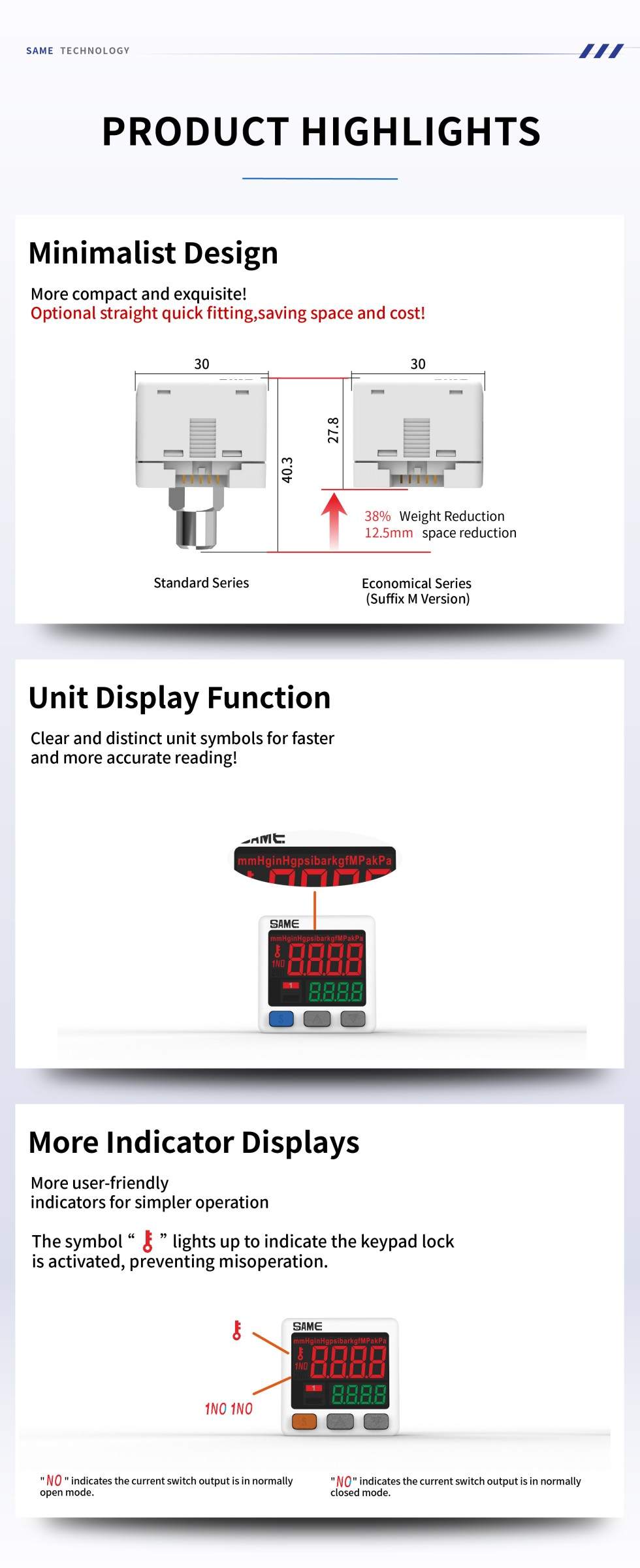

Exquisitely compact design supporting optional straight quick fittings. Reduces equipment weight and cabinet space constraints efficiently.

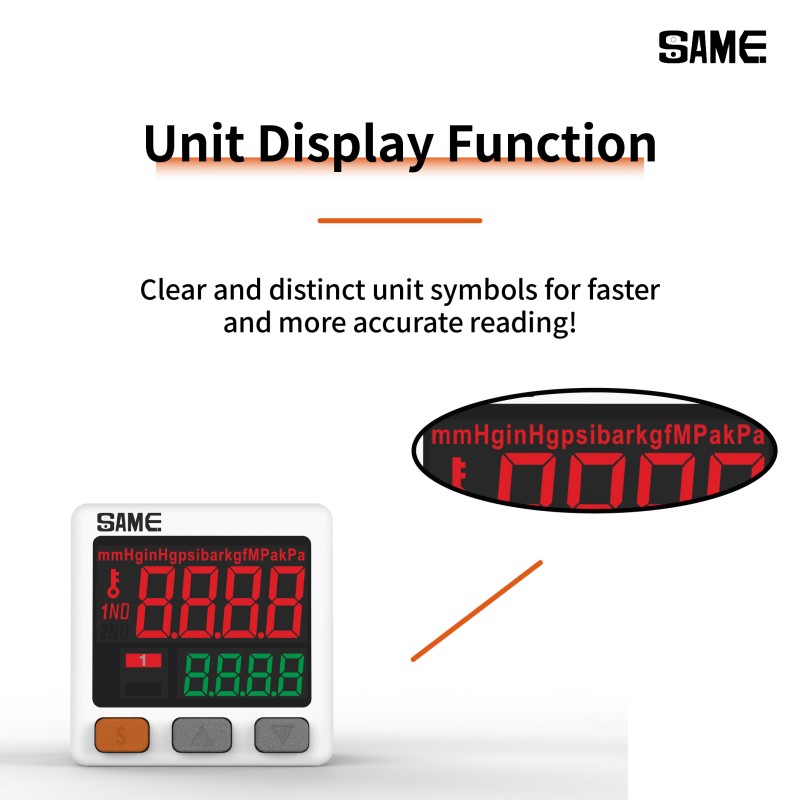

Clear and distinct unit symbols (MPa, kPa, psi, bar, kgf/cm², mmHg, inHg) illuminate for faster and more precise readouts during operation.
Includes a dedicated key lock icon indicator to prevent misoperation, alongside clear normal open (NO) and normal closed status flags.
To accommodate diverse fluid and gas control environments, the SP-01 economical pressure switch series provides scalable options covering pressure spans, electrical outputs, and mechanical connection formats:
| Series Designation | 01 Base Platform: Engineered specifically as an economic digital pressure switch platform, combining high-speed microcontroller logic with dependable solid-state switching mechanics for long-term operational stability. |
| Input Pressure Spans | Low-Pressure Span (C Code): Calibrated for vacuum and low-range pneumatic regulation across a span of -101.3 to 101.3kPa. High-Pressure Span (P Code): Designed for heavy-duty compressed air and fluid lines operating between -0.101 and 1.000MPa. |

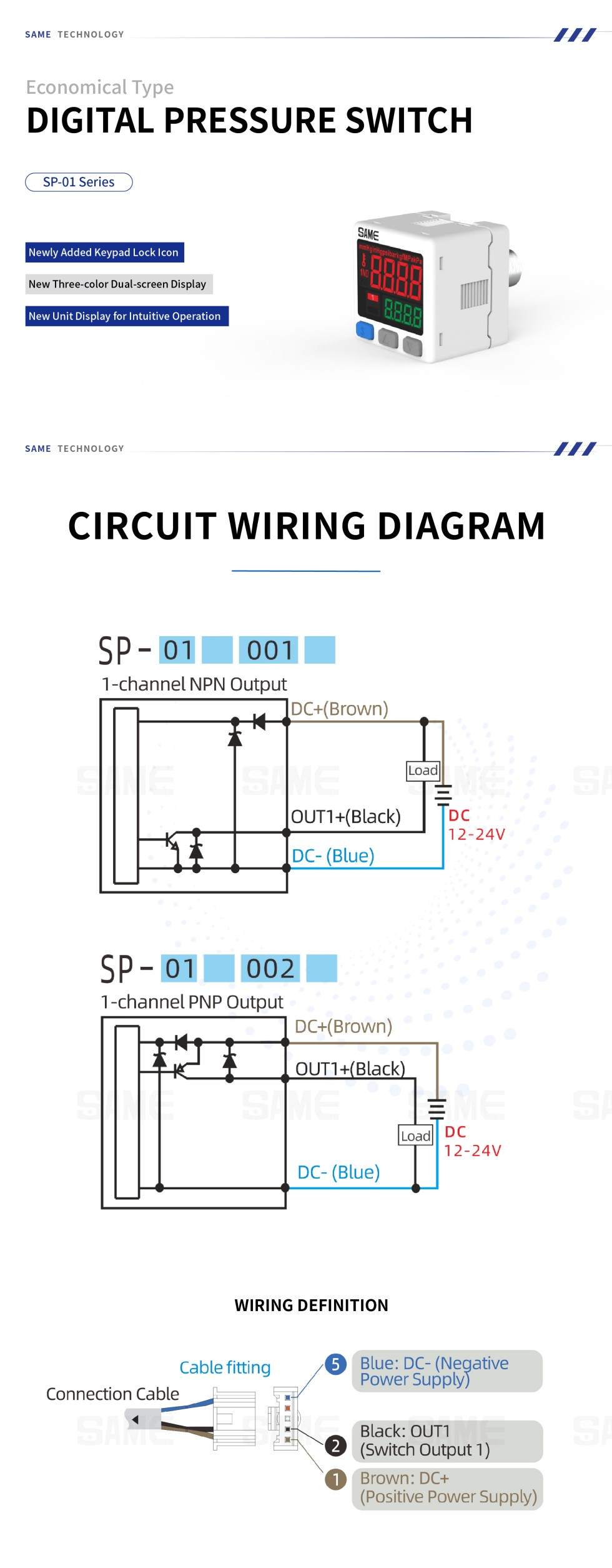

| Output Signal Options | Discrete Switching (001 / 002): Single-channel NPN or PNP configurations for direct load control. Dual Output Architecture (005): Combined 1-channel NPN plus 1-channel PNP layout to support complex multi-stage interlocks. Analog Integrated Version (009): Features 1-channel NPN output paired with an adjustable analog voltage output for continuous system telemetry. |
| Port & Fitting Interfaces | Threaded Options: Standard M5 female threads (M) or hybrid Internal M5 with external R1/8 adapters (R). Push-in Tube Fittings: Direct 4mm (C4H/C4L) or 6mm (C6H/C6L) air tube ports available in both straight and right-angle elbow orientations for streamlined cable and tubing management. |
| Customization Levels | Standard Build (Blank): Ready-to-deploy off-the-shelf specification. Specialized Variants (T / M): Tailored options including custom dual-channel switch outputs or custom dual air nozzles to fit proprietary OEM machinery frameworks. |
Accessory Models (Optional, Separate Order Required):
Offering high-speed reaction times and dependable pressure tracking, the SP-01 series seamlessly integrates into automated production environments and equipment setups:
A: The Suffix M version is optimized for high-density control panels, achieving a 38% weight reduction and a 12.5mm space saving while accommodating optional straight quick fittings.
A: It features a built-in keypad lock function. When activated, a dedicated key symbol illuminates on the screen to prevent unintended operator adjustments.

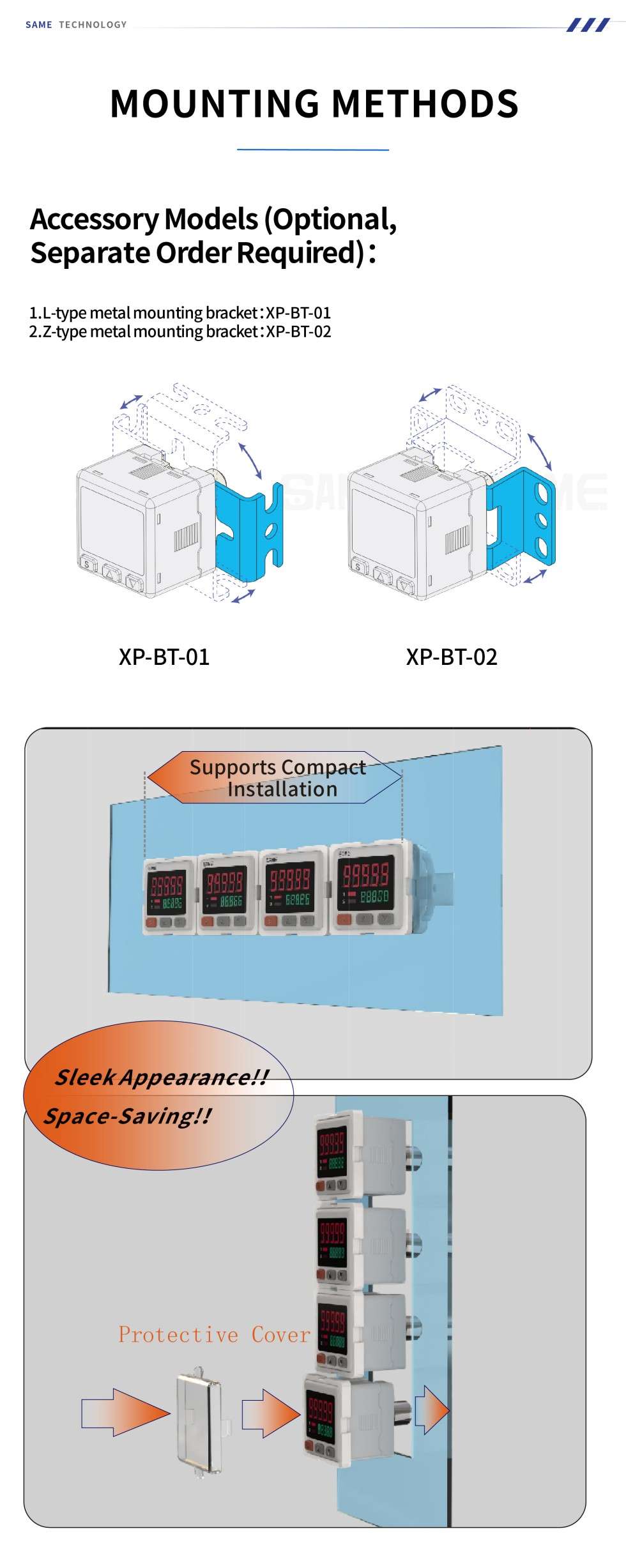

A: No, accessory items such as the XP-BT-01 (L-type) and XP-BT-02 (Z-type) metal mounting brackets or XP-PA-01 panel brackets require separate orders.
